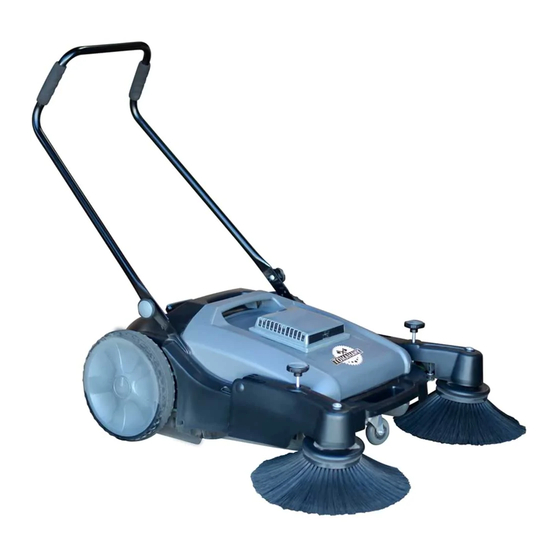

- Page 1 TOS38 38” PUSH SWEEPER Operation Manual...
-
Page 2: Table Of Contents
Table of Contents About these Instructions Safety Instructions Instructions for Use Assembly Operation Maintenance and Troubleshooting Specifications Warranty 2 / 12... -
Page 4: About These Instructions
I. About These Instructions 1.1 Technical further development We are continuously working on further development of all our products. We therefore reserve the right to make changes in the scope of delivery with respect to form, technology, and equipment. No claims can therefore be derived from information and illustrations contained in these instructions. - Page 5 The user of the sweeper is responsible for injuries and damage that are caused due to non-compliance with these instructions. 2.1 Intended use This sweeper is designed in accordance with the state of the art and recognized safety regulations. Nevertheless, use of the sweeper can lead to dangers for the user or third parties or damage to the sweeper and other material assets.
-
Page 6: Instructions For Use
5. Note: When sweeping and moving glass, metal or other parts into a trash can use gloves and safety glasses. 6. Visit us at Tomahawk-Power.com and visit Tomahawk Power YouTube Channel for assembly instructions 7. Never attempt to modify your machine in any way since this may increase the risk of personal injury. - Page 7 6 / 12...
-
Page 8: Assembly
V. Operation 1. The operator should use the sweeper under normal operation and consider the surrounding environment when operating; be cautious of people around the sweeper and objects that may unintentionally sweep in an outward direction. 2. Depending upon the service the operator intends to sweep you can adjust the best height of the front and back brushes. - Page 9 1.The front brush is fastened with three screws 2. Main Brush Adjusting Handle “+” main brush down “ - ” main brush up 3. Front Brush Adjusting Handle “+” main brush down “ - ” main brush up 1. No more than 19 cm across the steps when machine back up 2.
-
Page 10: Maintenance And Troubleshooting
1. Hold your handle and lift it up to remove the garbage can 2. When the main brush is entangled with garbage, it should be reversed and removed in time. 3. Dump the garbage along the side of the garbage can. No knocking on the garbage can is allowed. - Page 11 Problem: Side Brush not moving Solution: Replace Brush and or band that rotates brush. Problem: Debris Not sweeping up into hopper. Solution: Replace roller Brush Problem: Brush Bristles Damaged Solution: Use a heat gun or blower dry to straighten bristles Problem: The machine is difficult to push Solution: The Roller brush may have a blockage.
-
Page 12: Specifications
• Please enclose a copy of the invoice in the event of a warranty claim. • Only genuine Tomahawk Power spare parts must be used. • No technical modifications must be carried out on the sweeper. - Page 14 Parallel technology capable for double the power Parallel technology capable for double the power OSHA and GFCI Compliant 2 Year Product Warranty 2 Year Product Warranty 2 Year Product Warranty HAVE QUESTIONS? Contact us. We’re here to help! Email us at sales@tomahawk-power.com...
- Page 15 6.5 HP engine protected by rugged all purpose frame 3 Year Engine Warranty & 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty ASSEMBLED IN THE (866) 577-4476 www.tomahawk-power.com PARTS SOURCED GLOBALLY...
- Page 16 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today!
