GRIZZL E
SMART
EV Charger
User Manual
& Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for United Chargers GRIZZL-E GRS-6-24-P

Summary of Contents for United Chargers GRIZZL-E GRS-6-24-P

  • Page 1 ™ GRIZZL E SMART EV Charger User Manual & Installation Guide...
  • Page 2 Grizzl-E Smart Manual v. 10.1 Model Numbers: GRS-6-24-P GRS-14-24-P...

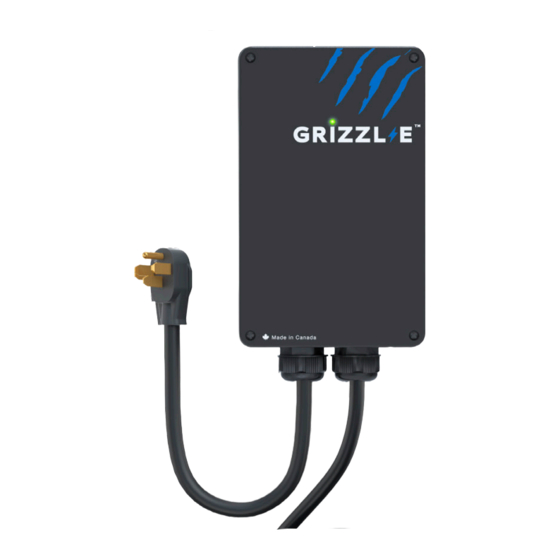

  • Page 3 Grizzl-E Smart Home EV Charging Station The Grizzl-E Smart is the Wi-Fi connected smart EV Charger built from the proven Grizzl-E design. Grizzl-E Smart has Wi-Fi connectivity and can work with any OCPP 1.6 application. It is a simple, powerful, heavy-duty, and portable electric vehicle charging station made in Canada and built to withstand the harshest conditions.
  • Page 4 Check with a licensed electrician if you are in doubt as to whether the product is properly connected and grounded. Repair and Maintenance Clause • All United Chargers products do not require routine maintenance however, periodic inspections should be conducted to ensure that all parts remain in good working order and no damage exists. •...
  • Page 5 • Plug-in Configuration for easy portability. • Wall Mount with security features (including single stud mount), Pedestal, Bollard/Pole (Single & Dual Port) available from United Chargers. • UL Certified Adjustable Maximum Current Output to Support Multiple Circuit Ratings The GRIZZL-E™ Electric Vehicle Charging Station features the ability to adjust the maximum...
  • Page 6 Product Specifications United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE) Description Specifications GRS-6-24-P Model Numbers GRS-14-24-P EVSE Level SAE J1772; AC Level 2 Max Output 40A; 9.6 kW Maximum Output – For use with 50A Circuit Rating Rating 32A; 7.68 kW Maximum Output – For use with 40A Circuit Rating Alternate 24A;...

  • Page 8: Table Of Contents

    7. Set Up Smart Functionality ................20 7.1 Check Wi-Fi Connection ................20 7.2 Connect the Grizzl-E to your Wi-Fi ............21 7.3 Connect to United Chargers OCPP Network ........... 22 7.4 Connect to Third Party OCPP Network ............ 22 8. Re-Set Wi-Fi Board ................... 23 8.1 Change OCPP Network ................

  • Page 9: Introduction & Unpacking

    1. Introduction & Unpacking This user manual applies to the GRIZZL-E™ Smart EVSE for Plug-in Hybrid Electric Vehicles (PHEVs) and Electric Vehicles (EVs). Charging Station with input and Mounting Bracket (x1) output cable (x1) Security Pin (x1) Robertson Head Socket Cap Screw Screws (x2) Phillips-head Anchor (x4)

  • Page 10: Installation Planning And Service Wiring

    2. Installation Planning and Service Wiring: WARNING: Disconnect the power supply to the charging station before installing, adjusting, or repairing the charging. Failure to do so may result in physical injury or damage to the power supply system and the charging station. CAUTION: To reduce the risk of fire, connect only to a circuit provided with the minimum branch circuit overcurrent protection requirements in accordance with the National Electrical Code ANSI/...

  • Page 11: Adjustable Maximum Current Output

    3. Adjustable Maximum Current Output The GRIZZL-E Smart charging station features the ability to adjust the maximum Charging Station current output to support 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows: Circuit Rating Maximum Charging Station Output 40A (9.6 kW) 32A (7.68 kW) 24A (5.76 kW) 16A (3.84 kW)
  • Page 12 CAUTION: The LED pipe is attached to the front cover. When the front cover is removed, place it on a flat surface facing down to avoid damage to the LED pipe. 3. With the front cover placed to the side, locate the DIP switch on the charging station circuit board.
  • Page 13 4. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or 16A, using the following combination of DIP switch settings: Switch 3 Switch 4 Switch 1 Switch 2 40A Maximum Current Output DOWN (Factory Default Setting) DOWN DOWN 32A Maximum Current Output...

  • Page 14: Installation

    4. Installation 4.1 Tools & Parts Required for Installation Prior to mounting, determine the location of an acceptable mounting support. All charging station products must be anchored into a mounting support such as a 2” x 4” stud or a solid concrete wall.

  • Page 15: Install The Charging Station

    4.2 Install the Charging Station 1. Separate the front and back piece of the mounting bracket by pushing down on the notch. Back Piece Front Piece 2. Attach the front piece of the mounting bracket to the back of the charging station using the Socket-cap screws.
  • Page 16 3. Secure the back piece of the mounting bracket to the wall or other suitable structure using the Robertson-head screws. The back piece of the mounting bracket has 3 holes to support attachment to various surfaces. Use the top two holes to attach the mounting bracket to a wall stud. Mounting Screw Recommendations: •...
  • Page 17 4. Mount the charger on the wall by securing the front piece of the mounting bracket to the back piece of the mounting bracket. 5. Secure the charger in place by inserting either the security pin or the outdoor security lock into the mounting bracket.

  • Page 18: Input Wiring Connection (Optional Hardwire Connection)

    5. Input Wiring Connection (Optional Hardwire Connection) 1. Choose the appropriate conduit in accordance with all applicable, local, and electrical safety codes and standards. 2. Using the appropriate tool, clamp the wire terminal to the copper wire. For non-insulated terminals, use heat shrink tube to cover the non-insulated portion of the terminal. 3.

  • Page 19: Easyevplug Holster And Cable Management System

    6. EasyEvPlug Holster and Cable Management System The EasyEVPlug™ Holster or Tesla EasyEVPlug™ Holster is the new innovative method to pro- tect your plug and manage your cord. It has the following features: • No need to aim – flawless plug even in the dark. •...

  • Page 20: Set Up Smart Functionality

    7. Set Up Smart Functionality 7.1 Check Wi-Fi Connection To check the strength and Encryption type of the Wi-Fi signal: 1. Plug in the charger. Ensure indicator light is alternating Blue and Purple. 2. Open the W-Fi settings on your phone or desktop. 3.

  • Page 21: Connect The Grizzl-E To Your Wi-Fi

    7.2 Connect the Grizzl-E to your Wi-Fi 1. Plug in the Charger. Ensure indicator light is alternating Blue and Purple. 2. Open the Wi-Fi settings on your smart phone or desktop. 3. Select the network UC_Smart_[ChargerSerial#]. 4. Open the browser on your device. 5.

  • Page 22: Connect To United Chargers Ocpp Network

    Grizzl-E Smart can connect to any OCPP 1.6 compatible software. 7.3 Connect to United Chargers OCPP Network Create an account on acharger.ca 1. Go to the website acharger.ca. 2. Select the Login button. 3. Select Sign Up button. 4. Enter your Name, Email, Username, and Password.

  • Page 23: Re-Set Wi-Fi Board

    8. Re-Set Wi-Fi Board If the Grizzl-E Smart Charger has lost connection and is unable to re-establish the connection try resetting the board using the following procedure: 1. Unplug the Charging Station. Place the Charging Station on a flat surface with the front cover facing up.

  • Page 24: Change Ocpp Network

    8.1 Change OCPP Network To Change OCPP Network to another provider: 1. Follow the instructions in Chapter 9. Re-Set Wi-Fi Board on page 23 to reset the Wi-Fi board. 2. Follow the directions on Chapter 7. Set Up Smart Functionality on page 20 and the third- party Network to configure your charging station with the OCPP central system URL.

  • Page 25: Charging Status Indicators And Buzzers

    9. Charging Status Indicators and Buzzers 9.1 Charging Status Indicators The following Status Indictors will be used in both Connected Modulated and Offline Solid modes: LED Indicator Buzzer Description Definition No buzzer Not illuminated Power Off No buzzer White Initialization No buzzer Blue Alternating Ready...

  • Page 26: Fault Indicators

    3. With the circuit breaker in the “OFF” position, wait 1-2 minutes and then switch the upstream circuit breaker back to the “ON” position 4. Confirm the Fault light is no longer present. If the Fault light remains, please contact United Chargers technical support.

  • Page 27: Operation

    RED. The user should plug-out and plug-in the power cable of the charging station. • If the Red Steady indicator light and buzzer remain, contact the United Chargers Technical Support Team.

  • Page 28: General Product Care And Use Information

    Ensure the power cable is stored on the charging station after use to avoid damage. • If the power cable or the charging connector is damaged, turn off the charging station supply circuit breaker, do not use the charging station, and Contact United Chargers Customer Support for replacement parts. •...

  • Page 29: Warranty

    United Chargers is not responsible or liable for any costs associated with faulty installations. United Chargers shall make the final decision, in fairness to all concerned, as to the legitimacy of any such claim on this warranty. Upon discovery of any defective GRIZZL-E ™, please contact our Customer Service Department for further instructions as to how to repair or replace the defective unit or log into your account at www.grizzl-e.com and submit support...
