- Page 1 ™ GRIZZL E EV charger User Manual & Installation Guide Model Numbers: GR1-06-18 GR1-06-24 GR1-14-18 GR1-14-24...
- Page 2 Model Numbers: GR1-06-18 GR1-06-24 GR1-14-18 GR1-14-24...
- Page 3 Code, ANSI/NFPA 70, and the Canadian Electrical Safety Code, Part I, C22.1. Repair and Maintenance Clause • All United Chargers products do not require routine maintenance however, periodic inspections should be conducted to ensure that all parts remain in good working order and no damage exists.
- Page 4 • Operation is subject to the following two conditions: (1) This charging station may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. OVERALL WARNINGS & CAUTIONS Warning: risk of electric shock Basic precautions should always be followed when using electrical products, including the following: •...

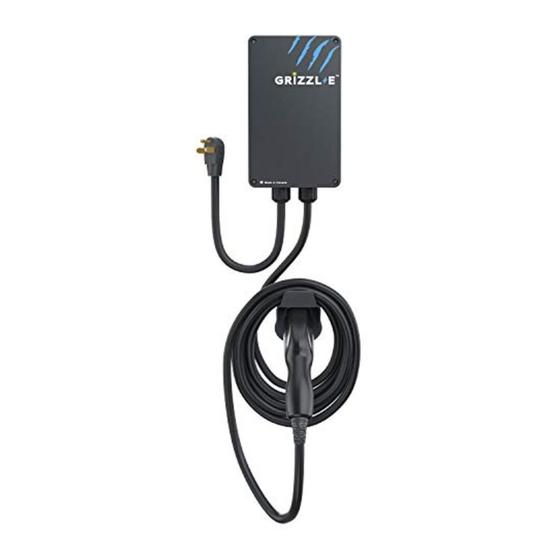

- Page 5 PRODUCT FEATURES United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE) • J1772 AC Level 2 (208-240 VAC), 40A Continuous Rated (9.6 kW) • Adjustable Maximum Current Output (40A, 32A, 24A, 16A) to Support Multiple Circuit Ratings (50A, 40A, 30A, 20A) •...
- Page 6 • To obtain the fastest charging capability of 40A, a 50A Circuit Rating must be used. • The Circuit must be a DEDICATED CIRCUIT 208-240 VAC, 50-60 Hz, Single Phase. • Per only 80% of the circuit rated load may be utilized, hence the higher Circuit Ratings Requirement relative to maximum Charging Station output.
- Page 7 PRODUCT SPECIFICATIONS United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE) Description Specifications ™ GR1-06-18: GRIZZL-E EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug ™ GR1-06-24: GRIZZL-E EVSE, 24 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug Model Numbers ™ GR1-14-18: GRIZZL-E EVSE, 18 ft.
- Page 8 Cable Management EasyEvPlug ™ with cable management Standards & UL certified components Compliance...
-
Page 9: Table Of Contents
INSTRUCTIONS MANUAL United Chargers GRIZZL-E ™ Electric Vehicle Charging Station (EVSE) CONTENTS Introduction & Unpacking ..................Unpacking ..........................Installation ........................ Before Installation ......................2.1.1 Installation Planning & Service Wiring ................2.1.2 Grounding Instructions ...................... 2.1.3 Adjusting the Charging Station Maximum Current Output Setting (Optional).... -
Page 10: Introduction & Unpacking
1. INTRODUCTION & UNPACKING This user manual applies to the GRIZZL-E ™ EVSE for Plug-in Hybrid Electric Vehicles (PHEVs) and Electric Vehicles (EVs). 1.1 Unpacking Unpackage all items and confirm the contents as noted below. PLEASE NOTE: The Mounting Fasteners for both the Charging Station Mounting Bracket and Connector &... -
Page 11: Installation
2. INSTALLATION 2.1 Before Installation 2.1.1 Installation Planning & Service Wiring Warning: risk of electric shock • Do not touch live electrical parts. • Incorrect connections may cause electric shock. • Disconnect the power supply to the charging station and verify no power is present before installing, adjusting, or repairing the charging station. -
Page 12: Grounding Instructions
• Additionally, a Double Pole Circuit Breaker of the circuit rating must be used. The Charging Unit has a built in GFCI protection; do not provide any additional GFCI protection upstream of the charging unit. • The Charging Stations can connect (plug into) a Standard NEMA 6-50 or 14-50 Receptacle or the unit can be hardwired Caution: The service wiring in this section are specific to North America only. - Page 13 30A Circuit Rating: To support 24A (5.76 kW) maximum Charging Station output 20A Circuit Rating: To support 16A (3.84 kW) maximum Charging Station output The Charging Station Default Factory Maximum Current Output Setting is 40A (9.6 kW) for use with a 50A Circuit Rating. To adjust the Maximum Current Output Setting when using a 40A or 30A or 20A Circuit Rating: 1.
- Page 14 Figure 2-2. 3-Position DIP Switch Warning: risk of electric shock • Do not touch live electrical parts. • Incorrect connections may cause electric shock. • Disconnect the power supply to the charging station and verify no power is present before installing, adjusting, or repairing the charging station.
-
Page 15: Tools & Parts Required For Installation
5. Once the DIP Switch Setting is adjusted, reassemble the charging station. Reinstall the top cover to the charging station using the following torque force to secure the (4) socket cap screw: Screw Torque 16 kgf-cm 13.88 lb-in 2.2 Tools & Parts Required for Installation Table 2-1 Tools &... -
Page 16: Install The Charging Station
2.3 Install the Charging Station 1. Secure back piece of the charging station mounting bracket to the wall or other suitable structure with provided mounting screws. If installing to a wall, ensure the screws are anchored into a suitable wall stud. Figure 2-7. -
Page 17: Input Wiring Connection (Optional Hardwire Connection Only)
3. Mount charger on the wall 5. For Plug-in (NEMA 6-50 or 14-50) mounting bracket and lock it with the models, Plug in the power cord to the NEMA 6-50 or 14-50 Wall Outlet/ Receptacle. The NEMA outlet should be located no less than 20~26” from the ground or as defined by applicable, local electrical safety codes and standards. - Page 18 3. Connecting the electrical wiring to the charging station. a. Remove the Charing Station front cover by unscrewing screws Figure 2-13. Four Cap screw locations to remove the Charging Station Cover Caution: The LED pipe is attached to the charging station front cover. When front cover is removed, place the front cover on the surface with front cover down and LED pipe up.
- Page 19 Model Terminal Conductor Screw Rating Torque GRIZZL-E ™ 16 kgf-cm 13.88 lb-in L1, L2, G 8 AWG 90C, copper wire Figure 2-14. Input wiring Caution: To reduce the risk of fire, connect only to a circuit provided with the appropriate amperes minimum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I, C22.1.
-
Page 20: Install The Easyevplug
2.5 Install EasyEvPlug™ ™ Figure 2-15. EasyEvPlug The EasyEvPlug™ can be installed at any location near the charging station. Once the EasyEvPlug™ installation location is determined, secure the holder to the wall with the appropriate screws. EasyEVPlug™ is the new innovative plug holder which protects your plug and has the following features: No need to aim –... -
Page 21: Operations
• With the circuit breaker in the “OFF” position, wait 1-2 minutes and then switch the upstream circuit breaker back to the “ON” position • Confirm the Fault light is no longer present. If the Fault light remains, please contact United Chargers. -
Page 22: Charging Your Electric Vehicle (Ev)
3.2 CHARGING YOUR ELECTRIC VEHICLE (EV) 3.2.1 Connect and Charge a. Insert the charging Connector into the EV and ensure the connector is fully seated/locked in place. b. Once complete, the charging session will commence. Figure 3-1. Connect the charging plug to the EV 3.2.2 Stop Charging a. -
Page 23: General Product Care And Use Information
• Ensure the power cable is stored on the charging station after use to avoid damage. • If the power cable or the charging connector is damaged, turn off the charging station supply circuit breaker, do not use the charging station, and please contact United Chargers Customer Support for replacement parts. -
Page 24: Warranty
This warranty will not apply if the product has been misused, abused, or altered. The warranty will apply only if the product is defective. United Chargers shall make the final decision, in fairness to all concerned, as to the legitimacy of any such claim on this warranty. Upon discovery of any defective GRIZZL-E ™, please contact our Customer Service Department for...
