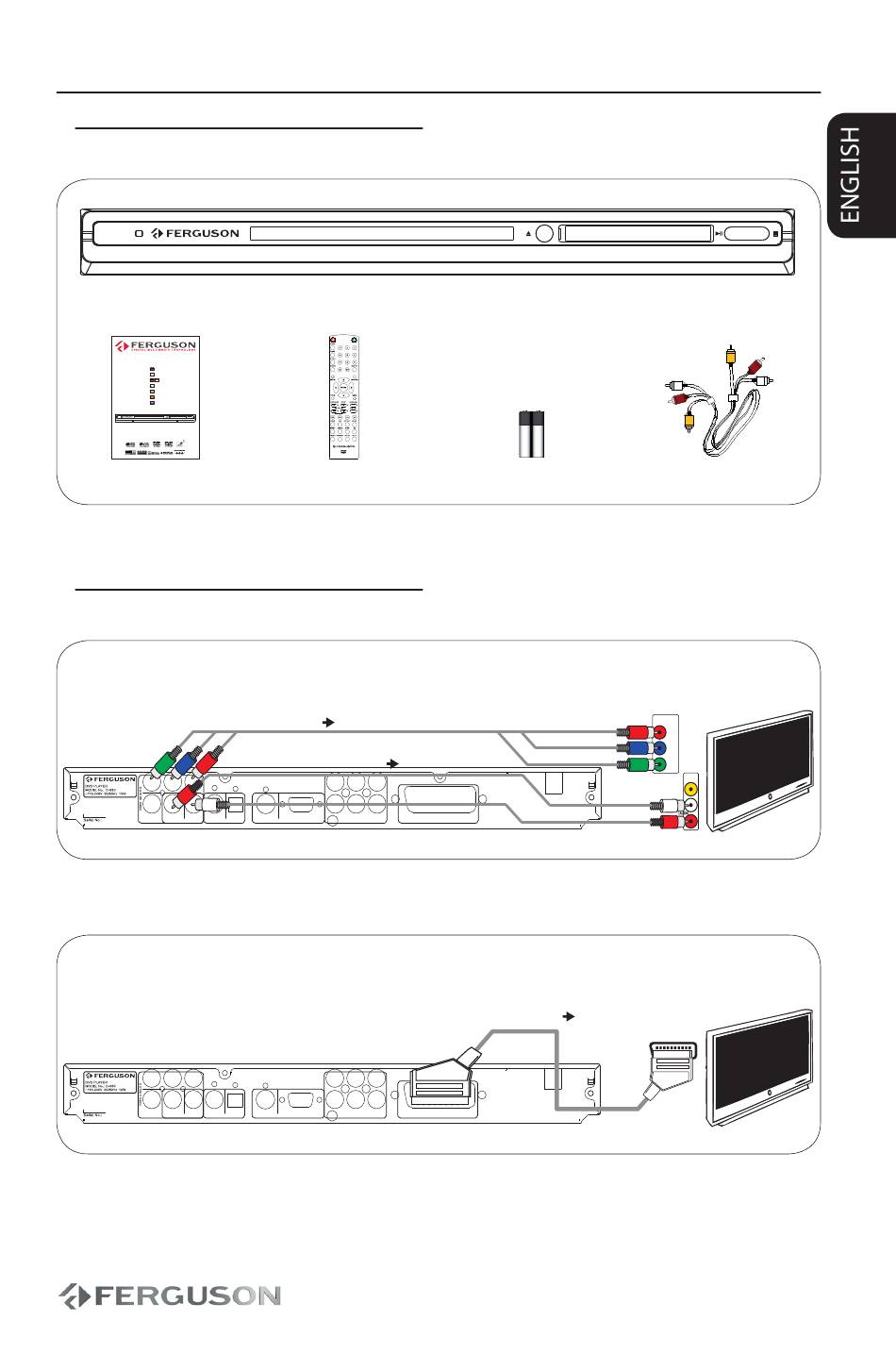

1. What's in the box?
D-680
D-680
User manual
EN
DVD player
Instrukcja obsługi
PL
Handbuch
DE
Uživatelská příručka
CZ
Kézikönyv
HU
Manual del usuario
ES
Руководство
RU
D-680
User manual
2. Connect - basic audio/video connections
Component (Better quality, cable not supplied) and stereo audio
Y
Pb
Pr
CVBS
R
L
COAXIAL
OPTICAL
AUDIO STEREO ANALOG
AUDIO DIGITAL
SCART (Good quality, cable not supplied)
Y
Pb
Pr
CVBS
R
L
COAXIAL
OPTICAL
AUDIO STEREO ANALOG
AUDIO DIGITAL
DVD player D-680
Remote Control Unit
video
audio
L
LS
C
TV OUT
R
RS
SW
S-VIDEO
VGA
VIDEO ANALOG
AUDIO 5.1 ANALOG
VIDEO AUDIO ANALOG
L
LS
C
R
RS
SW
S-VIDEO
VGA
VIDEO ANALOG
AUDIO 5.1 ANALOG
VIDEO AUDIO ANALOG
Qucik Start Guide
2x AAA baterries
SCART
or
video, audio
SCART
or
A/V cable
COMPONENT
VIDEO IN
Pr (V)
Pb (U)
TV
Y
VIDEO IN
(CVBS)
SCART IN
TV
