Ferguson D-990 HX Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. What's in the box?
User manual
D-990 HX
EN
DVD player
Instrukcja obsługi
PL
Handbuch
DE
Uživatelská příručka
CZ
Kézikönyv
HU
User manual
2. Connect - basic audio/video connections
HDMI (Best quality, cable not supplied)
Power
230V
VIDEO AUDIO ANALOG OUT
50Hz
AC 110-240V~
50/60 Hz 12W
SCART
Component (Better quality, cable not supplied) and stereo audio
Power
230V
VIDEO AUDIO ANALOG OUT
50Hz
AC 110-240V~
50/60 Hz 12W
SCART
DVD player D-990 HX
POWER
EJECT
A
B
C
D
Blu-ray
1
2
3
4
5
6
7
8
9
AUDIO
SUBTITLE
0/10
SETUP
INFO
REV
OK
FWD
+
NEXT
MUTE
VOL
PREV
STEP
SLOW
STOP PLAY/PAUSE
MENU
TITLE
RETURN SEARCH
INPUT
OPT
ZOOM
BROWSE
VIDEO
EQ
REPEAT
A-B
RCU580
Remote Control Unit
video, audio
Pr
FL
CENT
SL
Y
Pb
VIDEO AUDIO
DIGITAL OUT
D-990 HX
DVD Player
FR
SW
SR
COAXIAL
CVBS
S-VIDEO
OPTICAL
HDMI
AUDIO 5.1 ANALOG OUT
DIGITAL AUDIO OUT / ANALOG VIDEO OUT
Pr
FL
CENT
SL
Y
Pb
VIDEO AUDIO
DIGITAL OUT
D-990 HX
DVD Player
OPTICAL
FR
SW
SR
COAXIAL
CVBS
S-VIDEO
HDMI
AUDIO 5.1 ANALOG OUT
DIGITAL AUDIO OUT / ANALOG VIDEO OUT
Qucik Start Guide
2x AAA baterries
CAUTION!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
ACHTUNG!
UWAGA!
NICHT ÖFFNEN
NIE OTWIERAĆ
LEBENSGEFAHR
RYZYKO PORAŻENIA
or
video
CAUTION!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
ACHTUNG!
UWAGA!
NICHT ÖFFNEN
NIE OTWIERAĆ
LEBENSGEFAHR
RYZYKO PORAŻENIA
or
A/V cable
HDMI IN
TV
COMPONENT
VIDEO IN
Pr (V)
Pb (U)
TV
Y
VIDEO IN
(CVBS)
audio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-990 HX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ferguson D-990 HX

Summary of Contents for Ferguson D-990 HX

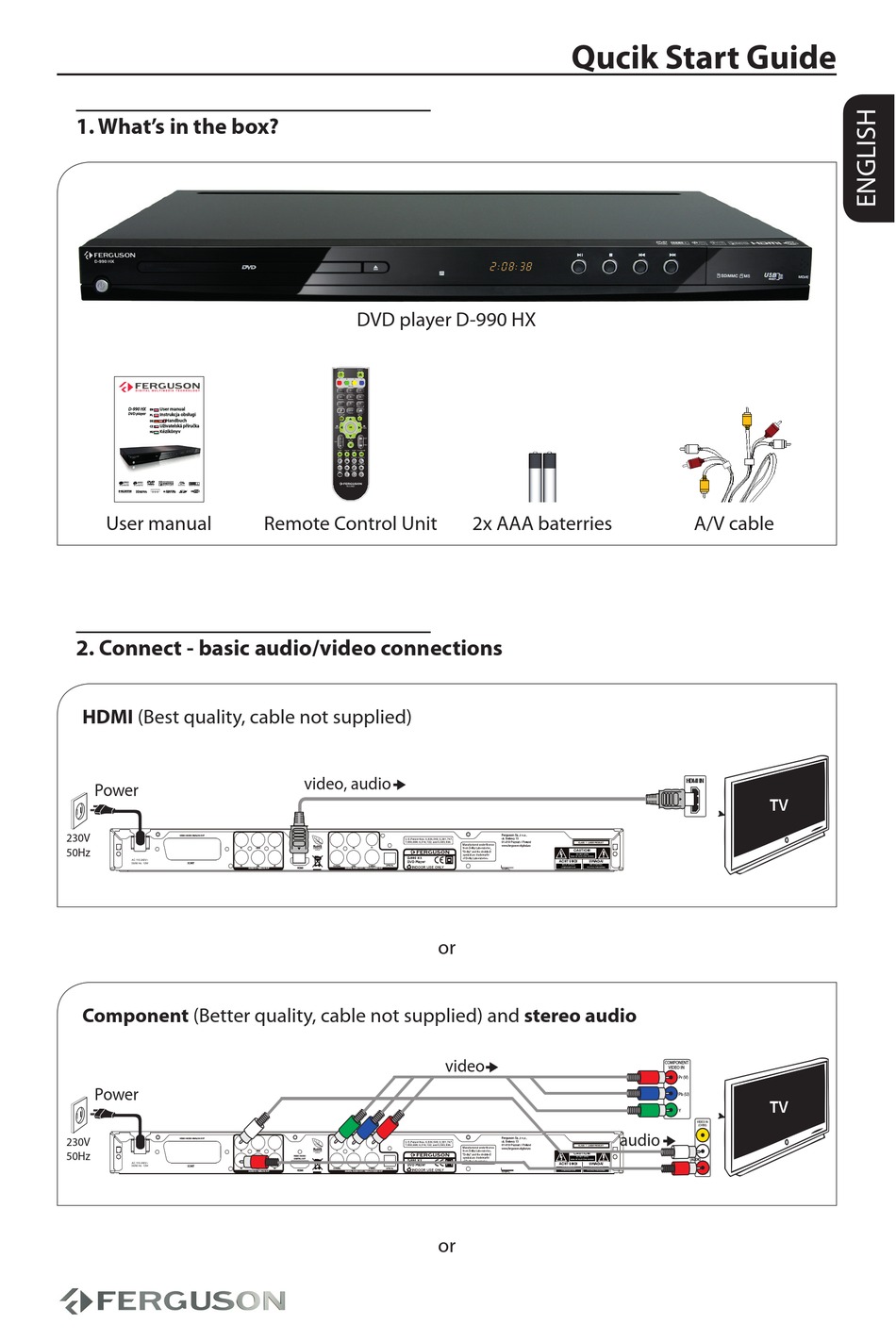

  • Page 1 Qucik Start Guide 1. What’s in the box? DVD player D-990 HX POWER EJECT Blu-ray User manual AUDIO SUBTITLE D-990 HX 0/10 DVD player Instrukcja obsługi SETUP INFO Handbuch Uživatelská příručka   Kézikönyv  NEXT MUTE PREV STEP SLOW...
  • Page 2 SCART IN Power 230V VIDEO AUDIO ANALOG OUT 50Hz CENT CAUTION! VIDEO AUDIO DO NOT OPEN DIGITAL OUT D-990 HX RISK OF ELECTRIC SHOCK AC 110-240V~ ACHTUNG! UWAGA! DVD Player 50/60 Hz 12W SCART OPTICAL NICHT ÖFFNEN NIE OTWIERAĆ...

  • Page 3: Table Of Contents

    Contents Introduction Disc Operation 1 Supplied accessories 14 Upscaling 1 Cleaning discs 14 Playable discs 2 User manual 14 Playable Content 2 Software upgrade 16 Playing discs 3 Symbols used on the device 16 Basic playback controls 3 Setup 17 Selecting various repeat/shuffle functions 17 Operation for video playback (DVD/VCD/ SVCD)

  • Page 5: Introduction

    Introduction Supplied accessories Safety Information  Please observe all warnings and POWER EJECT instructions on the equipment and Remote Control Blu-ray contained in these operating instructions.  Please carefully read this user’s manual AUDIO SUBTITLE 0/10 SETUP INFO before using the device. two AAA batteries ...

  • Page 6: User Manual

    Introduction User manual Ferguson has used all the available  Do not use damaged cables for means to ensure the latest information connections: you could cause fires. regarding its products. Ferguson does not  Please switch off completely the device give a warranty regarding the contents while making all connections.

  • Page 7: Symbols Used On The Device

    Introduction Symbols used on the device Setup Finding a suitable location CAUTION! DO NOT OPEN – Place the set on a flat, hard and stable RISK OF ELECTRIC SHOCK ACHTUNG! UWAGA! surface.Do not place the set on a carpet. NICHT ÖFFNEN NIE OTWIERAĆ...

  • Page 8: Connections

    VIDEO AUDIO ANALOG OUT VIDEO AUDIO ANALOG OUT CENT CENT CAUTION! VIDEO AUDIO VIDEO AUDIO DO NOT OPEN DIGITAL OUT DIGITAL OUT D-990 HX D-990 HX RISK OF ELECTRIC SHOCK AC 110-240V~ ACHTUNG! UWAGA! DVD Player DVD Player 50/60 Hz 12W SCART...
  • Page 9 VIDEO AUDIO ANALOG OUT VIDEO AUDIO ANALOG OUT CENT CENT CAUTION! VIDEO AUDIO VIDEO AUDIO DO NOT OPEN DIGITAL OUT DIGITAL OUT D-990 HX RISK OF ELECTRIC SHOCK D-990 HX AC 110-240V~ AC 110-240V~ ACHTUNG! UWAGA! DVD Player DVD Player 50/60 Hz 12W...

  • Page 10: Connecting The Power Cord

    VIDEO AUDIO ANALOG OUT VIDEO AUDIO ANALOG OUT CENT CENT CAUTION! VIDEO AUDIO VIDEO AUDIO DO NOT OPEN DIGITAL OUT DIGITAL OUT D-990 HX RISK OF ELECTRIC SHOCK AC 110-240V~ AC 110-240V~ ACHTUNG! UWAGA! DVD Player 50/60 Hz 12W SCART 50/60 Hz 12W SCART NICHT ÖFFNEN...

  • Page 11: Optional: Connecting To An Stereo System

    VIDEO AUDIO ANALOG OUT VIDEO AUDIO ANALOG OUT CENT CENT CAUTION! VIDEO AUDIO VIDEO AUDIO DO NOT OPEN DIGITAL OUT DIGITAL OUT D-990 HX RISK OF ELECTRIC SHOCK AC 110-240V~ AC 110-240V~ ACHTUNG! UWAGA! DVD Player 50/60 Hz 12W SCART 50/60 Hz 12W...

  • Page 12: Optional: Connecting Digital Av Receiver

    USB devices and memory cards AV Receiver AUDIO DIGIT AL MOVE VIDEO AUDIO ANALOG OUT CENT CAUTION! VIDEO AUDIO DO NOT OPEN DIGITAL OUT D-990 HX RISK OF ELECTRIC SHOCK ACHTUNG! UWAGA! DVD Player SCART NICHT ÖFFNEN NIE OTWIERAĆ OPTICAL COAXIAL CVBS...

  • Page 13: Functional Overview

    Functional Overview Front and Rear panels D-990 HX POWER - Turns the player on - Starts/pauses playback Disc tray - Stops playback EJECT - Open / close the disc tray - Skips to the previous chapter IR Sensor - Point the remote control...

  • Page 14: Remote Control Unit (Rcu580)

    Functional Overview Remote Control Unit (RCU580) Due to standardization fact most of Ferguson DVD players are using the same remote control unit RCU580. That is why NOT all keys are being used by this DVD model!! POWER - Turns the player on or switches it to standby mode...

  • Page 15: Getting Started

    Getting Started Step 1: Inserting batteries into the Step 2: Setting up the TV Remote Control IMPORTANT! Make sure you have completed all the Open the battery compartment. necessary connections. Insert two batteries type R03 or AAA, following the indications(+ -) inside the Press POWER on the DVD player to turn compartment.

  • Page 16: Step 3: Setting Language Preference

    Getting Started Selecting the colour system that Step 3: Setting language corresponds to your TV preference The language options are different This DVD Player is compatible with both depending on your country or region.It NTSC and PAL. In order for a DVD disc may not correspond to the illustrations to play on this player, the colour system shown on the user manual.
  • Page 17 Getting Started Setting the Audio, Subtitle and Disc menu language You can choose your own preferred language or soundtrack from audio, subtitles and DVD menu languages. If the language selected is not available on the disc, the disc’s default language will be used instead.

  • Page 18: Disc Operation

    Disc operation IMPORTANT! Playable Content If the inhibit icon (ø) appears on the  TV screen when a button is pressed, it means the function is not available on the File Systems current disc or at the current time.  FAT (FAT16 and FAT32) ...
  • Page 19  and others Playback of movie files with video bitrate  over 5 Mbps may be incorrect Extensions recognized in Ferguson file browser. List of recognized multimedia file extensions are listed below. Not all files with those extensions are playable - some files may include not supported codecs and/or settings.

  • Page 20: Playing Discs

    Disc operation Playing discs Basic playback controls Connect the power cords of the DVD Unless otherwise stated, all operations player and TV(and any option stereo or AV described are based on Remote Control receiver) to a power outlet. use. Turn on the TV power and set to the correct Video in channel.

  • Page 21: Selecting Various Repeat/Shuffle Functions

    Disc operation Selecting various repeat/shuffle Operations for video playback functions (DVD/ VCD/SVCD) Repeat play mode Using the Disc Menu The repeat play options vary depending Depending on the disc, a menu may on the disc type. appear on the TV screen once you load in the disc.

  • Page 22: Osd (On -Screen Display) (Dvd

    Disc operation Slow Motion OSD (On -Screen Display) (DVD/ VCD/SVCD/XviD) Press   during playback to select the required speed: 1/2, 1/4, 1/8 or 1/16 (forward {DVD/SVCD/VCD} or backward Using the OSD menu {DVD}). Sound will be muted.  OSD menu shows the disc playback To return to normal speed, press PLAY/ information (for example, title or PAUSE.

  • Page 23: Special Dvd Features

    Disc operation Playback info Special DVD Features This OSD menu shows the disc playback Playing a Title information (for example, title or chapter number, elapsed playing time), without interrupting disc playback. Press MENU. The disc title menu appears on the TV ...

  • Page 24: Special .Avi (Xvid) Features

    Disc operation Special .avi (XviD) Features MediaInfo function Press INFO button in File Browser on .avi or audio file to view detailed file information. Press SUBTITLE again. Use    keys to change font size. Press INFO key to exit Press SUBTITLE again.

  • Page 25: Playing A Xvid Disc

    Disc operation Audio track change and time shift Playing a XviD disc During .avi playback, press AUDIO. Use This DVD player supports the XviD    keys to change audio track movie playback that you download Press AUDIO again. Use   keys to from your computer onto a CD-R/RW or adjust subtitle time shift.

  • Page 26: Playing Multimedia Files From The Usb Device Or Memory Card

    Disc operation Compatibility of USB device Playing multimedia files from the USB device or memory card  The USB port does not support the connection of other USB device except This DVD system able to access and view the supported USB device. the data in the supported USB device or ...
  • Page 27 Disc operation Playback selection Preview Function (JPEG) During playback ,you can; This function shows the content of the  Press PREV/NEXT to select the previous/ current folder or the whole disc. next track/file in the current folder. Press BROWSE during playback. ...

  • Page 28: Dvd Setup Menu Options

    DVD Setup Menu Options This DVD Player setup is carried out Audio Setup menu via the TV, enabling you to customise the DVD player to suit your particular requirement. In disc mode, press SETUP. Press   to select ‘Audio Setup Page’ icon.
  • Page 29 DVD Setup Menu Options Digital Audio Setup HDMI Audio Setup The options included in Digital Audio This function allows you to set the digital Setup are: { Digital Output } and { LPCM audio to output via HDMI cable. Output }. In ‘Audio Setup Page’...

  • Page 30: Dolby Digital Setup Menu

    DVD Setup Menu Options Dolby Digital Setup Menu Video Setup Menu Press SETUP. In disc mode, Press SETUP. Press   to select DOLBY DIGITAL Press to select ‘Video Setup Page’ SETUP icon. icon. DOLBY DIGITAL SETUP Video Setup Page DUAL MONO TV Type DYNAMIC RANGE...
  • Page 31 DVD Setup Menu Options Switching the YUV/RGB HDMI Setup This setting allows you to toggle the The options included in HDMI Setup is : output of the video signal between RGB ‘Resolution’ . (on scart) and Component(YUV). In {VIDEO SETUP PAGE}, press  to highlight{HDMI Setup}, then press .

  • Page 32: Preference Page

    DVD Setup Menu Options Helpful Hints: Preference Page VCD, SVCD, CD have not level indication,  so parental control function has no effect on these type of discs. This applies to Press STOP button twice to stop playback most illegal DVD discs. (if any), then press SETUP.

  • Page 33: Xvid Subtitle Setup Page

    DVD Setup Menu Options Restoring to original settings XviD Subtitle Setup Page Setting the { Default } function will reset Press STOP button twice to stop playback all options and your personal settings (if any), then press SETUP. to the factory defaults, except your Press ...

  • Page 34: Troubleshooting

    Troubleshooting WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair.
  • Page 35 Troubleshooting Player does not respond to some – Operations may not be permitted by the disc. Refer to the in- operating commands during structions of the disc jacket. playback. DVD Player cannot read CDs/DVDs – Use a commonly available cleaning CD/DVD to clean the lens before sending the DVD Player for repair.

  • Page 36: Specification

    Specifications Processor Cabinet Mediatek MT1389M with MDDI (Motion-Adaptive, Pure Dimensions (w x h x d) 430 x 43 x 200 mm Edge De-interlacing) Weight Approximately 2,1 kg Flash Power consumption 2 MiB (16 Mbit) NAND Power Supply Rating 110-240V; 50/60Hz Power consumption Power consumption in Standby mode <1W...

  • Page 37: Glossary

    Glossary Composite (CVBS) - Low quality analogue video Dolby Digital (or AC-3) - It isa surround sound signal format. Can carry PAL signal.. system developed by Dolby Laboratories containing up to six channels of digital audio (front Component (YPbPr) - Higher quality analogue left and right, surround left and right, center and video signal format.

Table of Contents
