This product is fitted with a modern wall-fixing set.
The warranty/liability only applies when installation is effected as per the instructions.
Please keep this and all the other instruction manuals – attached to the product – for serviceing!
Art.-No. 8.4097.1 / 8.4097.5

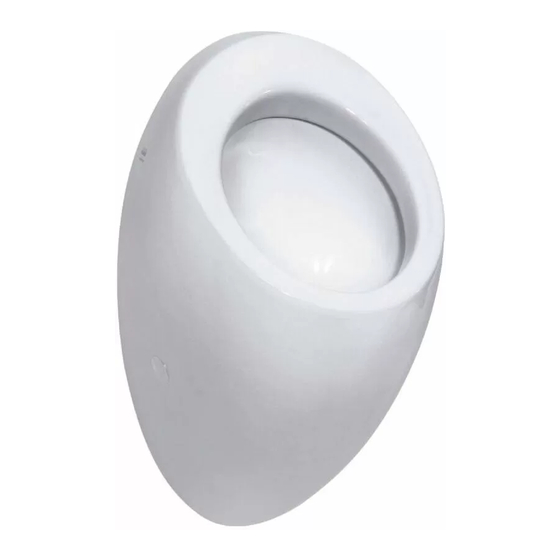

Urinal installation instruction
03/03/09 8.9897.2.000.000.1 KRA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Laufen IL BAGNOALESSI
Summary of Contents for Laufen IL BAGNOALESSI
- Page 1 This product is fitted with a modern wall-fixing set. The warranty/liability only applies when installation is effected as per the instructions. Please keep this and all the other instruction manuals – attached to the product – for serviceing! Art.-No. 8.4097.1 / 8.4097.5 Urinal installation instruction 03/03/09 8.9897.2.000.000.1 KRA...
- Page 2 Art. No. 8.4097.1 / 8.4097.5 Mounting instructions 10 cm (3⅞") 10 cm (3⅞") (3⅞") (3 ⅞") 81,5 cm Ø 14 mm (½") 87,5 cm (32⅛") (34½") 52,5 cm (20⅝") 52 cm (20½") 52 cm 6 cm (20½") • Preparation 10 cm (4") 8.9009.9 18,7 8.9418.3...
- Page 3 Art. No. 8.4097.1 / 8.4097.5 Mounting instructions +4,5 (1¾") • Portland-cement • Liquid-soap...
- Page 4 ⅛ " ( 5 1 • Push the ceramic over the threaded bolt (click, click …) (1/4") (1/4") • Use only enclosed LAUFEN-tool! With (1/4") exceeding the max. torque of 5 Nm the fixing box can be damaged. (3/8") • Turn, but not tightly...
- Page 5 Art. No. 8.4097.1 / 8.4097.5 Mounting instructions To clean the visible parts, only use soft, moist For stubborn stains, please use a cleansing All visible parts must be rubbed dry after they pieces of cloth or leather. agent which does not harm your skin (e.g. have been cleaned or after they have become washing-up liquid), and put it into luke-warm wet.
- Page 6 © Laufen Bathrooms AG „ALESSI“ is a registered trademark of F.A.O. spa, 28023 Crusinallo (VB), Italy. All products of ILBAGNOALESSI are produced under licence of F.A.O. spa www.alessi.com...
