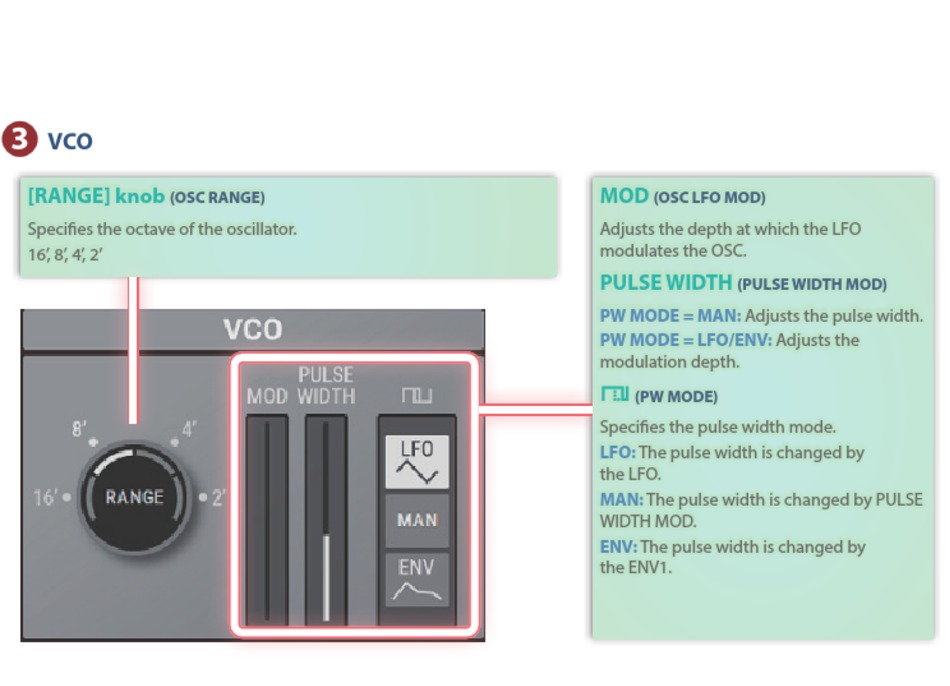

VCO
VCO
[RANGE] knob
(OSC RANGE)
Specifies the octave of the oscillator.
16' , 8' , 4' , 2'
MOD
(OSC LFO MOD)
Adjusts the depth at which the LFO
modulates the OSC.
PULSE WIDTH
(PULSE WIDTH MOD)
PW MODE = MAN:
Adjusts the pulse width.
PW MODE = LFO/ENV:
Adjusts the
modulation depth.
V
(PW MODE)
Specifies the pulse width mode.
LFO:
The pulse width is changed by
the LFO.
MAN:
The pulse width is changed by PULSE
WIDTH MOD.
ENV:
The pulse width is changed by
the ENV1.
