- Page 1 User Manual of True Wireless Earphones Each earphone can be used individually CXH-O...

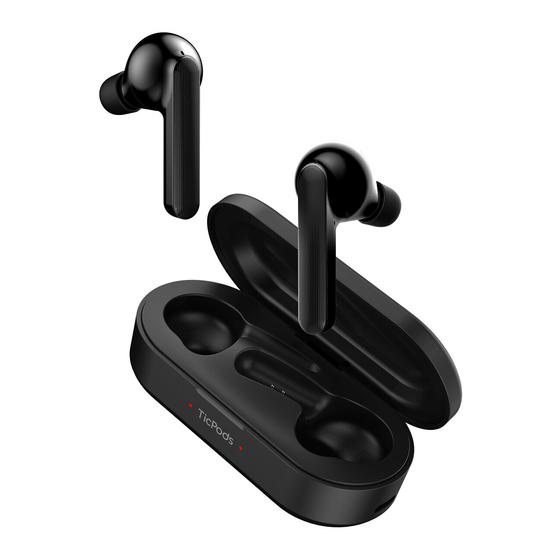

- Page 2 Appearance LED indicator on charging box Top Mic pickup hole Pressure release hole Charging point Silicon rubber case of audio out Touch area Bottom Mic pickup hole...
-
Page 3: Pairing And Connection
1. Correct pairing First pairing: Enable Bluetooth on the phone settings, open the charging box synchronously, and search for and click Mobvoi Earbuds Gesture xxx on the mobile phone click to connect. Earphone can be used when the connection is successful. - Page 4 C: Install APP: search and download Mobvoi APP at app stores, and follow the tips to register and log in; you can also scan the QR code at the bottom of the charging box to download and install the app;...
- Page 5 Dual host transmission 1. Left and right earphones can be used independently thanks to dual host transmission Sent by the master Direct connection of right earphone Traditional TWS earphones have a master-slave switch. The “master” is connected to the mobile phone first, and then transmits the audio received to the “slave”.
- Page 6 Binaural direct connection: Improvements have been made to TWS earphones. Assuming that the right earphone is the master, audio is transited to the left earphone not through the right earphone. Instead, the users feel that the left earphone is also connected to the master through air packet capture (as shown above).
- Page 7 2. Seamless switching between left and right earphones Seamless switching: Some TWS earphones can be used in one ear. However, when you only take the left earphone, put it back, and only take the right earphone, the master changes from the left earphone to the right earphone, and it needs to be re-started again at a slow speed.
- Page 8 Definition of touch operation Double click Answer the call After answering the call, long Incoming call - call Hang up press 2s Reject the call Long press 2s Play/Pause Double click Music-Play Triple-click left earphone Previous Triple-click right earphone Next Wake the phone’s default Voice assistant Long press 2s...
- Page 9 Battery reminder When the earphone battery is low Earphone gives a sound The red light is on when the charging box is Earphone battery is less than 10% opened The green light is on when the charging box The charging box has sufficient battery is opened The charging box is being charged The green light on the charging box flashes...
- Page 10 Reset 1. Put both earphones in the box and close the cover, then take any earphone and long-press the touch area for 10s. When you hear the power-off tone, put it back in the box. 2. Repeat the above steps. Take out another earphone, long-press it for 10s and close the cover.
-
Page 11: Technical Specifications
Working distance: Single endurance: Overall endurance (with charging box): Waterproof rating: IPX5 Bluetooth: BT5.0 Bluetooth name: Mobvoi Earbuds Gesture + last 4 digits of mac address Charging time: earphone 1.5H Interface type: type-C Decoding format: SBC AAC Speaker dimensions: Φ6.0*3.9H... -
Page 12: Warranty And Service
Warranty and Service Please read the MOBVOI LIMITED WARRANTY carefully before using the product at www.mobvoi.com/pages/limited-warranty More information and services importer: Mobvoi Inc. Please check out our official website to learn more. www.mobvoi.com Please contact us if you experience any problems. -
Page 13: Safety And Precaution
Please do not use Mobvoi Earbuds Gesture and the case if they are damaged. - Page 14 Background noise, as well as continued exposure to high volume levels, can make sounds seem lower than they actually are. Check the volume before inserting Mobvoi Earbuds Gesture in your ear. W A R N I N G To prevent possible hearing damage, do not listen at high-volume levels for long periods of time.
- Page 15 Use of Mobvoi Earbuds Gesture while operating a vehicle is not recommended and may be illegal in some jurisdictions. Check and obey the applicable laws and regulations in any specific jurisdiction on the use of earphones while operating a vehicle. Be careful and attentive while driving.
- Page 16 Electrostatic shock When using Mobvoi Earbuds Gesture in an area where the air is very dry, it is easy to build up static electricity and possible for your ears to receive a small electrostatic discharge from Mobvoi Earbuds Gesture. To minimize the risk of...
- Page 17 Operating environment It is recommended to use your device at temperatures from【-5 ° C - 40 ° c】 and store it at temperatures from【0 ° c- 30 ° c】. Using or storing your device outside the specified temperature ranges may result in damage to the device. Please do not use your device outdoors during rain or thunderstorms in order to prevent electric shock or device malfunction.
- Page 18 CE Statements Hereby, Yangzhou Tenji technology co. LTD declares that this [Mobvoi Earbuds Gesture, CXH-O] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.mobvoi.com/...
- Page 19 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. FCC ID Number is 2AWEG-CXHO. Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 20 IC Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
