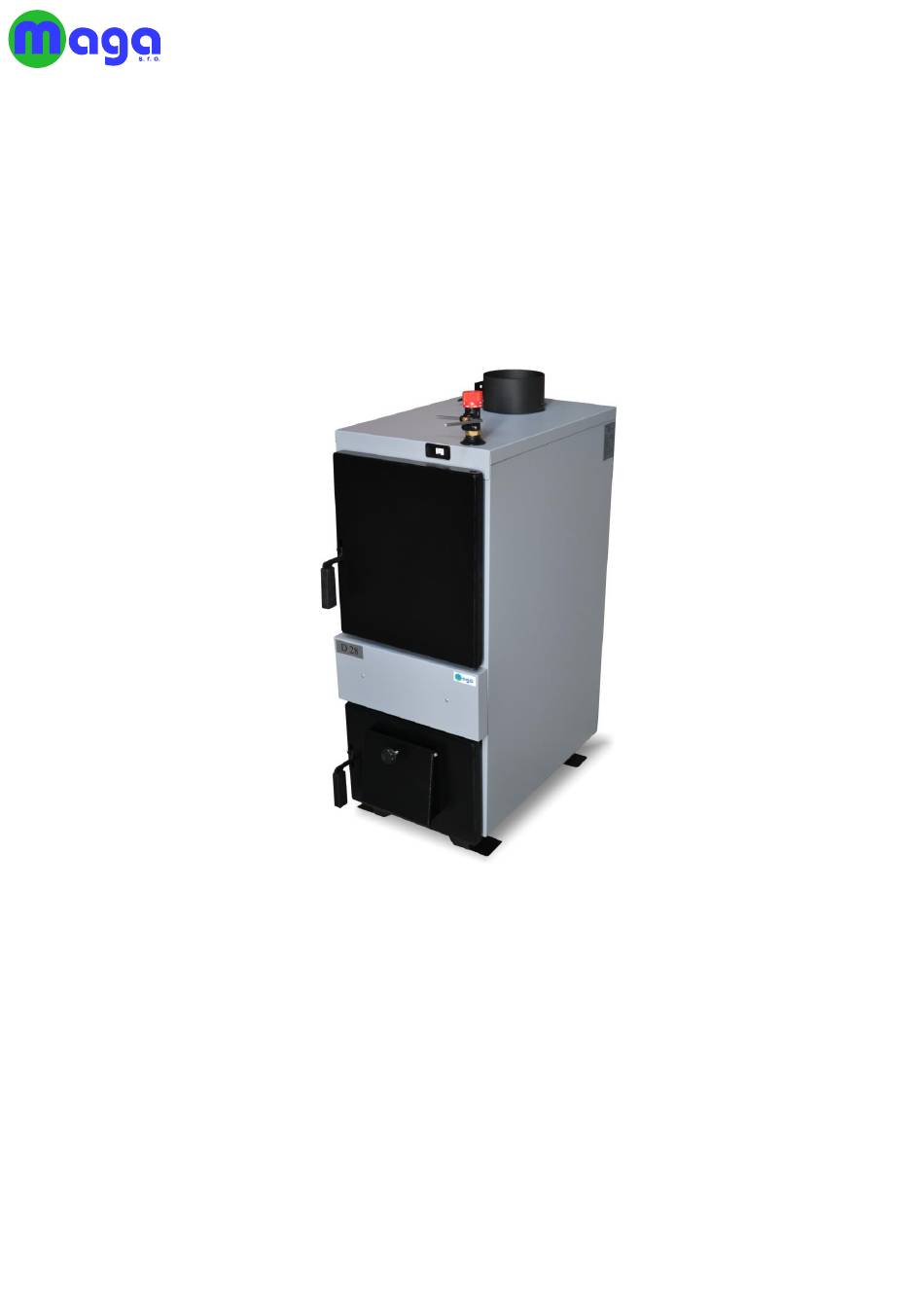

- Page 1 MAGA s.r.o., Samuela Kollára 86, 979 01 Čerenčany, Slovak Republic. Mobile: +421 917 465 298 www.magasro.sk, e-mail: sales@magasro.sk BOILER OPERATION AND MAINTENANCE MANUAL D Premium HOT-WATER STEEL WOOD BOILER Thank you for choosing to purchase our product!
- Page 2 SO THAT YOU REMAIN SATISFIED WITH OUR PRODUCT, WE RECOMMEND THAT YOU FOLLOW THESE FUNDAMENTAL PRINCIPLES FOR LONG LIFESPAN AND SUSTAINABLE PROPER OPERATION OF THE BOILER 1. Use only dry wood fuel with 20 percent or less moisture content – i.e. 2 years old wood.
-
Page 3: Purpose Of Use
1. Purpose of Use The ‘D’ hot-water boiler is intended for heating homes (such as apartments, family houses, townhouses) and other types of buildings. The boiler is designed exclusively to work on burning wood. Any dry wood such as chopped logs or wood chips with maximum length of 500 mm and 60-120 mm in diameter. (check the technical details according boiler type). -
Page 4: Technical Description
3. Technical Description The boiler is designed to work on burning wood pieces with a maximum length of 550 mm (according the boiler type)and a maximum water contents of 20 %. As an alternative type of fuel wood briquettes up to ø 50 mm and wood waste can be used. If this type of fuel is used, the fuel channels tend to become obstructed more intensely. - Page 5 ¾ The boiler need to be installed with cooling valve e.g. DANFOSS BTVS and heating system by pressure valve. CAUTION When you fire up a new boiler for the first time, condensation and discharge of the condensate from the boiler may occur - this is not because of any defect in the boiler.
- Page 6 Removal of excess heat D - boilers are equipped with a cooling safety exchanger against overheating of the boiler (Fig. 1), which provides safe dissipation of excess heat not to exceed 110 °C. If boiler is overheated (water outlet temperature is higher than 95 °C) safety valve (e.g: Danfoss BVTS, Honeywell TS 130 or WATTS STS 20) opens ap the cooling circuit and the cold water begins to flow through the cooling heat exchanger boiler.
- Page 7 7. Chimney The chimney flue must at all times develop a sufficient draught to be able to reliably exhaust combustion products to the outside environment. A separate independent chimney flue of proper dimensions should be installed for the chimney to function properly. The proper function of a boiler depends on the chimney draught.
-
Page 8: Type Of Environment
the fire-tending side and at least 100 mm beyond the ground plan on all other sides. For this purpose, any incombustible, fireproof,. thermally insulating materials can be used. Combustibility Class of Building Materials and Products Falling within Building Materials and the Combustibility Class Products granite, sandstone, concrete, bricks, ceramic tiles,... - Page 9 Boiler Drawing D 1 Ashtray 2 Bottom door 3 Upper door 4 Heat exchanger plates 5 Honeywel draught control unit 6 Smoke flue outlet 7 Flue damper 8 Hot water outlet (DN 40) 9 Water grate 10 Return water inlet (DN 40) 11 Inlet opening...
- Page 10 Boiler Wiring Scheme The above figure shows an example of how the boiler can be connected to a heating system using a 4-way valve. There are, however, many other types of connections. For more information please contact appropriate qualified personnel or companies authorized to perform such functions.
-
Page 11: Warranty Certificate
12. In-warranty and out-of-warranty servicing is provided by: MAGA s.r.o. S. Kollára 86 979 01 Čerenčany-Rimavská Sobota Slovak Republic Tel / fax: 047 / 56 34798 Mobile Phone: 0905 / 543 218 0908 / 942 452 e-mail: magasro@magasro.sk www.magasro.sk Or a trained service technician. - Page 12 Instruction for Purchaser - Warranty and Purchaser's Complaint Terms and Conditions: 1) A complaint concerning the (in)completeness of delivery should be filed with the supplier in conformity with SR Commercial Code and SR Civil Code. 2) The manufacturer provides a warranty of 24 (twenty-four) months of the date of sale to the end user, provided, however, that the minimum return water temperature of 60ºC is maintained.
- Page 13 Record of In-warranty and Out-of-warranty Repairs Customer’s Date Record Service Provided Business Name : Entered (stamp and signature) Signature...
-
Page 14: Declaration Of Conformity
Declaration of Conformity Issued pursuant to Article 12 , par. 3, letter a) of the Act 264/1999 Coll. and 97/23/EC (Pressure Equipment Directive) We, MAGA s.r.o. S. KOLLÁRA 86 ČERENČANY SK 979 01 RIMAVSKÁ SOBOTA SLOVAK REPUBLIC VAT ID#: SK 2020075904 Hereby declare under our sole responsibility that the below products comply with the requirements of technical standards;... - Page 15 MAGA s.r.o., Samuela Kollára 86, 979 01 Čerenčany, Slovak Republic. Mobile: +421 917 465 298 www.magasro.sk, e-mail: sales@magasro.sk CUSTOMER INFORMATION SHEET Name: ..................Surname: ................Company: ..................Address: ..................(street, house number) ..................(City) ..................(Postal Code/ZIP) Telephone/Mobile Phone: ................
