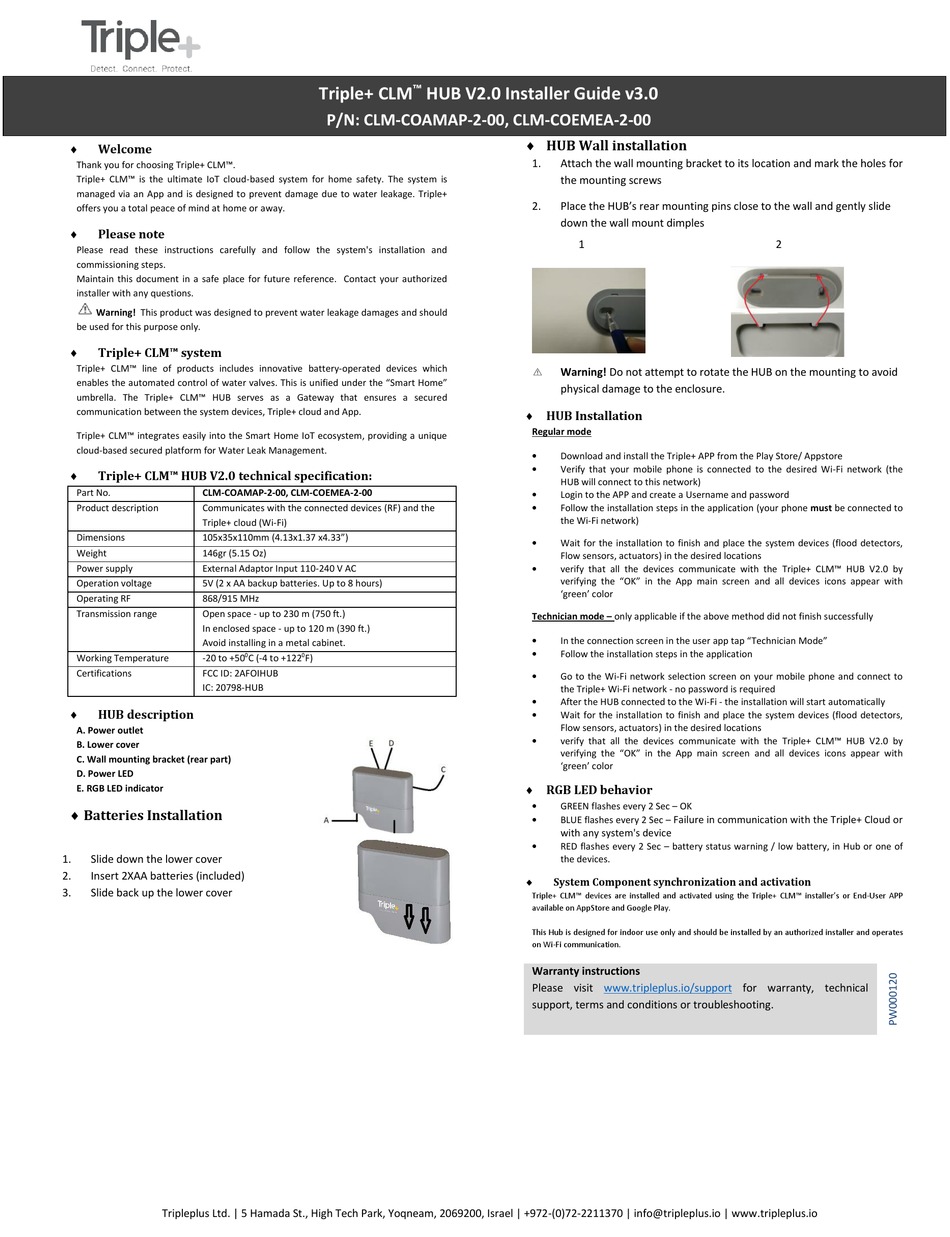

Triple Plus CLM HUB V2.0 Installer's Manual



Welcome

Thank you for choosing Triple+ CLM™.
Triple+ CLM™ is the ultimate IoT cloud-based system for home safety. The system is
managed via an App and is designed to prevent damage due to water leakage. Triple+
offers you a total peace of mind at home or away.


Please note

Please read these instructions carefully and follow the system's installation and
commissioning steps.
Maintain this document in a safe place for future reference. Contact your authorized
installer with any questions.
Warning! This product was designed to prevent water leakage damages and should
be used for this purpose only.

Triple+ CLM™ system
Triple+ CLM™ line of products includes innovative battery-operated devices which
enables the automated control of water valves. This is unified under the "Smart Home"
umbrella. The Triple+ CLM™ HUB serves as a Gateway that ensures a secured
communication between the system devices, Triple+ cloud and App.
Triple+ CLM™ integrates easily into the Smart Home IoT ecosystem, providing a unique
cloud-based secured platform for Water Leak Management.

Triple+ CLM™ HUB V2.0 technical specification:
Part No. CLM-COAMAP-2-00, CLM-COEMEA-2-00
Product description Communicates with the connected devices (RF) and the
Triple+ cloud (Wi-Fi)
Dimensions 105x35x110mm (4.13x1.37 x4.33")
Weight 146gr (5.15 Oz)
Power supply External Adaptor Input 110-240 V AC
Operation voltage 5V (2 x AA backup batteries. Up to 8 hours)
Operating RF 868/915 MHz
Transmission range Open space - up to 230 m (750 ft.)
In enclosed space - up to 120 m (390 ft.)
Avoid installing in a metal cabinet.
Working Temperature -20 to +50
Certifications FCC ID: 2AFOIHUB
IC: 20798-HUB


HUB description

A. Power outlet
B. Lower cover
C. Wall mounting bracket (rear part)
D. Power LED
E. RGB LED indicator
 Batteries Installation
1. Slide down the lower cover
2. Insert 2XAA batteries (included)
3. Slide back up the lower cover
Tripleplus Ltd. | 5 Hamada St., High Tech Park, Yoqneam, 2069200, Israel | +972-(0)72-2211370 | info@tripleplus.io | www.tripleplus.io
™
Triple+ CLM
P/N: CLM-COAMAP-2-00, CLM-COEMEA-2-00
0 0
C (-4 to +122 F)
HUB V2.0 Installer Guide v3.0
 HUB Wall installation
1. Attach the wall mounting bracket to its location and mark the holes for
the mounting screws
2. Place the HUB's rear mounting pins close to the wall and gently slide
down the wall mount dimples
1
Warning! Do not attempt to rotate the HUB on the mounting to avoid
physical damage to the enclosure.
 HUB Installation
Regular mode

Download and install the Triple+ APP from the Play Store/ Appstore

Verify that your mobile phone is connected to the desired Wi-Fi network (the
HUB will connect to this network)

Login to the APP and create a Username and password

Follow the installation steps in the application (your phone must be connected to
the Wi-Fi network)

Wait for the installation to finish and place the system devices (flood detectors,
Flow sensors, actuators) in the desired locations

verify that all the devices communicate with the Triple+ CLM™ HUB V2.0 by
verifying the "OK" in the App main screen and all devices icons appear with
'green' color
Technician mode – only applicable if the above method did not finish successfully

In the connection screen in the user app tap "Technician Mode"

Follow the installation steps in the application

Go to the Wi-Fi network selection screen on your mobile phone and connect to
the Triple+ Wi-Fi network - no password is required

After the HUB connected to the Wi-Fi - the installation will start automatically

Wait for the installation to finish and place the system devices (flood detectors,
Flow sensors, actuators) in the desired locations

verify that all the devices communicate with the Triple+ CLM™ HUB V2.0 by
verifying the "OK" in the App main screen and all devices icons appear with
'green' color
 RGB LED behavior

GREEN flashes every 2 Sec – OK

BLUE flashes every 2 Sec –
with any system's device

RED flashes every 2 Sec – battery status warning / low battery, in Hub or one of
the devices.


System Component synchronization and activation

Triple+ CLM™ devices are installed and activated using the Triple+ CLM™ installer's or End-User APP
available on AppStore and Google Play.
This Hub is designed for indoor use only and should be installed by an authorized installer and operates
on Wi-Fi communication.
Warranty instructions
Please visit www.tripleplus.io/support
support, terms and conditions or troubleshooting.
2
Failure in communication with the Triple+ Cloud or
for warranty, technical
