Summary of Contents for Eddyfi Technologies Floormap X

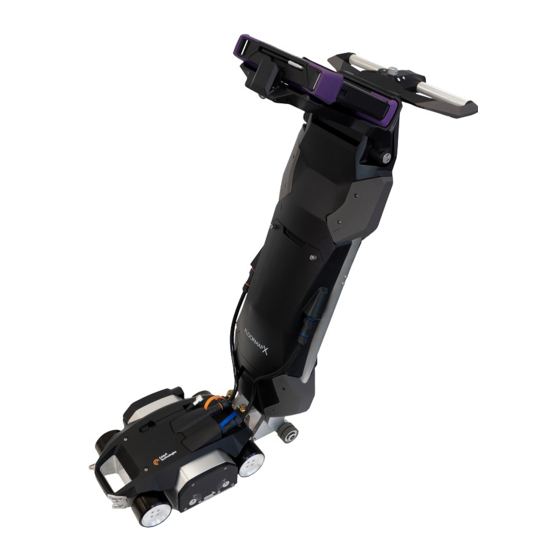

- Page 1 Getting Started Floormap ® MFL Array Tank Floor Inspection Solution...
-
Page 2: Table Of Contents
Table of Contents 1. General ......................3 2. What's is in the Box ..................... 5 3. Component Overview ................... 5 Main Frame Overview ........................5 User Control Overview ........................6 Tablet Overview ........................... 6 Scanner Battery and Compartment ....................7 4. -
Page 3: General
1. General Welcome! To ensure you remain safe during operation please refer to the precautions set out below, which must always be adhered to: General Precautions The following precautions must always be observed when using the FloormapX system. Please make sure that you review them before turning on the system. - Page 4 will still be some low-level residual magnetism around the system in places that may attract small ferromagnetic items. Removal / Deployment Due to the powerful magnets involved, care must be taken when using the FloormapX tank floor scanner as the system may exhibit a strong force and present a finger trap hazard. Care must always be taken when handling and using the FloormapX system including when operating the adjustable bridge.
-
Page 5: What's Is In The Box
2. What's is in the Box Scanning Head Box • FloormapX scanning head. • Documentation. Main Chassis Box • FloormapX Main Frame. • FloormapX User Control. • Cables – motorization and sensor probe cables. • FloormapX Tablet with stylus and embedded SIMS GO acquisition software. •... -
Page 6: User Control Overview
User Control Overview Below a close-up of the User Control is provided. Tablet Overview The FloormapX tablet hard buttons can be used to simplify operation and increase efficiency. In the table below see the button actions. Short press = open indication list Select active view Long press = open full indication list Zoom and move to selected indication... -
Page 7: Scanner Battery And Compartment
Scanner Battery and Compartment The scanner is battery powered and the SIMS GO software displays the icon for the battery level. Battery locking Total Battery Battery Icon Battery Status Charge Battery Flashing red battery Empty 20% and lower (in active slot) 1 Red bar Very Low 20% to 35%... -
Page 8: Typical Inspection Workflows
5. Typical Inspection Workflows Depending upon the inspection workflow adopted and the inspection requirements the SIMS GO software can be adapted to meet your inspection needs. Below are suggested SIMS GO screening or mapping workflows. Screening Inspection Workflow Mapping Inspection Workflow... -
Page 9: Sims Go Software Overview
6. SIMS GO Software Overview Below we identify each of the major software screens encountered in the SIMS GO software Inspection Here the inspection and asset details are entered. The asset details Tank Diameter, Bottom Plate Thickness and Annular Plate thickness are required as they aid you during the inspection. -
Page 10: Plate View
Plate View Here you can analyse, edit, and verify the captured inspection data on the plate. The indication list can be viewed and used to validate and edit any acquired data. Any additional indications, found during the inspection, can also be included on the plate. It is also possible to select tracks to view in the scan window. -
Page 11: Indication List
The information in this document is accurate as of its publication. Actual products may differ from those presented herein. © 2021 Eddyfi UK Ltd, Eddyfi NDT inc, and Eddyfi Technologies, Eddyfi, Silverwing, FloormapX, SIMS GO and SIMS PRO, and their associated logos are trademarks or registered trademarks of Eddyfi in the United States and/or other countries.
