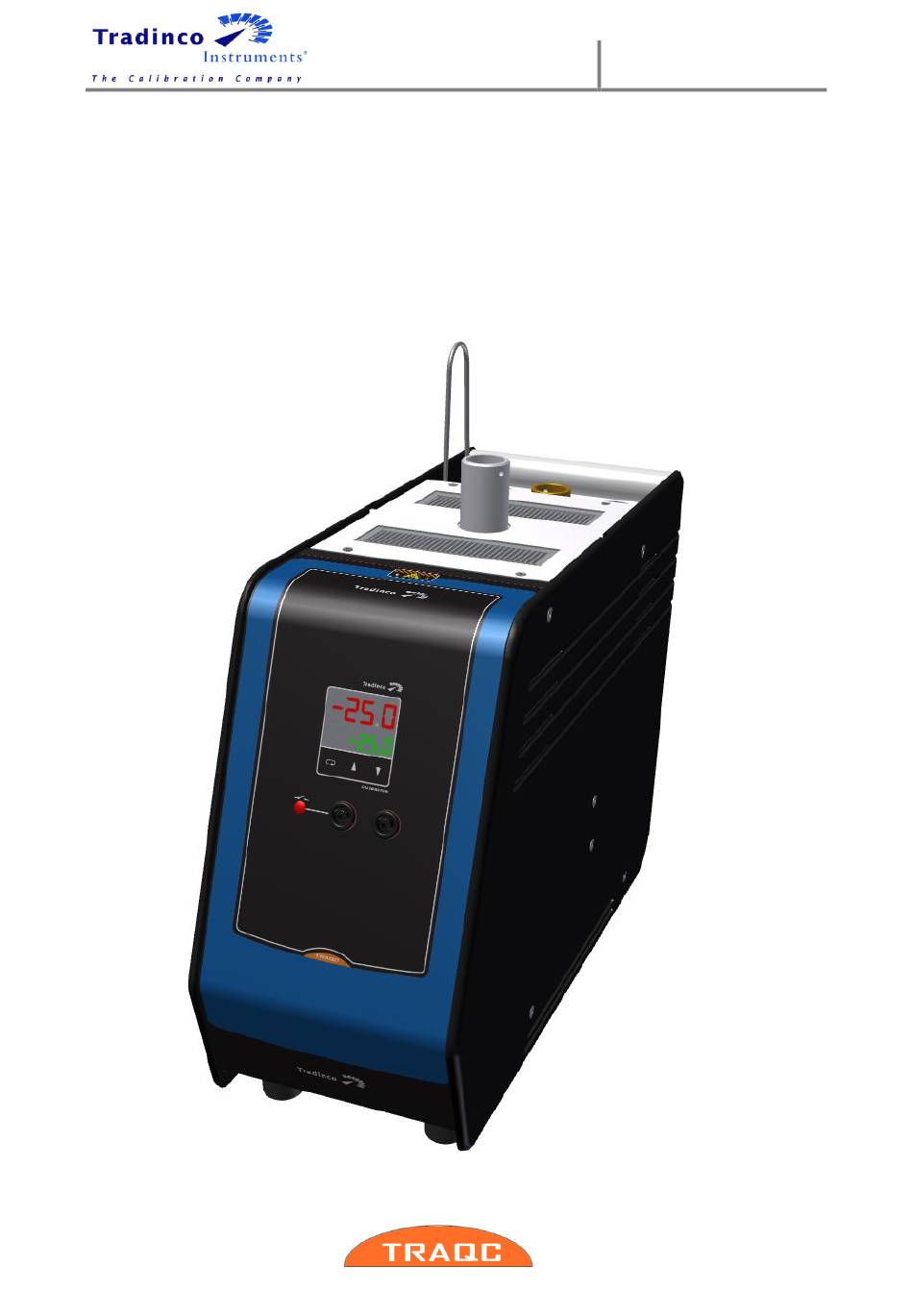

- Page 1 User Manual TRAQC-3 LL TRAQC-3 LL Dry block Calibrator User Manual page : 1 TRAQC-3 LL 12/2018 EN Rev.5...
-
Page 2: Table Of Contents
TRAQC-3 LL ................... 10 Temperature switch ................ 12 End of use ..................12 Maintenance..................13 Cleaning TRAQC-3 LL heat block well and inserts: ....... 13 Cleaning the fan grille: ..............13 External cleaning: ................13 Fuse ....................14 Storage and/or shipping ..............14 Recalibration .................. -
Page 3: General
Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages. -

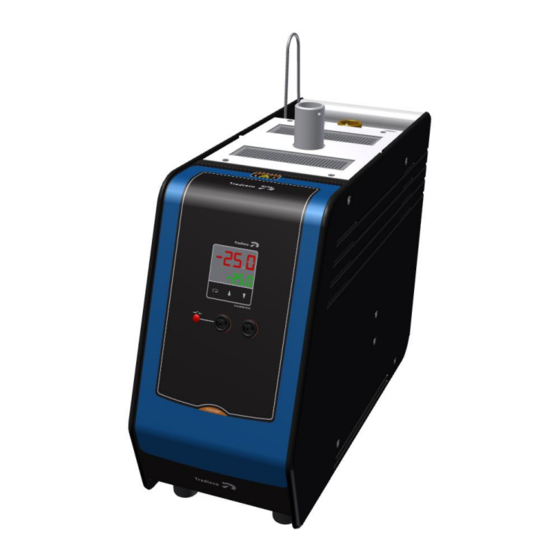

Page 4: Traqc-3 Ll Description
RS232 communication interface. The aluminum housing is equipped with a carrying handle. Up to two inserts, insert puller and insulating tube can be stored inside the housing of the TRAQC-3 LL calibrator Dimensions are (LxWxH) 399.3x149.3x298mm (399.3x143.3x346mm including insulation tube) and the weight is approximately 11.5 kg. -
Page 5: Ce Electrical Safety Directive 2014/35/Eu
User Manual TRAQC-3 LL 1.5 CE Electrical Safety Directive 2014/35/EU The electrical part of the TRAQC-3 LL meets the regulations according to the standard listed below: EN 61010-1 : 2010 The unit is CE marked accordingly. Symbols Used Warning for conditions or practices that could result in personal injury, loss of life and/or in damage to the product or other property. -
Page 6: Important Knowledge
Again this is often overlooked but an important factor in determining the uncertainty of a calibration. Once one is aware of this issue one can easily take appropriate counter measures. page : 6 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 7: Functions And Connections
User Manual TRAQC-3 LL 3. Functions and connections 3.1 Front 1) Display 2) Pushbutton used for factory settings 3) Switching indicator led 4) Up and down pushbuttons 5) Temperature switch 4mm sockets page : 7 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 8: Top
User Manual TRAQC-3 LL 3.2 Top 1) Insert grabber 2) Insulation tube storage hole 3) Insert storage holes 4) Carrying handle 5) Heat block well 6) Upper grill page : 8 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 9: Back
User Manual TRAQC-3 LL 3.3 Back 1) 9 Pin RS232 port 2) ON/OFF Switch 3) Fuse drawer 4) Mains power cord connector 5) Carrying handle page : 9 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 10: Operating Instructions
Note: Please observe proper grounding of the instrument. Use the supplied power cord if possible. Be careful, the top parts around the heat block of the TRAQC-3 LL, especially the “upper grill” can become hot. Also the air above the instrument heats up. When operating, be careful not to burn yourself and that the heated air can freely flow into the room without damaging/ interfering anything. - Page 11 After the unit has reached its set-point the specified accuracy is reached after 5 till 10 minutes. Observe at least 20 minutes stabilisation time when the set temperature is reached, in order to achieve the specified stabilization accuracy. page : 11 TRAQC-3 LL 12/2018 EN Rev.5...
-
Page 12: Temperature Switch
10 to 30°C. In order to cool down or heat up down the TRAQC-3 LL, set the set temperature around room temperature. When a temperature between 10°C and 30°C is reached, turn off the TRAQC-3 LL page : 12 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 13: Maintenance
Clean the grille at regular intervals (vacuuming or brushing) depending on the level of air pollution. 5.3 External cleaning: Clean the outside of the TRAQC-3 LL with a damp cloth and some water or with a solvent free and mild cleaning agent. page : 13... -
Page 14: Fuse
Two Fuses: 3.15A antisurge, 230 VAC must be used. 5.5 Storage and/or shipping Before storage and/or shipping the TRAQC-3 LL must be cooled to a temperature between 10°C and 30°C. The procedure described in chapter 4.3. When a temperature between 10°C and 30°C is reached, turn off the TRAQC-3 LL and unplug the mains power cord. -
Page 15: Product Specifications
Heating time ambient to 130 °C : 20 minutes Cooling time 130 °C to ambient : 30 minutes Cooling time ambient to -30°C : 45 minutes All specifications : Ambient temperature 20°C ±2°C 6.3 Detail of insert page : 15 TRAQC-3 LL 12/2018 EN Rev.5... -
Page 16: Option And Accessories
A rugged carrying case which offers maximum protection during transport. This case is watertight and is secured by two safety latches. It stores the TRAQC-3 LL, up to 3 inserts, insert grabber, mains power cord, cleaning set, manual and calibration certificate. - Page 17 User Manual TRAQC-3 LL Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com info@tradinco.com page : 17 TRAQC-3 LL 12/2018 EN Rev.5...
