Summary of Contents for Tradinco TRAQC-3 FM

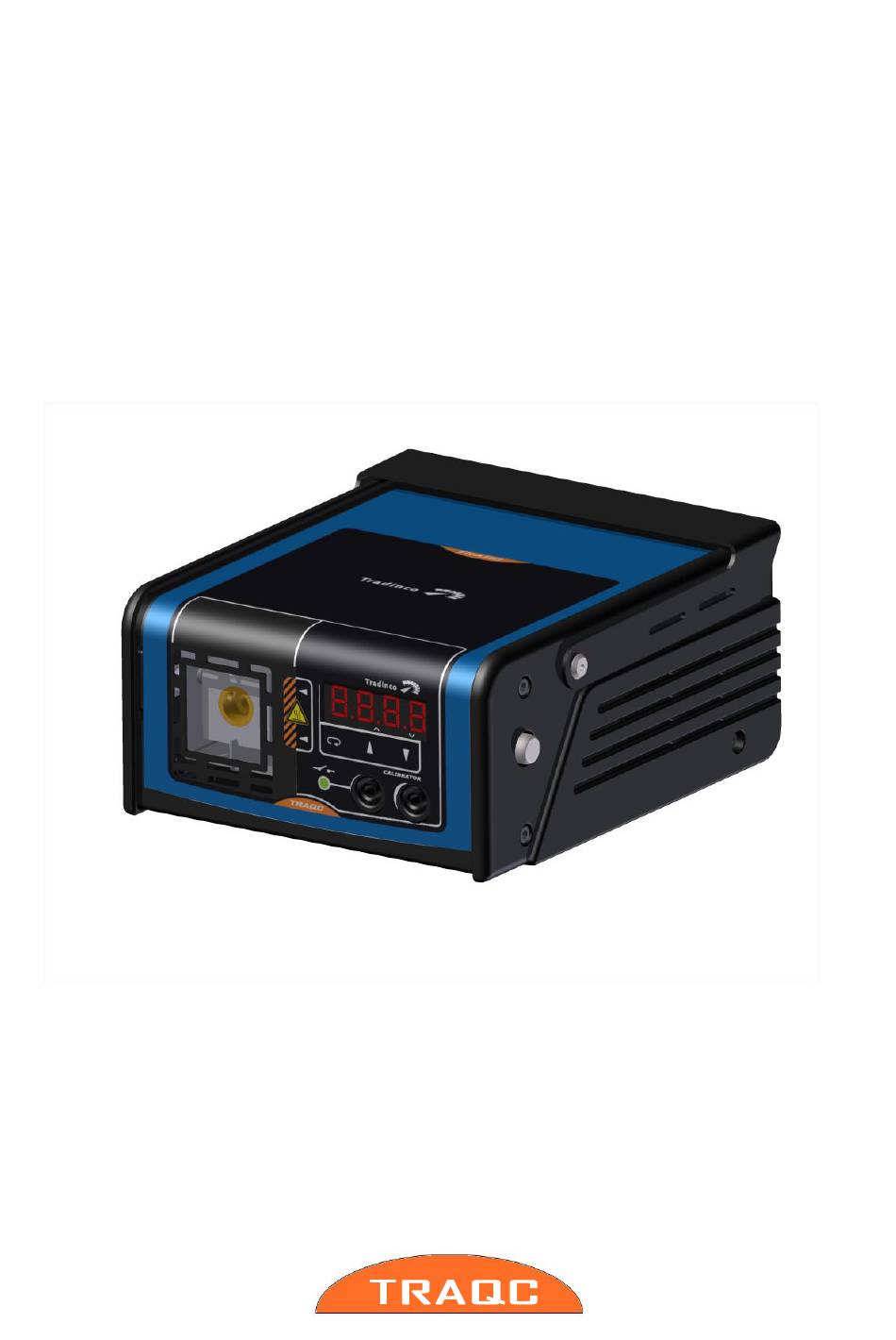

- Page 1 TRAQC-3 FM Temperature Calibrator User Manual...
-
Page 2: Table Of Contents
Functions and connections ..............6 2.4. Operating instructions ..............7 2.5. Temperature switch ................. 8 2.6. Specifications .................. 9 2.7. Maintenance ..................9 2.8. Storage ..................10 2.9. Recalibration .................. 10 2.10. Optional accessories ................ 10 page : 2 TRAQC-3 FM 09/2016 (R8) -
Page 3: General
Chamber of Commerce and Industry in Amerfoort on 18 January 1993. A copy is available on request TRADINCO INSTRUMENTS warrants that this product will be free from defects in materials workmanship for a period of 12 months from the date of shipment. If any such... -
Page 4: Symbols Used
: info@tradinco.com 1.4. Scope of this manual This manual contains information for instruments built since September 2008. This manual is a users manual for operating the instrument, it is not a calibration instruction manual. page : 4 TRAQC-3 FM 09/2016 (R8) -
Page 5: Introduction
In order to provide optimum use of the TRAQC-3 all control functions are available through a RS232 interface. Tradinco AutoCal Software for using the TRAQC-3 with a PC is also available. The MS Windows based software is completely 'MENU' controlled and allows the user to program pre-fixed calibration routines and run calibration routines fully automatically. -
Page 6: Functions And Connections
User Manual TRAQC-3 FM 2.3. Functions and connections 1) Heat indicator 2) Up and down push buttons 3) Hole for inserts 4) Switching indicator Led 5) Temp. switch terminals 4mm 6) Voltage selector 7) ON/OF Switch 8) Fuse 9) 9 Pin RS232 port... -
Page 7: Operating Instructions
User Manual TRAQC-3 FM 2.4. Operating instructions Select the correct voltage by means of the voltage selector on the back of the instrument. Note : Although the instrument is well protected against incorrect setting of voltage, this may result in permanent damage of electronics or incorrect measurements. -
Page 8: Temperature Switch
User Manual TRAQC-3 FM For decreasing the temperature the same procedure as described above must be followed. Note : Please do not disconnect or switch off instrument until the indicated temperature of the block is below 50 °C. Note : The environment (temperature and draught), length and the mass of the probe may influence the measurement considerably. -
Page 9: Specifications
User Manual TRAQC-3 FM 2.6. Specifications Temperature range : Ambient +5°C to 375°C. Resolution : 0,1 °C/°F. Accuracy : Over full range better than +/- 0,4 °C, typ. +/- 0.2°C Stability : +/- 0,05 °C. Heating time : Ambient to 300 °C 5.75 minutes. -
Page 10: Storage
The TRAQC-3 should, depending on the application situation, be inspected at appropriate intervals. We recommend you to return the calibrator to Tradinco at intervals of max. 12 months for recalibration and service. 2.10. Optional accessories... - Page 11 User Manual TRAQC-3 FM Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com Email info@tradinco.com page : 11 TRAQC-3 LH 10/2014 EN Rev.2...
