Behringer VP1 Manual

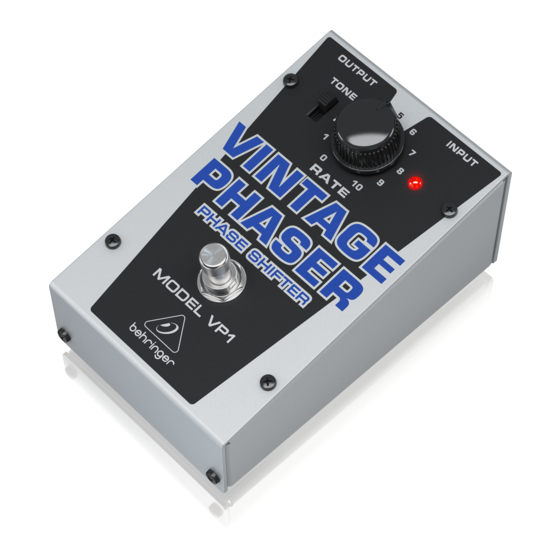

VINTAGE PHASER VP1
Authentic Vintage-Style Phase Shifter
(6)
(2)
(1)
Thank you for showing your confidence in us by purchasing the Behringer
VINTAGE PHASER VP1. This high-quality effect pedal is designed for all
musicians who want to their sound some extra pep. Thanks to its high-
performance features you get authentic and classic three dimensional
phase shifting—from rapid rotary speaker to impressive jet plane effects.
With the phaser, a second, phase-shifted signal is added to the original
audio signal. The resulting sound is thicker and above all livelier.
This effect is often used for guitar sounds and keyboards. In the '70s,
it was also extensively used for other instruments like electric pianos.

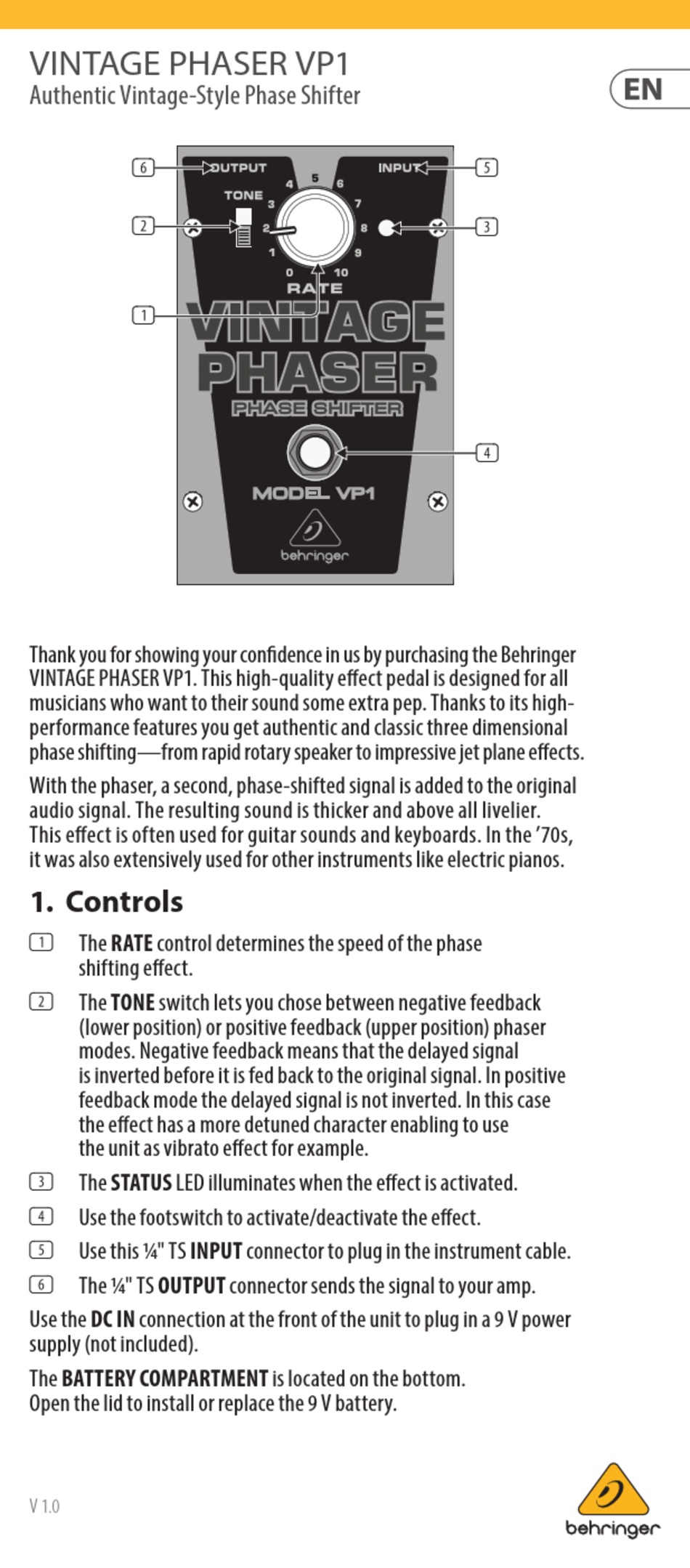

1. Controls
The RATE control determines the speed of the phase
(1)
shifting effect.
The TONE switch lets you chose between negative feedback
(2)
(lower position) or positive feedback (upper position) phaser
modes. Negative feedback means that the delayed signal
is inverted before it is fed back to the original signal. In positive
feedback mode the delayed signal is not inverted. In this case
the effect has a more detuned character enabling to use
the unit as vibrato effect for example.
The STATUS LED illuminates when the effect is activated.
(3)
Use the footswitch to activate/deactivate the effect.
(4)
Use this ¼" TS INPUT connector to plug in the instrument cable.
(5)
The ¼" TS OUTPUT connector sends the signal to your amp.
(6)
Use the DC IN connection at the front of the unit to plug in a 9 V power
supply (not included).
The BATTERY COMPARTMENT is located on the bottom.
Open the lid to install or replace the 9 V battery.
