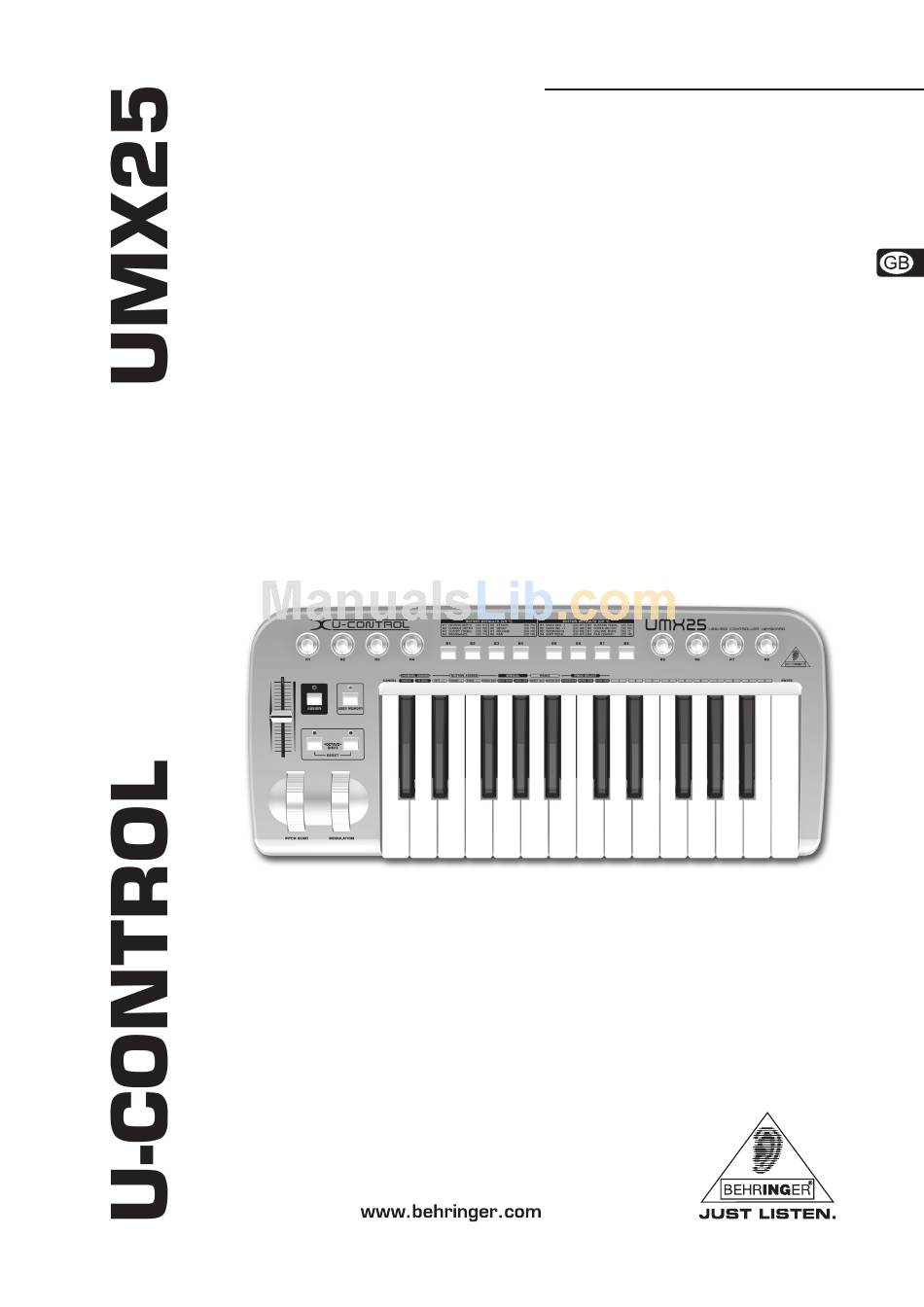

- Page 1 User’s Manual Version 1.0 January 2006...
- Page 2 U-CONTROL UMX25 IMPORTANT SAFETY PRECAUTIONS CAUTION: To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts inside; refer servicing to qualified personnel. Only qualified personnel may perform repairs. WARNING: The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Page 3 Runs via USB bus, batteries or a power adapter (not included) High-quality components and exceptionally rugged construction ensure long life Conceived and designed by BEHRINGER Germany All Trademarks mentioned belong to their respective owners and are not affiliated with BEHRINGER U-CONTROL UMX25 ®...
-
Page 4: Table Of Contents
It is our philosophy to share our enjoyment with you, because you are the most important member of the BEHRINGER team. With your highly competent suggestions for new products you’ve made a significant contribution to shaping our company and making it successful. -
Page 5: Introduction
UMX25 over an external power pack. Best suited here is the BEHRINGER POWERSUPPLY PSU-SB. If you use a different power supply, please observe the correct operational data (9 V DC;... -
Page 6: Online Registration
(alternatively www.behringer.de) and kindly read the terms and conditions of our warranty carefully. Should your BEHRINGER product malfunction, our goal is to have it repaired as quickly as possible. To arrange for warranty service, please contact the retailer from whom the equipment was purchased. -
Page 7: Usb Mode And Stand-Alone Operation
What settings do I have to make? Where? How? Basically, which control element generates which controller must be set on the UMX25, and how arriving controller commands should be interpreted must be set on the receiving device. Regarding controller assignment, there are two possible principles: You use the preset controller configuration set in the factory (see fig. -
Page 8: Operation
U-CONTROL UMX25 Keyboard legend: Informs you about the special functions performed by individual keys on the keyboard. The individual elements of the keyboard legend are described in detail in chapter “4 OPERATION”. Operation Octave shift Shift one octave press once up or down press 2nd Shift 2 octaves... -
Page 9: Assign Mode
The following control element assignments including channel information can be permanently stored in the USER MEMORY: - FOOT SWITCH connector - OCTAVE SHIFT button - VOLUME/DATA fader - PITCH BEND wheel - MODULATION wheel - Rotary controls R1 - R8 - Buttons B1 - B8 4.2 ASSIGN MODE As already mentioned in the preceding chapters, the ASSIGN... -
Page 10: Local Off
U-CONTROL UMX25 Release the ASSIGN button. The device automatically enters Play mode again. The SNAPSHOT instruction is sent immediately after playing the keyboard. 4.2.6 LOCAL OFF The effect of LOCAL OFF is that any data entries made with the control elements will NOT be passed on to the MIDI OUT connector or the USB OUT. -
Page 11: Other Functions Of The Octave Shift Buttons
In steps 5 and 6 you have defined the bank from which the desired program will be selected. Now define the program itself: Press the button followed by the number keys on the keyboard to enter the program number of your choice. Only values between 0 and 127 can be entered. -
Page 12: Range Definition
DIMENSIONS/WEIGHT Dimensions (W x H x L) Weight BEHRINGER is constantly striving to manintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated. -
Page 13: Appendix
U-CONTROL UMX25 6. APPENDIX Tab. 6.1: MIDI-Controller overview 6. APPENDIX... -
Page 14: Warranty
No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of BEHRINGER Spezielle ®...
