- Page 1 Follow us Vmoto Soco Scan QR code to Please do not use bike before you read this manual carefully and know function of it. www.vmotosoco.com download e-user manual Please keep this manual carefully.
- Page 2 Fully understand the information in this manual, include but not limited to the relevant instruction, precautions and warnings. Fully understand the operation and contingency measures of CPX smart electric bike. Be Fully aware of warning labels of CPX smart electric bike.
- Page 3 Please turn off the power and remove the key immediately after use. Do not allow children to play, so as to avoid loss to your family and property. Perform a basic check each time before riding, and regularly go to SOCO Service Center for maintenance. Check before riding. If there is any abnormality, please timely carry out maintenance or seek professional maintenance.
- Page 4 QUICK START Check accessories items Intelligent remote control Certificate,Operating manual Rear view mirrors Rear view mirror wrench Charger I-shaped rubber Hexagon bolt Front windshield...
- Page 5 QUICK START Assemble parts...
- Page 6 QUICK START Install battery pack Open battery Put in the battery pack. Plug-in the main Put the segregation compartment under the connector,switch on board back and put seat and remove the circuit protector. down the seat. segregation board.
- Page 7 QUICK START IGNITE CPX Press ‘UNLOCK’ on remote Wear helmet. Ride on CPX,kick side control. stand and main stand out. Press ‘Parking’ button, Turn accelerator gently, Press ‘Power’on remote unparking CPX, parking CPX run. control or turn the key to symbol off, READY light...
- Page 8 Only IOS and Android are currently available now,please confirm your smart phone operating system in advance. IOS system:APP only supports Apple ISO 9.0 system and above. Android system: APP only supports Android 4.4 system and above. Download and install the SUPER SOCO APP by QR code in this manual or key box. SUPERSOCO...
-
Page 9: Table Of Contents
CONTENTS DESCRIPTION OF COMPONENTS AND PARTS OPERATION GUIDE RIDING GUIDE BATTERY USE INSTRUCTION APP INSTRUCTION MAINTENANCE FAQ & TROUBLE SHOOTING CUSTOMER SERVICE... -
Page 10: Description Of Components And Parts

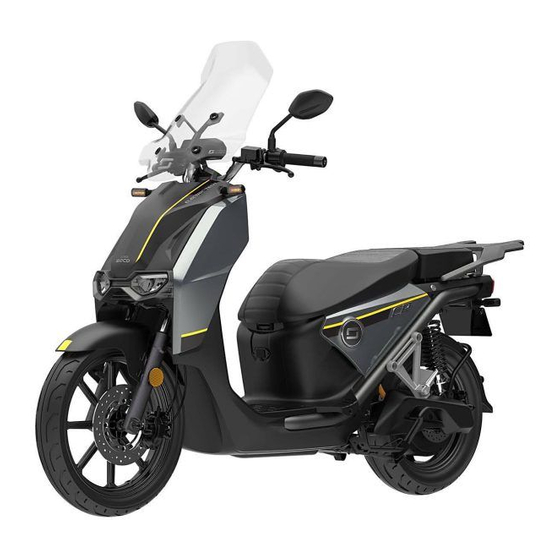

DESCRIPTION OF COMPONENTS AND PARTS Schematic diagram of components and parts SIDE VIEW Headlamp OBD checking Rear footrest FOC vector controller Rear license bracket Aluminum rim Rear swing arm Main stand Brake system Side stand... - Page 11 DESCRIPTION OF COMPONENTS AND PARTS Schematic diagram of components and parts TOP VIEW Accelerator Front brake lever Brake cylinder Right-handlebar switch assy Winker Deputy seat Speedometer assy Main seat Windshield Left-handlebar switch assy Rear brake lever Rear mirror...
- Page 12 DESCRIPTION OF COMPONENTS AND PARTS DESCRIPTION OF COMPONENTS AND PARTS Speed Total mileage Gear display/Forward,reverse status display Display current speed Display the total mileage Display current gear/Forward,reverse status. Time Power display bar Controller temperature Display current time Display current A、B battery power Display current controller temperature Endurance Mileage Battery percentage display...
- Page 13 Parking Light OBD checking error codes NORMAL Mode ECO Mode SPORT Mode See page 16 FAQ & TROUBLE SHOOTING Start lighting READY CPX in moving forward position CPX in reverse position CPX is ready to ride when ready in display...
-
Page 14: Operation Guide
OPERATION GUIDE LEFT SWITCH High/low beam switch WINKER SWITCH HORN SWITCH Up position, high beam on; Turn to left, left winker on; Press, horn on; release, horn off. Down position, low beam on. Turn to right, right winker on. - Page 15 OPERATION GUIDE RIGHT SWITCH Parking switch Mode switch Forward reverse switch CPX is set with 3 modes: 1: ECO Press the parking switch up,CPX at Gently press two times forward reverse switch mode 2: NORMAL mode 3: SPORT parking position,parking R,display mode number change to “F”,CPX is...
- Page 16 OPERATION GUIDE c. REMOTE CONTROL CPX use second generation smart remote control, within 50 meter radius, press the button, can lock or unlock your CPX. 1. Key less start After unlocking CPX via remote control, press the “POWER”, power on, press again, power off...
- Page 17 OPERATION GUIDE d. Mechanical key 1. Mechanical key start 2. HANDLEBAR LOCK After unlocking CPX via remote 1.CPX parking position, turn control,turn the key to handlebar to the extreme left position, “ON”position,power on,turn the key put key in handlebar lock, and turn the back to “OFF”...
- Page 18 Kill switch, protect power, when current over than set range cause by abnormal situation or short circuit, kill switch will stop the connection between battery and CPX automatically, for safety reason. TIPS：For your own safety, please put kill switch at “OFF” position: A.
-
Page 19: Riding Guide
Whether the mirrors are clean and adjust them to the appropriate angle. Whether the brake oil is enough, whether the brake lever and brake system work properly or not. Any exceptions or operational doubts, please contact Super SOCO official dealer’s service center. - Page 20 RIDING GUIDE b. POWER ON Press “UNLOCK” on remote Put on helmet. Riding CPX, kick out side control stand. Press “POWER”or turn the Turn throttle gently, CPX Press ‘Parking’ button, key to on position in ignition run. unparking CPX, parking switch, power on symbol off,READY light...
- Page 21 CPX need to power on under steady standing status. In case any unusual situation, please move the bike to side of the road, in case any dangerous,please don’t restart the bike when it still running or in the middle of the road.
-
Page 22: Battery Use Instruction
BATTERY USE INSTRUCTION a. Charging on-board Connect the charger to CPX charging port. Connect the charger with power supply, during normal charging, red light keeps on. When fully charged, green light keeps on. Battery Charging Display Charging: Red light on. - Page 23 BATTERY USE INSTRUCTION b. External charging Open the seat, switch off circuit protector, take out storage cover. Disconnect the power plug,take out the battery from bike. Connect charger with battery, then connect charger with power supply, charger working, red light keeps on. If only use one battery,please cover the connector cover with another main connector.
- Page 24 BATTERY USE INSTRUCTION c. Storage、maintenance、transport In case long time no use battery, please charge it till 50% (in case battery is empty, charge the battery pack 5 hours is enough). Disconnect the battery from bike when storing them. Store in dry ventilated place, at least charge 4 hours each 2 months.
- Page 25 CPX smart electric bike has GPRS communications, GPS locate and other functions which can be connect to your smart phone. You can manage your bike, query and do other operations by SUPER SOCO APP. At present, the mainstream mobile phone system version is iOS and Android operating system, please confirm the operating system of your smart phone before installation...
-
Page 26: Maintenance
MAINTENANCE Regular maintenance can enhance the service life and driving safety of CPX. Please refer to the following suggestions and take care of your CPX. a. DAILY CLEAN AND MAINTENANCE The new bike must do the first inspection and maintenance in the official SUPER SOCO Service Center when it reaches 1,000 km or two months (whichever comes first). -
Page 27: Faq & Trouble Shooting
5.Change the battery Battery can not be 1.Poor connect of charger plug 1.Check whether the charger plug is well charged connected or not. 2.Do not use right charger. 2.Please use SOCO official charger 3.battery aging or being scrapped 3.Change the battery normally... - Page 28 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Error Causes Solutions Please contact with after-sales service or dealer Error 99 on instrument Controller communication error Please park for a while then start again Error 98 on instrument Controller stops working（possibly over current，blocking，under voltage，over temperature） Please contact with after-sales service or dealer Error 97 on instrument Controller power tube error...
- Page 29 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Error Causes Solutions In case it shows error 90 all the time，stop riding， Error 90 on instrument Battery discharge over current wait for a moment Take out the battery and charge in warm indoor place Error 89 on instrument Charging low temperature Store the battery or e-bike in warm indoor place ，...
- Page 30 COMMON PROBLEMS AND TROUBLESHOOTING METHODS c.Battery troubleshooting Status Errors Causes Solutions Before using Battery no Low battery Charge battery power“start”not on In use When riding with low Low battery，low voltage Charge battery power，power off occurs protection，normal phenomenon when battery capacity drops below 10% In use Error 88 on instrument...
- Page 31 COMMON PROBLEMS AND TROUBLESHOOTING METHODS Status Errors Causes Solutions In use Mileage is different from Official announced mileage is Any questions，please contact official announced the one in special surrounding with after-sales service or and status，related to road dealer. conditions，whether， temperature，wind drag and load.
- Page 33 Apple IOS 9.0 version and above is supported Android 4.4 version and above is supported SUPER SOCO Download APP Bind APP to vehicle 请粘贴 二维码...
- Page 34 3000 6000 9000 12000 15000 18000 21000 24000 Torque CHECK LIST (N·m) 0.5month 6months 12months 18months 24months 30months 36months 42months 48months Brake fluid" "FR 175 KPa Tire pressure and wear" RR 225 KPa" Front and rear lining pad wear" Front and rear brake disc wear" Fasten front axle nut and rear wheel bolt"...
- Page 35 MAINTENANCE RECORD： Content： Date： MAINTENANCE RECORD： Content： Date：...
- Page 36 MAINTENANCE RECORD： Content： Date： MAINTENANCE RECORD： Content： Date：...
- Page 37 MAINTENANCE RECORD： Content： Date： MAINTENANCE RECORD： Content： Date：...
