Summary of Contents for VIEWEG DC 200
- Page 1 VIEWEG Bedienungsanleitung Operating Manual Dosiergerät DC 200 Dispenser DC 200...
-
Page 2: Table Of Contents
1.1 The DC 200 ........ -
Page 3: General Information
The Team of VIEWEG GmbH 1.1 The DC 200 The DC 200 dispensing unit series comprises four models which di er only slightly in their technical versions. For this reason, only the DC 200 is referred to below. The DC 200 is used for the precise control of pneumatically controlled dispensing systems. -
Page 4: Scope Of Delivery
Operating Manual DC 200 VIEWEG 1.3 Scope of delivery The following parts are included in the scope of delivery: operating instructions DC 200 Dispensing unit cold appliance cable 230 V AC (Item no. C-0043) connection hose for compressed air inlet (Item no. -
Page 5: Safety Instructions
Operating Manual DC 200 VIEWEG 2 Safety instructions 2.1 General safety information If this device is used for purposes other than those WARNING described in this operating manual, personal injury or damage to property may result. Only use the device in accordance with the instructions. -
Page 6: About Your Dispensing Unit

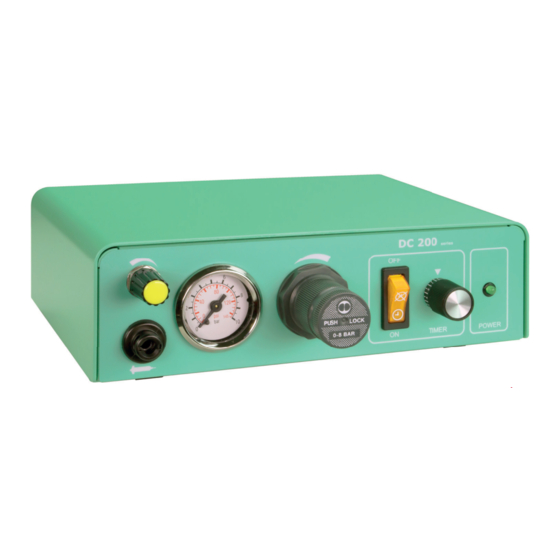

Operating Manual DC 200 VIEWEG 3 About your dispensing unit 1 Setting vacuum suck back 11 Connection for foot switch 2 Pressure gauge for compressed air 12 Mains switch outlet 13 Air outlet from vacuum generation 3 Pressure regulator 14 Fuse 2 A T... -
Page 7: Start & Operation
Connect the cartridge to the adapter like following diagram: • Connect the air tube of the cartridge adapter to the air pressure output of the DC 200 and adjust the pressure fur the cartridge on the front side with the pressure controller. •... -
Page 8: Time Ranges
Operating Manual DC 200 VIEWEG 5 Time Ranges With the potentiometer on the front plate (Scale 0 – 10), the dispensing time can be adjusted. 4 timing ranges are available, which can be selected with the DIP-switch at the bottom of the controller housing:... -
Page 9: Connections
Operating Manual DC 200 VIEWEG 6 Connections After you have done all connections, it should look like follows: Compressed air 1-7 bar Power 230V AC Com- pressed inlet Barrel adapter Foot switch Barrel Dispensing air pressure 7 Disposal At the end of its service life, dispose of the product in accordance with the applicable regulations. -
Page 10: Technical Data
Operating Manual DC 200 VIEWEG 8 Technical data Outer dimensions (W x H x D) 235 x 225 x 75 mm weight approx. 1.25 kg Power supply 85 - 264 V AC 50/60 Hz Internal voltage 24 V DC Dispensing duration 0.01 - 31 sec. -
Page 11: Declaration Of Conformity
Operating Manual DC 200 VIEWEG 10 Declaration of Conformity CE Declaration of Conformity • EC Low Voltage Directive 2014/35/EU • EC Directive Electromagnetic Compatibility 2014/30/EU We hereby declare that the product named below complies with the provisions of the above-mentioned directives and, due to its design and construction, as well as the version marketed by us, complies with the applicable regulations. - Page 12 VIEWEG www.dosieren.de VIEWEG GmbH Dosier- und Mischtechnik Gewerbepark 13 85402 Kranzberg Deutschland / Germany Tel. +49 8166 6784 -0 info@dosieren.de www.dosieren.de...
