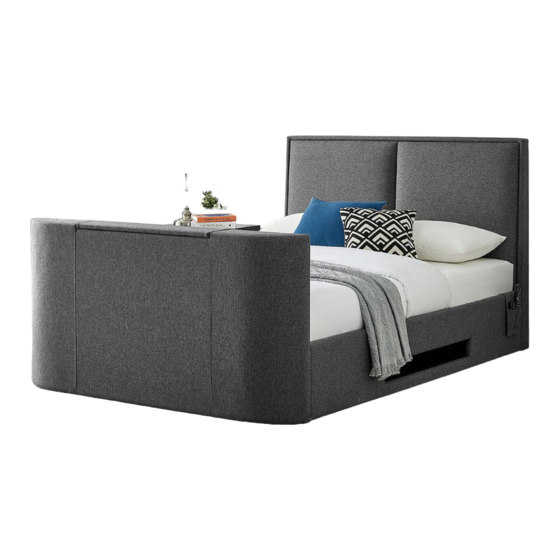

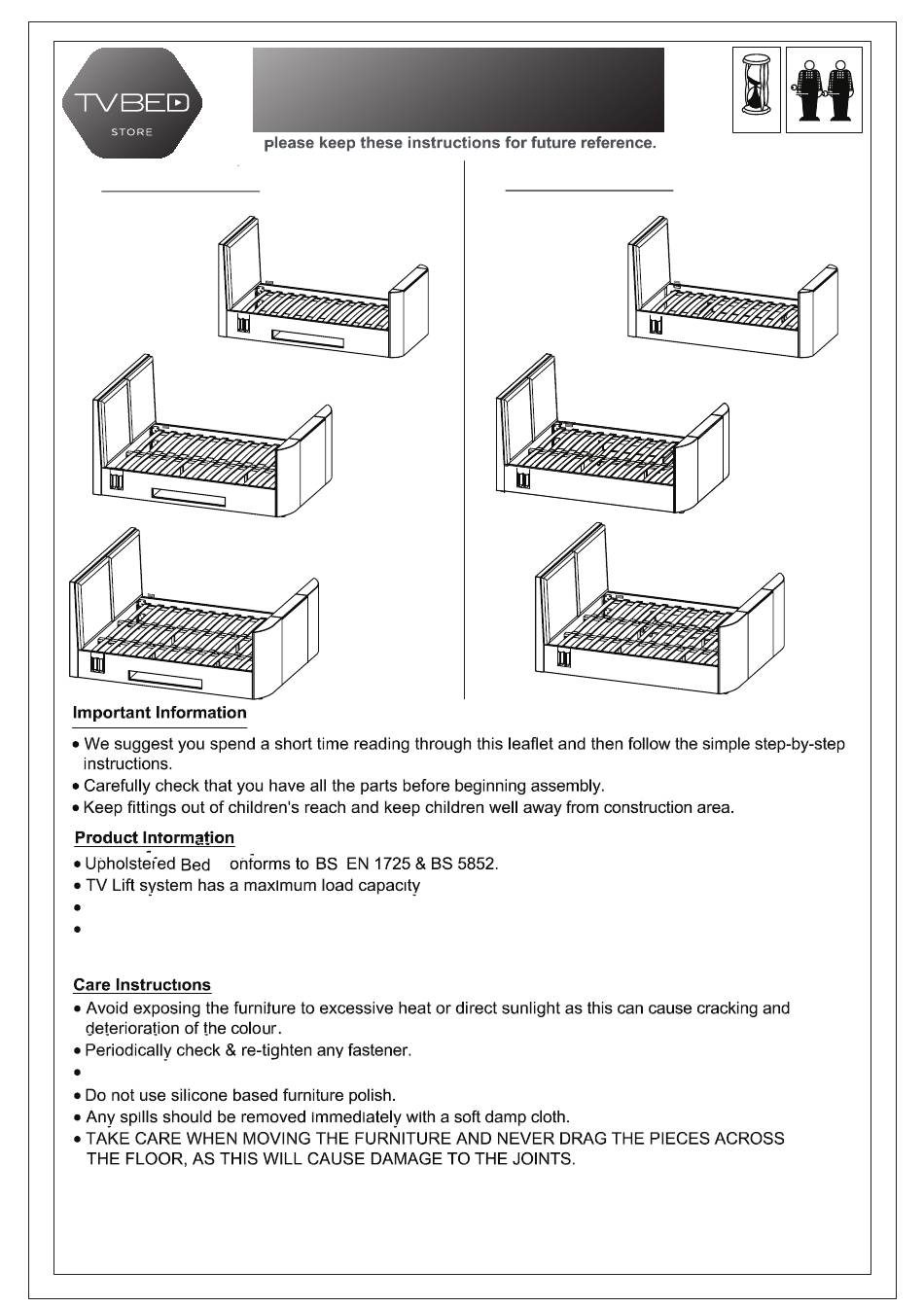

VALENCIA TV BED
ASSEMBLY INSTRUCTIONS
2 Hrs
Media Tray on Right Side
Media Tray on Left Side
Single Size
Single Size
(4)
(3)
Double & King Size
Double & King Size
(4)
(3)
Super King Size
Super King Size
(4)
(3)
c
of 10 Kg
Fitted with SMART slimline LED television with a screen size of 32"
If you need to re-place this TV for any reason, the maximum size cannot be larger than
76 x 45 x 8 (WHD cm)
Periodically remove dust by using a light vacuum cleaner or if your bed is PU, use a soft damp cloth.
We cannot be held responsible for any damage caused to the TV, TV cabling or the TV Bed itself due to
incompatibility of any additional equipment installed by the end-user or due to loose and poorly
installed cables (see Steps 9 & 10 for examples).
Please read this Assembly Instruction carefully and follow the recommendations.
Page 1 of 14
200914
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TV Bedstore VALENCIA
Summary of Contents for TV Bedstore VALENCIA
- Page 1 VALENCIA TV BED ASSEMBLY INSTRUCTIONS 2 Hrs Media Tray on Right Side Media Tray on Left Side Single Size Single Size Double & King Size Double & King Size Super King Size Super King Size of 10 Kg Fitted with SMART slimline LED television with a screen size of 32"...
- Page 2 CARTON 1 - HEADBOARD CARTON 2 - FOOTBOARD , RC for TV Lift & Slats U x1 REMOTE CONTROL FOR INSIDE HERE TV LIFT NOTE: To raise the TV please see Step 8. (unpacking and recovering the RC from the transit packaging). (11) Wooden Slats Single Size King Size...
- Page 3 The following items are in the accessory box, inside Carton 4 Hardware Pack for Bed Assembly B x16 Single Size D x1 A x16 Double & King Size x22 Super King Size Bolts M8x30mm for fitting side rails (3&4) to headboard &...
- Page 4 10mm If Single size was purchased choose which side to fit the media tray then go straight to Step 3A. If Double or King size was purchased please assemble centre support bar shown in this Step. If Super King size was purchased, please assemble centre support bar shown in this Step TWICE. Double &...
- Page 5 Choose which side to fit the Media Tray Double King Super King Size 3&4 1 & 2 Single Size If you purchased Single size only, make certain the bed is square, then tighten the bolts 100%. Double & King Size x4 Double &...
- Page 6 IMPORTANT: MAKE SURE WHEN FITTING THE BARREL NUTS THAT THE HOLE IS IN CORRECT ALIGNMENT WITH THE HOLE IN THE PANEL EDGE. Page 6 of 14...
- Page 7 Connect Main Power Lead (N) to your wall socket - for safety, this must be an earthed supply . Pull the red string and withdraw the TV plug from the duct then push plug into the power socket. Please do do not use this socket for any other equipment, it does not have a constant power supply.
- Page 8 FEED THE HDMI CABLES THOUGH THE DUCT & CONNECT TO TV Only if WiFi reception needs to be improved, unclip antenna & raise as shown in the picture. Do not allow antenna to lean backwards or it shall get trapped & break off. PLUG IN - KEEP ALL CABLES TIGHT USE CLIPS &...
- Page 9 IF YOU NEED TO CONNECT THE AERIAL CABLE (Q), OR ANY OTHER MEDIA CABLES TO THE SOCKETS UNDERNEATH THE TV, PLEASE FOLLOW THESE INSTRUCTIONS . 1) Unplug TV from it's power socket. a x1 2) Loosen the x4 VESA bolts using spanner (a), there is no need to remove these completely.
- Page 10 Carefully re-fit the TV making certain there are no trapped cable and then re-tighten the four VESA bolts, please do not over-tighten. a x1 Page 10 of 14...
- Page 11 Press the “DOWN” button to lower the TV lift. Fit RC holster to left or right side. (14) Page 11 of 14...
- Page 12 Single Size Fix single plastic caps to each end of each slat then place on the slat support rails on both of the side-rails. Align the lugs and tap gently with a light hammer. 3 & 4 Double or King Size Fit double plastic caps to a pair of slats then fix single plastic caps to each end.
- Page 13 Occasionally you may find the radio wave connection between remote control and TV Lift is lost, probably due to atmospheric conditions. In that case please follow these simple instructions: ①. Disconnect all mains electric power to the bed, for at least 60 seconds. ②.
- Page 14 TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers on top of the TV footboard that may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment.
