Assembly - YARDMAX YG1650 Operator's Manual

30
mm
19
mm

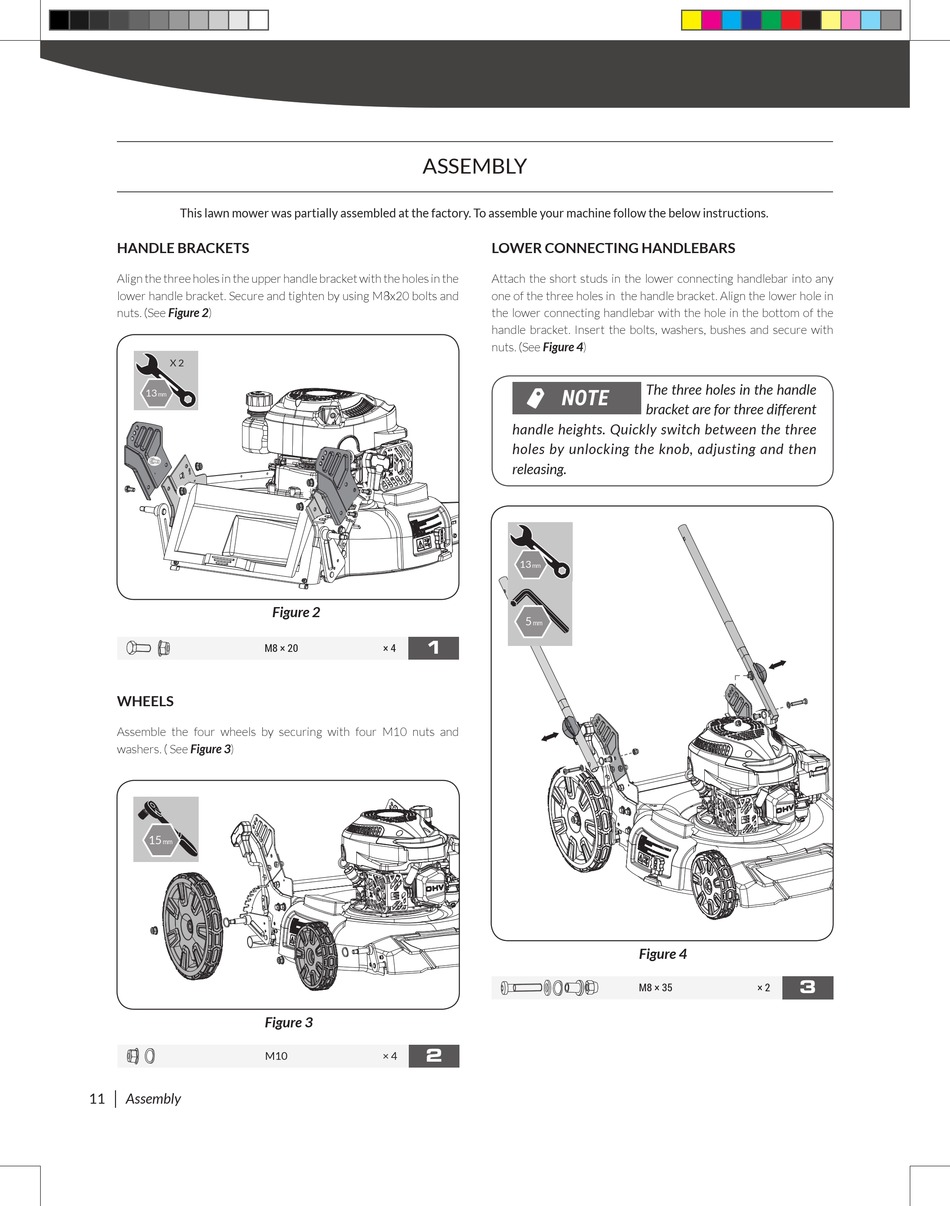

This lawn mower was partially assembled at the factory. To assemble your machine follow the below instructions.
HANDLE BRACKETS
18
mm
Align the three holes in the upper handle bracket with the holes in the
lower handle bracket. Secure and tighten by using M8x20 bolts and
nuts. (See Figure 2)
16
mm
X 2
13
mm
32
mm
M8 × 20
WHEELS
Assemble the four wheels by securing with four M10 nuts and
washers. ( See Figure 3)
15
mm
19
mm
16
mm
Figure 3
M10
32
mm
|
11

Assembly

13
mm
ASSEMBLY
Figure 2
1
× 4
2
× 4
LOWER CONNECTING HANDLEBARS
DANGER
Attach the short studs in the lower connecting handlebar into any
30
mm
one of the three holes in the handle bracket. Align the lower hole in
the lower connecting handlebar with the hole in the bottom of the
WARNING
handle bracket. Insert the bolts, washers, bushes and secure with
nuts. (See Figure 4)
CAUTION
19
mm
The three holes in the handle
NOTE
bracket are for three different
18
handle heights. Quickly switch between the three
mm
holes by unlocking the knob, adjusting and then
releasing.
16
mm
13
mm
5
mm
32
mm
Figure 4
M8 × 35
3
× 2
