SyxthSense DCPA80BC Quick Start Manual

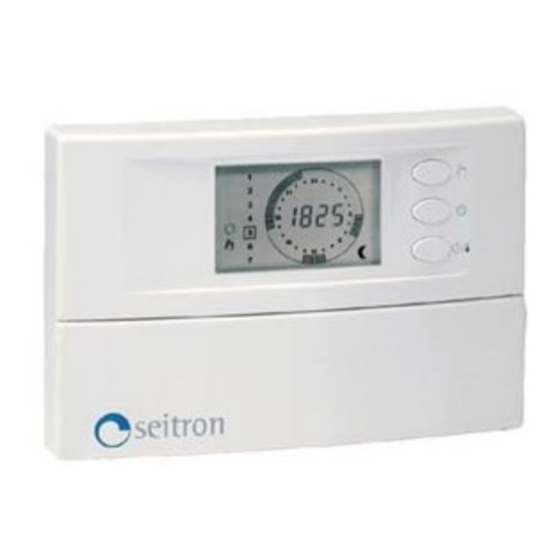

DCPA80BC Wireless Digital Chronostat
This electronic chronostat is suitable for a reliable and accurate
temperature regulation in commercial and industrial premises as well as
in home installations. Its main feature is the capability of operation
without any wire connection: the commands are issued to the receiving
unit via radio signals, making this product extremely easy and
economical to install especially where no existing electrical wires are
available. The chronostat has built in comprehensive 7 day programming
capability that assures flexibility to both heating and cooling applications.
FEATURES
•
Completely wireless chronostat 868.35 MHz band
•
Unique version: both Daily and Weekly
•
Two batteries AA type power supply
•
Two levels room temperature regulation: Comfort and Economy
•
Guided programming
•
'Heating' or 'Cooling' mode with front panel selection
•
Off position with adjustable antifreeze function
•
Room temperature or current time readout
•
Fixing with distance between holes 60 mm or 83 mm (3 mod.
junction boxes)
Model
Model Types
DCPA80BC
Power supply
Technical Data
Batteries duration
Regulation range
Temperature Sampling
Differential
Sensor type
Accuracy
Resolution
Output power (ERP)
Modulation type
Antenna type:
Max. distance from
receiver
Storage Temperature
Operating Temperature
Protection Class
Humidity Limits
Enclosure
Colour
Agency Compliance
Size
Online Store: www.syxthsense.com
Enquiries: T: 0870 20 80 100 F: 0870 20 80 200
Description
DCPA80BC Wireless Digital Chronostat
2 x 1.5V= alkaline batteries AAA type
~ 1 year
Comfort: 10°C .. 30°C
Economy: 10°C .. 30°C
Approx. every 3 minutes
0.2°C (asymmetric.: example. 20.0°C off 19.8°C on - heating mode -
20.0°C off 20.2°C on - cooling mode - )
NTC 100k @ 25°C internal
± 1°C
Readout: 0.1°C; Set-point: 0.2°C
10dBm max
AM (ASK)
Internal
30 m indoor (depending on the environment)
-10°C .. +50°C
0°C .. 40°C
IP30
20% .. 80% rH (non condensing)
Material: ABS V0 self-extinguishing
Cover: Signal white (RAL 9003)
Base color: Anthracite grey (RAL 7016)
EEC 89/336, 73/23, 93/68, 99/05
133W x 87H x 32D mm
Product Sheet TH6.20
DCPA80BC
Thermostat Type
PS TH6.20 – 1/8
