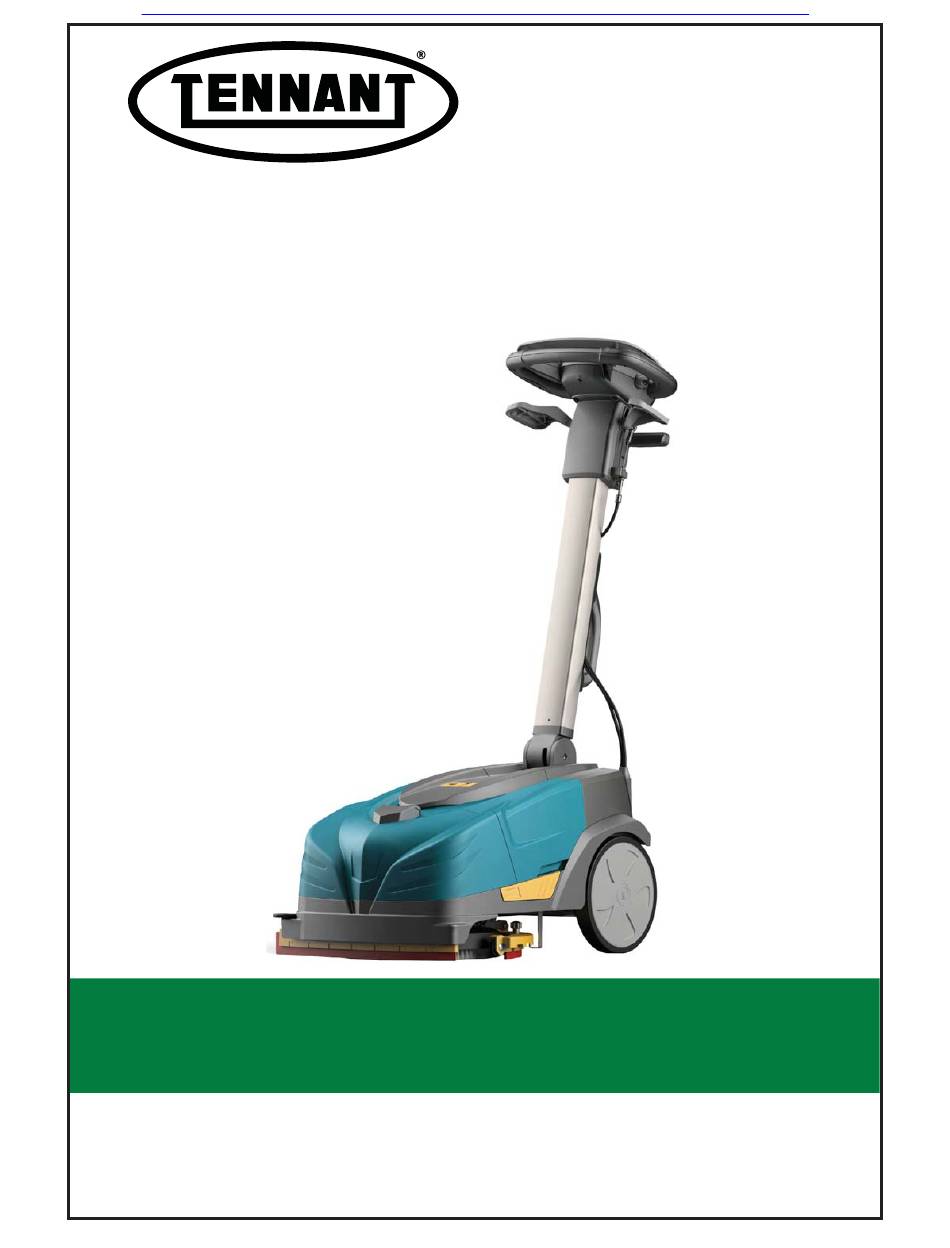

Tennant CS 5 Technical & Service Manual

Hide thumbs Also See for CS 5:
Table of Contents

Advertisement

Quick Links

New & Reconditioned Equipment & Parts - www.southeasternequipment.net
PLDC04318
REVISION DATE
July 31, 2020
DATE
July 31, 2020
TECHNICAL OFFICE
CS 5
T
S
M
ECHNICAL
ERVICE
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant CS 5

Summary of Contents for Tennant CS 5

  • Page 1 New & Reconditioned Equipment & Parts - www.southeasternequipment.net PLDC04318 REVISION DATE July 31, 2020 DATE July 31, 2020 TECHNICAL OFFICE CS 5 ECHNICAL ERVICE ANUAL...
  • Page 2 New & Reconditioned Equipment & Parts - www.southeasternequipment.net...

  • Page 3: Table Of Contents

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISIONE July 31, 2019 UFF. TECNICO Contents A1.1 Checking brush motor current draw ................7 A1.2 Checking and replacing the centre brush motor carbon brushes ......... 8 A1.3 Disassembling and replacing the centre brush motor ........... 11 B1.1 Checking suction motor current draw................
  • Page 4 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISIONE July 31, 2019 UFF. TECNICO...
  • Page 5 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE BRUSH UNIT IMPORTANT Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. necessary, place chocks under the wheels. partment on the machine.
  • Page 6 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE A1 BRUSH MOTOR The brush motor is 36 V, with a maximum power of 100 W. It is powered by the batteries via the electronic board, with softstart.

  • Page 7: A1.1 Checking Brush Motor Current Draw

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE A1.1 Checking brush motor current draw Make sure that the batteries on the machine are charged (36 V ± 1 V). Use a clamp-on ammeter with a full scale reading of at least 100 A (amperes). Make sure that there is enough room around the machine to perform the checks safely.

  • Page 8: A1.2 Checking And Replacing The Centre Brush Motor Carbon Brushes

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE A1.2 Checking and replacing the centre brush motor carbon brushes The carbon brushes can be checked only by removing the motor cover, as the motor does not have openings for carbon brush inspection, as may be the case with other motors.
  • Page 9 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Checks Measure the carbon brush to determine wear, and then compare the values against those shown below. The length of the carbon brush must be no less than 9 mm / 0.35 in. four at the same time.
  • Page 10 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Reassembling the carbon brushes Reassemble four new carbon brushes, positioning them so that they remain secured in their housings by the springs, and when assembling the cap they do not interfere with the rotor. Assemble the cap, screw the nuts on a few threads until the bearing is partially inserted.

  • Page 11: A1.3 Disassembling And Replacing The Centre Brush Motor

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE A1.3 Disassembling and replacing the centre brush motor Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. If necessary, clean the working area with a jet of compressed air, or a vacuum cleaner.
  • Page 12 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Lift the electronics cover casing and then remove the electronics compartment cover to reach the power board. Disconnect the motor electrically from the power board and then remove the cable from the plastic guides that anchor it to the plastic chassis;...
  • Page 13 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE SUCTION UNIT IMPORTANT Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. necessary, place chocks under the wheels. partment on the machine.
  • Page 14 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B1 SUCTION MOTOR The suction motor is a single-stage centrifugal-tangential 36 V DC motor, powered directly via the functions board; it is activated on the instrument panel using the button provided, with the suction start signal sent via the functions board using a MOS-FET for ramped starting.

  • Page 15: B1.1 Checking Suction Motor Current Draw

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B1.1 Checking suction motor current draw Make sure that the batteries on the machine are charged (36 V ± 1 V). Use a clamp-on ammeter with a full scale reading of at least 100A (amperes). Make sure that there is enough room around the machine to perform the checks safely.
  • Page 16 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Activate the suction motor from the control panel. Wait for current draw to stabilise before reading the value for comparison against the table below. If the reading is between the values shown in the table, disconnect the clamp-on ammeter and return the machine to operating conditions.

  • Page 17: B1.2 Removing The Suction Fan

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B1.2 Removing the suction fan Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. If necessary, clean the working area with a jet of compressed air. Remove the battery and put it in a safe place, away from liquids.
  • Page 18 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B2 SOLUTION PUMP The electric pump used to deliver the solution is a vibration pump, operating at 24 VAC with a frequency of 50 Hz and a maximum power consumption of 20 W. It has a suction capacity of 100 mbars = 0.1 bars = 1019.74 mm H O = 1.45 psi.

  • Page 19: B2.1 Testing And/Or Replacing The Solution Pump

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B2.1 Testing and/or replacing the solution pump Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the dirty water tank and the solution tank and identify the solution pump.
  • Page 20 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Checking electrical operation Connect one of the two cables between one pole of the battery and a fast-on on the solution pump. Connect the other cable either to the battery pole or the fast-on on the solution pump (one end only). Touch the other end of the cable to the remaining contact a series of times;...
  • Page 21 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B3 DIVERTER VALVE direction of work in the suction phase, so as to allow suction from the front or rear squeegee. manual, controlled via a lever on the handle. Via a system of levers connected to the diverter valve, the front and rear squeegees are also lowered and raised alternately when the valve is operated.

  • Page 22: B3.1 Replacing The Suction Diverter Valve

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B3.1 Replacing the suction diverter valve Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the dirty water tank and the solution tank and identify the diverter valve. If necessary, clean the working area with a jet of compressed air.
  • Page 23 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Turn the diverter valve control lever fully anti-clockwise to release the hook. Unscrew the bolt that secures the tie rod for the rear squeegee. Replace the complete suction diverter valve or the damaged components.
  • Page 24 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4 SQUEEGEE LIFTING LEVERS AND CABLES The front and rear squeegees are lifted using lever controls which, via sheathed steel cables, raise and lower the rear squeegee, invert the rear and front squeegees and control the diverter valve.

  • Page 25: B4.1 Replacing The Rear Squeegee Cable

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.1 Replacing the rear squeegee cable Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the cover clip and disassemble the carrier grip, located on the handle. Unscrew the nut on the lifting lever and remove the cable from the recess and from the handle.
  • Page 26 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Unscrew the bottom nut on the lifting cable, at the squeegee end, and remove it from its housing. Remove the snap ring from the eyelet on the squeegee and remove the rear squeegee lifting cable. Reassembly To reassemble the new lifting cable, repeat the disassembly operations in reverse order.

  • Page 27: B4.2 Adjusting The Rear Squeegee Cable

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.2 Adjusting the rear squeegee cable Adjustment Make sure that there is enough room around the machine to perform the adjustments safely. To adjust, use the top register on the handle, with the lifting lever raised. Remove the protection clip.

  • Page 28: B4.3 Removing The Splitter Bracket

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.3 Removing the splitter bracket Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Disconnect the machine’s battery and remove the dirty water tank and solution tank. Disassemble the complete handle from the machine’s chassis as described in paragraph C2.5.
  • Page 29 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Turn the splitter bracket on its side and unscrew the two screws that hold the two plastic pieces together Replace the damaged cable with a new one. Reassembly For assembly, repeat the steps for dismantling in reverse order.

  • Page 30: B4.4 Replacing The Splitter Bracket Control Cable "A

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.4 Replacing the splitter bracket control cable “A” Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Disconnect the machine’s battery and remove the dirty water tank and solution tank.

  • Page 31: B4.5 Adjusting The Splitter Bracket Control Cable "A

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.5 Adjusting the splitter bracket control cable “A” Adjustment Make sure that there is enough room around the machine to perform the adjustments safely. With the splitter bracket control cable mounted and the machine completely reassembled, adjust the cable.

  • Page 32: B4.6 Replacing The Diverter Valve Control Cable "B

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.6 Replacing the diverter valve control cable “B” Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Disconnect the machine’s battery and remove the dirty water tank and solution tank.

  • Page 33: B4.7 Replacing The Front Squeegee Control Cable "C

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.7 Replacing the front squeegee control cable “C” Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Disconnect the machine’s battery and remove the dirty water tank and solution tank.

  • Page 34: B4.8 Adjusting The Front Squeegee Control Cable "C

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE B4.8 Adjusting the front squeegee control cable “C” Adjustment Make sure that there is enough room around the machine to perform the adjustments safely. With the front squeegee control cable assembled and the machine completely reassembled, adjust the cable.
  • Page 35 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE CHASSIS UNIT IMPORTANT Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. necessary, place chocks under the wheels. partment on the machine.
  • Page 36 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C1 WHEEL The rear idle wheels bear most of the weight of the machine; the rest of the weight rests on the brush. They measure 200 millimetres - 7.87 inches in diameter and are almost totally made from plastic, with the exception of the 10 mm - 0.39 inch tread made from non-marking rubber.

  • Page 37: C1.1 Replacing The Idle Wheels

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C1.1 Replacing the idle wheels Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. If necessary, clean the working area with a jet of compressed air. Remove the battery, dirty water and solution tanks.
  • Page 38 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2 Carrying handle - Hand grip - Complete handle The handle is used to control the machine during operation. To this end, near the handle there are levers for adjusting its angle and levers for controlling the front and rear squeegees.

  • Page 39: C2.1 Replacing The Carrying Handle

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2.1 Replacing the carrying handle Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Undo the screw that secures the eyelet on the rear squeegee lifting cable. Undo the screw that secures the eyelet on the inversion cable and unscrew the top nut on the register.
  • Page 40 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Remove the cover clip and completely unscrew the top adjusting nut on the rear squeegee cable Undo the two screws that fasten the grip to the handle. Remove the two cables from the carrying handle and replace the carrying handle with a new one.

  • Page 41: C2.2 Replacing Rear Squeegee Activation Lever

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2.2 Replacing rear squeegee activation lever Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Undo the two screws that fasten the carrying handle to the handle. Remove and replace the carrying handle with a new one.

  • Page 42: C2.3 Disassembling The Hand Grip

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2.3 Disassembling the hand grip Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery from the machine and remove the dirty water tank and the solution tank. Place the machine on its side and disassemble the hand grip.

  • Page 43: C2.4 Disassembling The Handle Adjustment And Squeegee Inversion Levers

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2.4 Disassembling the handle adjustment and squeegee inversion levers Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery from the machine and remove the dirty water tank and the solution tank.
  • Page 44 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Squeegee inversion lever Undo the screw that secures the eyelet on the splitter bracket control cable. Remove the lever, replace it with a new one and reassemble the safety ring. Reassemble the two half-shells and check that the squeegee inversion switch is working correctly.
  • Page 45 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Handle tilt adjustment lever Remove the lever, replace it with a new one and reassemble the safety ring. Reassemble the two half-shells and check that the squeegee inversion switch is working correctly. 13 - 14 - 15 Reassembly To reassemble the new levers, repeat the disassembly operations in reverse order.

  • Page 46: C2.5 Disassembling And Replacing The Complete Handle

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE C2.5 Disassembling and replacing the complete handle Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery from the machine and remove the dirty water tank and the solution tank.
  • Page 47 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Unscrew the centre bolt on the handle rotation pin to uncouple it from the joint supports. Replace the handle with a new one. Reassembly To reassemble the new complete handle, repeat the disassembly operations in reverse order.
  • Page 48 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE CIRCUIT BOARDS, WIRING IMPORTANT Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. necessary, place chocks under the wheels. partment on the machine.
  • Page 49 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE HAND GRIP - INSTRUMENT PANEL BOARD controlled in all directions. The operating lever is located along the perimeter of the top of the grip, to allow it to be activated in any position of the grip and simplify operation. In the centre are the instruments for electronic control of the machine and information on operation.

  • Page 50: D1.1 Disassembling And Replacing Hand Grip Components

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D1.1 Disassembling and replacing hand grip components Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery and place it in a safe area, away from liquids.
  • Page 51 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE With a Phillips-head screwdriver, unscrew the 8 screws that join the two half-shells of the handle. 9 - 10 Lift and remove the half-shell of the handle. Unscrew the 2 screws that secure the lever to the two pivots A.
  • Page 52 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Move the pivoted part of the activation lever outwards, then slide it out from the limit switches on the handle. Release the pivot spring on the right rocker arm and remove the two pivots A. Remove the control panel board, paying attention to the springs on the buttons.
  • Page 53 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Turn the handle and remove the panel glass with label. Reassembly For assembly, repeat the steps for dismantling in reverse order. Tighten the screws on the plastic parts gently. July 31, 2020...

  • Page 54: D1.2 Checking And Replacing The Main Switch

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D1.2 Checking and replacing the main switch Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery, the dirty water tank and the solution tank from the machine.
  • Page 55 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE To replace the main switch, unscrew the two screws that secure the support. Disconnect the two fast-ons on the main switch, if not already done. Remove the switch from its support and replace it.
  • Page 56 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D2 POWER BOARD POWER BOARD via communication with the instrument panel board. The motors are started using a soft-start procedure to avoid peak current draw. The power board communicates via a two-wire cable with the battery board, which sends a signal indicating its level of charge.

  • Page 57: D2.1 Disassembling And Replacing The Power Board

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D2.1 Disassembling and replacing the power board Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. If necessary, clean the working area with a jet of compressed air.
  • Page 58 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Connections The fast-on connectors A are used to supply power to the electronic board from the batteries; they cannot be reversed, as the positive and negative fast-ons have different sizes. The fast-on connectors B connect to the solution pump, with an AC (alternating current) output and consequently can be reversed.

  • Page 59: D2.2 Checking And Replacing The Fuses

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D2.2 Checking and replacing the fuses Disassembly Make sure that there is enough room around the machine to perform the dismantling operations safely. Remove the battery, the dirty water tank and the solution tank from the machine. Remove the top protective guard as described in paragraph D2.1.

  • Page 60: D3.1 Wiring Diagram

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE D3 ELECTRICS D3.1 Wiring diagram July 31, 2020...
  • Page 61 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE ERROR CODES - TROUBLESHOOTING IMPORTANT Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. necessary, place chocks under the wheels. partment on the machine.

  • Page 62: E1.1 Error Codes On The Instrument Panel

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE E1 ERROR CODES E1.1 Error codes on the instrument panel Error Shown Error Description Troubleshooting RED BRUSH LED Brush motor overcurrent / Press the button to Short circuit remove the error 250ms ON + 250ms OFF...
  • Page 63 PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE Error Shown Error Description Troubleshooting ALL BATTERY LEDs ON Charge > 30% to <100% YELLOW + RED BATTERY Charge > 10% to <30% LEDs ON RED BATTERY LED ON Charge>...

  • Page 64: E1.2 Fw Version Control

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE E1.2 FW Version Control board and the TOUCH board. PROCEDURE Press and hold the ECO + H2O touch buttons for at least 4 seconds. As soon as the sequence is recognised, the buzzer emits a special sound.

  • Page 65: E2.1 Troubleshooting

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE E2 TROUBLESHOOTING E2.1 Troubleshooting PROBLEMS CAUSES SOLUTIONS Flat battery. Recharge the battery. Main switch is not on. Activate main switch. Machine not working. Main switch broken. Replace main switch.

  • Page 66: Technical Service Manual Revisions-Updates

    PLDC04318 New & Reconditioned Equipment & Parts - www.southeasternequipment.net REVISION 00 July 31, 2020 TECHNICAL OFFICE TECHNICAL SERVICE MANUAL REVISIONS-UPDATES EDITION No. DATE Revision 00 Work commenced on preparing the manual July 31, 2020 Revision 01 Xxxxxx XX, 2019 July 31, 2020...
