Preface Installing the Machine

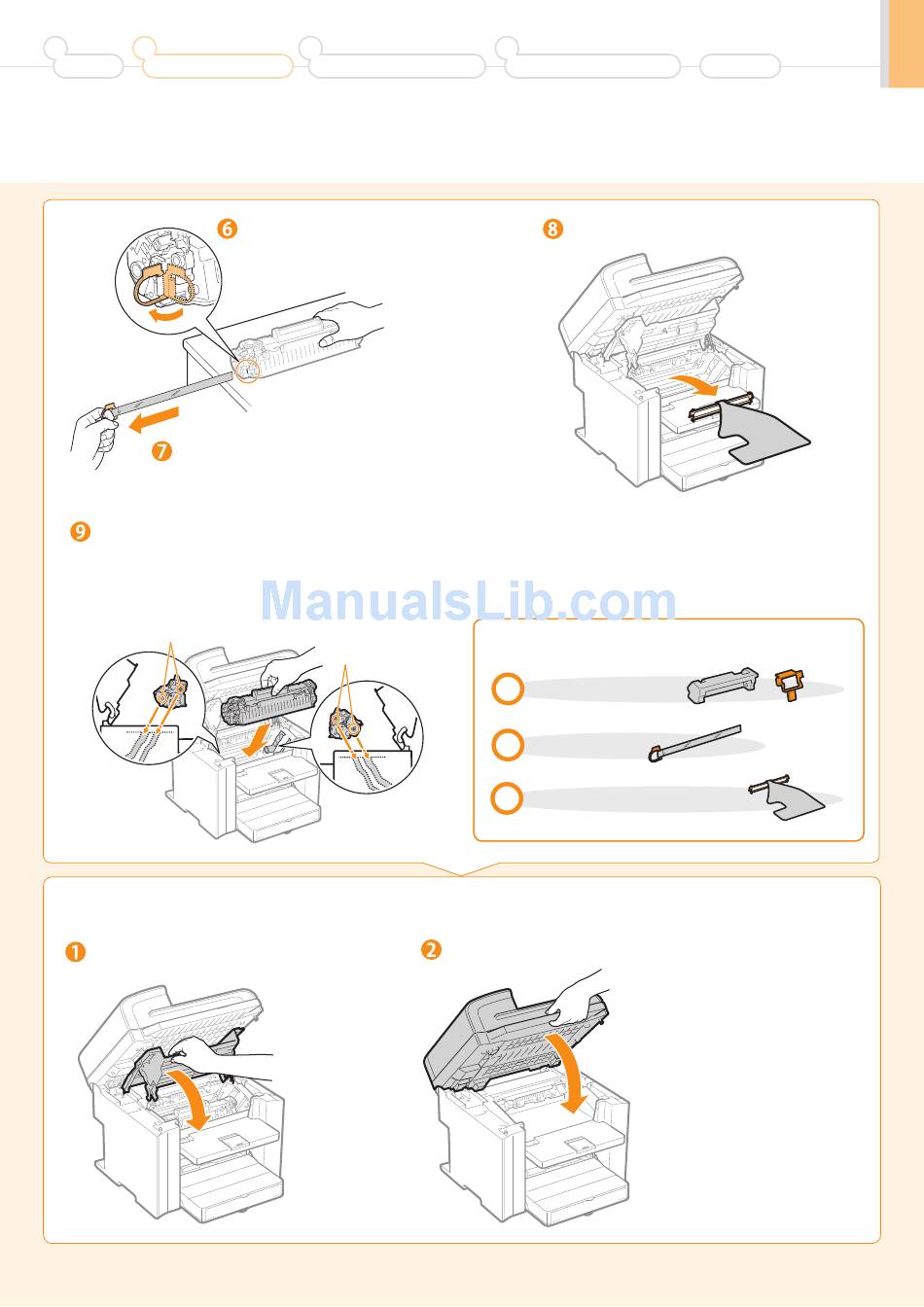

Pull the sealing tape completely out.
The full length of the sealing tape is
approximately 20" (50 cm).
Insert the toner cartridge.
Fit the protrusions on each side of the toner cartridge into
the guides located on each side of the machine, and then
slide the toner cartridge into the machine.
Protrusion
4.
Close the toner cover, and then lower the scanning platform.
Close the toner cover.
3
Configuring and Connecting the Fax
Lift the tab.
Place the toner cartridge on a flat surface,
and then lift the tab.
Protrusion
4
Connecting to a Computer and
Installing the Drivers
Remove the packing material.
Check!
Did you remove all the packing materials?
Packing materials
Sealing tape x1
Packing material with a sheet
Lower the scanning platform.
