B ATO N R OUG E
#2 5 773

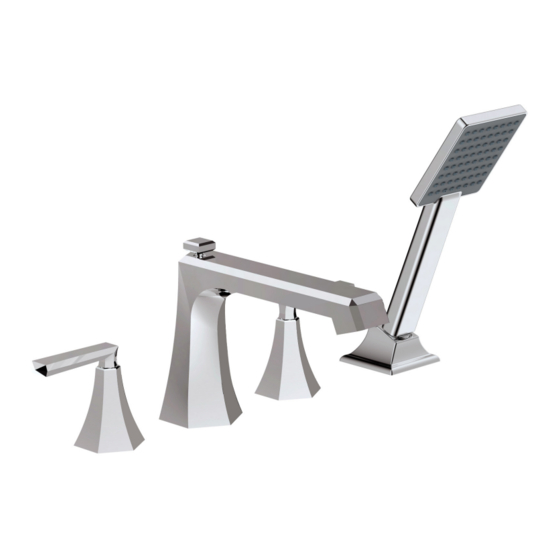

4 piece deckmount tub filler with handshower
robinet de bain 4 mcx avec douchette
Installation & care guide
Guide d'installation et d'entretien
last revision: 28/01/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATON ROUGE 25773 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALT BATON ROUGE 25773

Summary of Contents for ALT BATON ROUGE 25773

  • Page 1 B ATO N R OUG E #2 5 773 4 piece deckmount tub filler with handshower robinet de bain 4 mcx avec douchette Installation & care guide Guide d’installation et d’entretien last revision: 28/01/2020...
  • Page 2 Félicitations pour l’achat de purchase of your Alt product votre produit Alt By purchasing an Alt product, you are taking part in En achetant un produit Alt, vous prenez part au the global movement for better living. We take pride in mouvement global pour le mieux-vivre.
  • Page 3 FAUCET COMPONENTS COMPOSANTS DU ROBINET SPECS AT LARGE / SHÉMA DES PIÈCES ALT7-25-791-01: handle / poignée ALT7-30-727-00: tie-down for handle / pièces d’assemblage pour poignée ALT7-50-898-00: hot water cartridge up to fall 2017 / cartouche d’eau chaude jusqu'à l'automne 2017 ALT7-50-899-00: cold water cartridge up to fall 2017 / cartouche d’eau froide jusqu'à...
  • Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY MISE EN GARDE: POUR OBTENIR UN RÉSULTAT RECOMMEND THE INSTALLATION OF THIS FAUCET BE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE DONE BY A LICENSED PLUMBER. L’INSTALLATION DE CE ROBINET SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.

  • Page 5: Installation

    INSTALLATION Installing the spout Prior to installation, piece required 4 holes onto your deckmount. Refer to fig.1 for hole size. To faciliate future maintenance, ensure access to rough-in. Remove the allen setscrew (2) and pull out the faucet body (1) from the shank (5).

  • Page 6: Installing The Handles

    Installing the handles Place the rubber washer (7), the metal nut (8) and the plastic thickness (6) on the threaded valve body. Insert the threaded body through the hole under the deckmount. Place the rubber (5), the metal adapter (4), insert the rubber (2) into the handle (1) and secure with the screw (3).

  • Page 7: Maintenance Entretien

    MAINTENANCE ENTRETIEN Connecting the hoses Connect the proper end of the hot water hose (2) to the side shank hot water outlet (3) with rubber washer ; connect the other end to the spout underside. Then repeat the same connection for the cold water hose (6).

  • Page 8: Cartridge Replacement

    Cartridge replacement Start by shutting of water supply lines and then turning on to drain the faucet. To replace the cartridge (3), pull out the handle (2) by un- screw the screw (1) first. Replace with new cartridge and reassemble by reversing steps.
  • Page 9 CARE SOIN To clean your ALT faucet or accessory, wash with a Pour nettoyer et conserver l’apparence de vos robinets ou accesoires ALT, lavez-les avec un linge wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on mouillé...

  • Page 10: Warranty Garantie

    - Any and all ALT products that are subjected to any type of harsh professionnel ou par toute autre personne. abrasive, such as cleaners containing abrasive cleansers, ammonia, - Tout produit ALT nettoyé...
