Summary of Contents for PSB SYNCHRONY Series

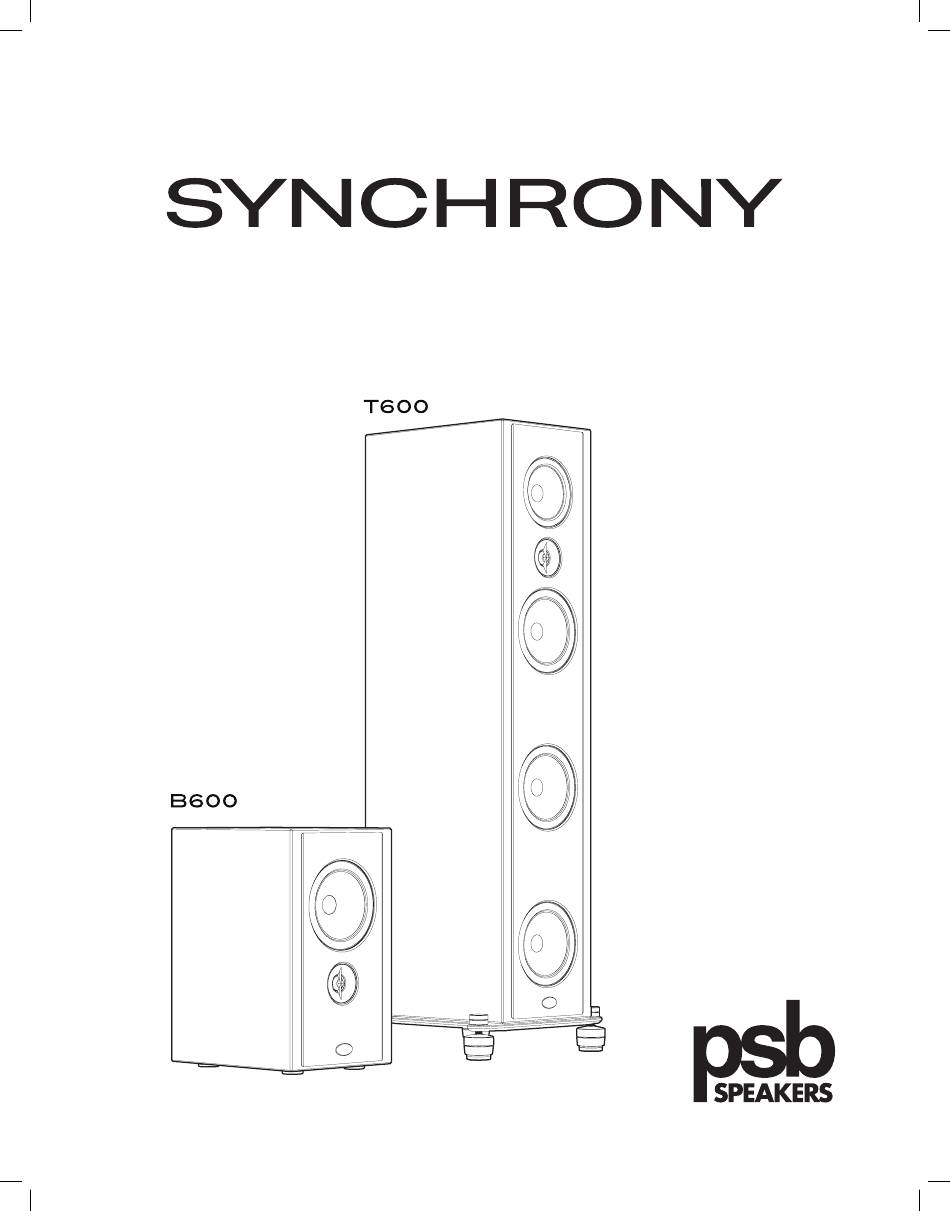

  • Page 1 SYNCHRONY Series Owner’s Manual...
  • Page 2 Introducción Felicidades por comprar uno de los miembros de la Serie Synchrony de PSB. Synchrony representa la aplicación más fina de la filosofía de diseño de PSB que ha sido refinada durante casi 50 años. Para ayudarlo a disfrutar sus bocinas, le proporcionamos algunas instrucciones para ensamblarlas, y algunas sugerencias para ayudarlo a optimizar su desempeño.
  • Page 3 Port Cover (Figure 1) Two Port Covers are supplied with each tower. The port cover can be used to adjust the bass tuning of the Synchrony T600 where room problems at low frequencies (in the 1OOHz region) occur. It is well known that the room can dominate the performance of the low frequencies below 200Hz and the added flexibility of a port cover can tweak/improve the performance in problem room setups.
  • Page 4 Speaker Terminal Jumper Bars (Figure 2 / 3) The Synchrony T600 also includes two speaker terminal jumper bars. This will provide listeners with tri- and bi-wiring capabilities, as well as tri- and bi-amping. Though the audible differences of these features may be subtle, the benefits include; transients are less likely to cause clipping and/or speaker damage, reduced distortion and the elimination of errors at low frequencies, while also providing better matching between the power amplifier and speaker.
  • Page 5 Installation of IsoAcoustics (Figure 4) The Synchrony T600 are furnished with GAIA II isolators by IsoAcoustics’, to provide a high degree of speaker isolation, while resisting lateral movement. Note: The isolators are directional, make sure to install the GAIA’s with the logo facing forward.
  • Page 6 Instalación de IsoAcoustics (Figura 4) La Synchrony T600 viene equipada con aisladores GAIA II de IsoAcoustics, para brindar un alto grado de aislamiento a las bocinas y, al mismo tiempo, resistir el movimiento lateral. Nota: Los aisladores son direccionales, asegúrese de instalar los GAIA con el logotipo hacia el frente.
  • Page 7 Custom isolators (Figure 5) The Synchrony B600 are equipped with custom isolators from IsoAcoustics which are integrated into the base of each speaker. Isolateurs personnalisés (Figure 5) Les Synchrony B600 sont équipés d’isolateurs personnalisés IsoAcoustics qui sont intégrés à la base de chaque enceinte.
  • Page 8 Specifications/Specifications/Especificaciones Specifications/Specifications/ B600 T600 Especificaciones Frequency Response On Axis @0 +/- 3db 50-33,000Hz 24-23,000Hz On axis @0 +/- 1 1/2db 55-20,000Hz 30-20,000Hz off Axis @ 30 =/- 1 1/2db 55-10,000Hz 30-10,000Hz LF Cutoff 35Hz 20Hz Sensitivity Anechoic 86dB 89dB Listening Room 88dB 91dB Impedance...
  • Page 10 PSB Speakers 633 Granite Court Pickering, Ontario. L1W 3K1 CANADA www. psbspeakers. com 888-772-0000 (905) 831-6555 Fax: 905-831-6936...
