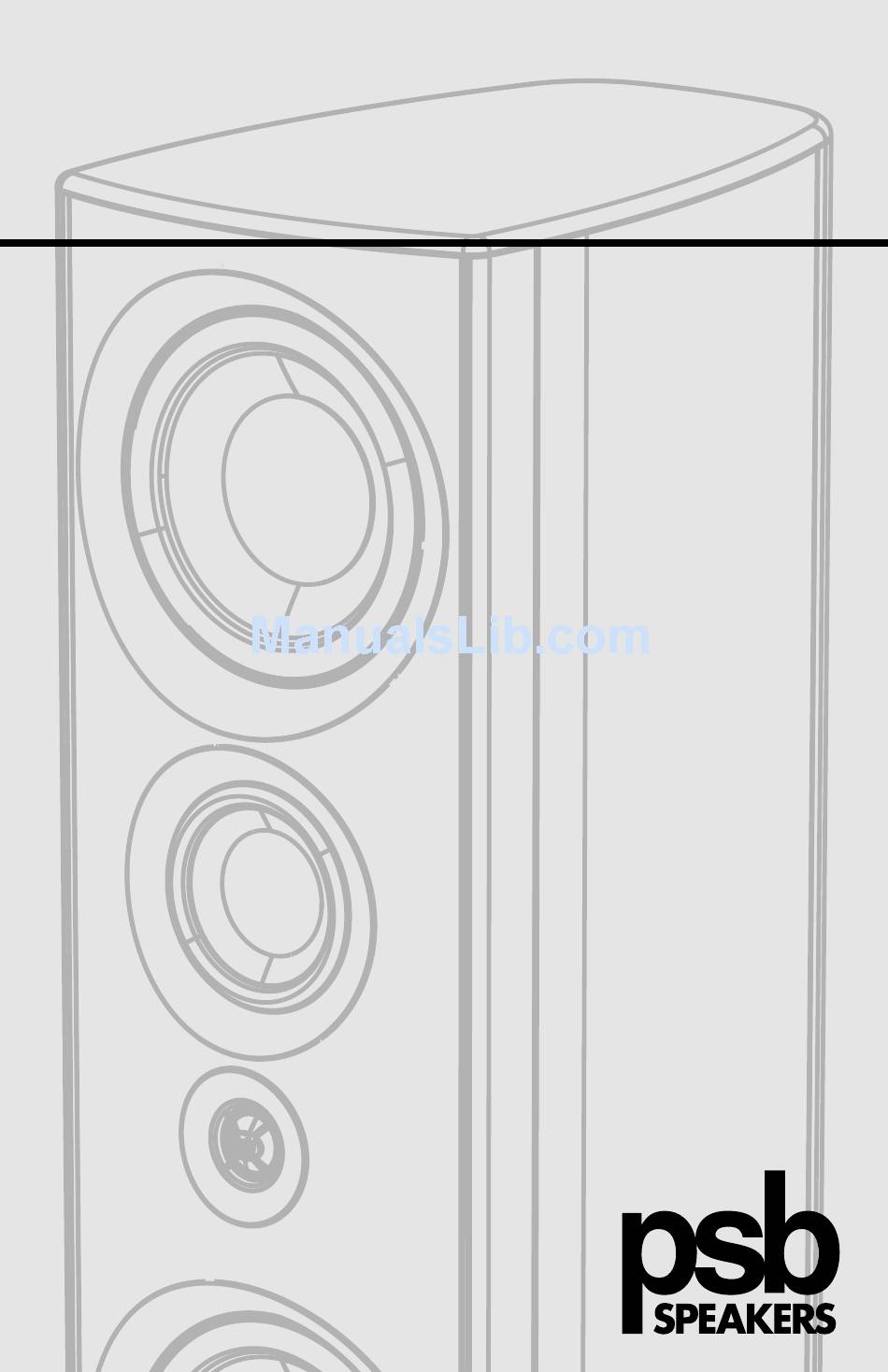

- Page 1 Owner’s Manual Synchrony Series Guide d’utilisation Manual de Propietario...
- Page 3 Congratulations on purchasing your new PSB Synchrony loudspeaker. We hope that you enjoy our product for many years to come. This owner's manual will give you many useful tips about connecting, placing and using your loudspeaker. We recommend you read it thoroughly and it should answer all of your product related questions.
- Page 4 These two factors causing distortion in bass drivers are practically eliminated by the combination of an aluminum shorting ring within the magnet structure, the aluminum phase plug on the pole piece, and a shorted copper turn on top of the pole piece. The aluminum phase plug smoothes response and also contributes as a heat sink for the voice coil, reducing power compression.
-
Page 5: Warranty Registration
Additional features of the Synchrony models: 1" Titanium Tweeter/Neodymium Motor/Aluminum Heat Sink. Low mass for required stiffness needed for wide bandwidth response. High efficiency and high power handling. Three chamber individually ported cabinet design (tower models) gives greater control over the system tuning, resulting in deeper bass. Doesn't suffer from the standing wave problems found in a typical tower. - Page 6 Adjusting Rubber Levelers and Spikes (Tower Speakers) Attach the supplied spikes or rubber levelers to the bottom of the speaker as shown in the diagram at right. On carpets, position the speakers and adjust spikes to the desired height (higher for thicker carpet) and hand tighten the locknuts against the bottom of the cabinet.
- Page 7 Wall Mounting Synchrony S Surrounds Select and install wall-mounting brackets and hardware sufficient to hold the weight of the speakers on the walls safely. 1. Use the “3 finger” style flush mount bracket (provided in Owner's Manual Kit). 2. The speaker should be mounted at a minimum height of five feet measured from the bottom of the speaker to the ground.
-
Page 8: Speaker Placement - Maximizing Your Enjoyment
Speaker Placement — Maximizing Your Enjoyment Proper loudspeaker placement is an essential ingredient to getting the best sound from your high performance stereo, multi-channel audio or home theater system. The goal is to reproduce faithfully the audio soundtrack the movie director or music producer created without calling any attention to the speakers themselves. - Page 9 enclosures are positioned vertically rather than horizontally. If you are placing your monitors horizontally, the speakers will still perform very well, but the seating area where you will enjoy optimum sound will become narrower. We suggest you position the tweeters to the outside away from the center line. You may prefer to tilt the speakers towards ear level.
- Page 10 inches from all walls, but the choice is yours to determine by listening. 2. You in Relation to the Speakers Where you sit in relation to your speakers obviously makes a difference too. The proportions of the particular triangle formed by your speakers and you matter.
- Page 11 4. Positioning Surround Speakers We are often asked about what kind of surround speakers are best: dipole, bipole, or monopole (direct-radiator). Placement, room acoustics, and other factors affect the sonic realism of movies and Null Zone Bipole 5.1 System Dipole 5.1 System multi-channel audio at least as much as the radiating characteristics of a speaker.
- Page 12 positioning relation to the listener to obtain the level of direct versus diffuse sound that you prefer. Most people find it best to mount dedicated surround speakers like our Synchrony S Surrounds on the side walls slightly behind the prime listening position and two feet above ear height when seated (this typically places the bottom of the speaker...
- Page 13 Connections Important: Always turn off your electronic equipment before connecting speakers. Selecting Speaker Wire We recommend the following gauge of standard two-conductor speaker wire for the wiring distances specified; if you prefer, you can use heavier (lower-gauge) wire. You may wish to audition and compare the performance of some of the specialty audio interconnects and speaker cable available from your dealer.
- Page 14 Bare Wire Connection Loosen 1/2" (13mm) wingnut. Insert wire through hole and tighten nut. Takes wire sizes up to 8 gauge. marked with ‘+’ plus signs, or one wire under the insulation may be different from the other.) Use this wire coding, together with amp/receiver and speaker colour-coding, to be sure you are connecting the same wire of a given pair to a like-coded terminal at both ends of your connection.
-
Page 15: Bi-Wire Connections
First remove jumper First remove jumper Speaker Connection Options (For Synchrony S Surrounds) The captioned illustrations below show the following multi-channeled configurations: Bipole or direct radiating surround mode Dipole surround mode 6.1/7.1 system utilizing two (2) Synchrony S surrounds 6.1/7.1 system utilizing three (3) Synchrony S surrounds 6.1/7.1 system utilizing four (4) Synchrony S surrounds Bi-Wire Connections Right... - Page 16 Bipole or direct radiating surround mode Black From amp From amp left SURROUND left SURROUND channel channel Dipole surround mode Null Zone First remove jumpers Wire Jumpers Black From amp left SURROUND channel Replace gold-plated jumpers with supplied wire jumpers and connect crisscrossed as shown. Black From amp right SURROUND...
- Page 17 6.1/7.1 System Utilizing Two (2) Synchrony S Surrounds — Surround — Rear Black From amp From amp left REAR left REAR channel channel First remove jumpers Black From amp From amp left SURROUND left SURROUND channel channel Black From amp right SURROUND channel Front...
- Page 18 6.1/7.1 System Utilizing Three (3) Synchrony S Surrounds — Surround — Rear Black Black From amp From amp From amp From amp left SURROUND left SURROUND right SURROUND right SURROUND channel channel channel channel Front Black From amp From amp right SURROUND right SURROUND channel...
- Page 19 6.1/7.1 System Utilizing Four (4) Synchrony S Surrounds — Surround — Rear Black From amp From amp left SURROUND left SURROUND channel channel Black From amp left REAR channel Black From amp right SURROUND channel Front Black From amp From amp From amp left REAR right REAR...
- Page 20 Synchrony Port Cover A Port Cover accessory is supplied with each tower (Synchrony One and Two) and center channel speaker (Synchrony One C and Two C). The port covers can be used to adjust the bass tuning of the Synchrony models where room problems at low frequencies (in the 100Hz region) occur.
-
Page 21: Recommended Power
Recommended Power We recommend amplifiers and receivers rated from a range of 50-300 watts. For playing at consistently room-filling volume, a minimum of 100 watts is usually a good idea. Be wary of driving low-powered amplifiers to their limits as under-powering can cause permanent speaker damage. Protecting Your Investment A. - Page 22 In Case of Problems A. Lower volume if a speaker begins to sound distorted or seems to be missing certain frequencies, to check first to see whether playing at somewhat lower volume seems to clear up the problem. As we noted under “Recommended Power,” it can be especially important to turn down the volume right away if you have pushed a low-powered amplifier or receiver past its comfortable limits.
-
Page 24: Specifications
FINISH Black Ash or Dark Cherry All specifications are subject to change without notice. PSB, PSB Speakers and Synchrony are trademarks of, or used under license by, PSB Speaksers, a division of Lenbrook Industries Limited. © 2007 PSB All other trademarks used herein are trademarks of their respective owners. All rights reserved. - Page 25 Synchrony Synchrony Two B One C Bookshelf Center Channel Loudspeaker Loudspeaker 50-23,000Hz 50-23,000Hz 50-20,000Hz 50-20,000Hz 50-10,000Hz 50-10,000Hz 40Hz 40Hz 86dB 88dB 88dB 90dB 4 Ohms 4 Ohms 4 Ohms 4 Ohms 15-150 Watts 15-200 Watts 150 Watts 200 Watts 1" (25mm) 1"...
- Page 27 PSB Speakers 633 Granite Court Pickering, Ontario L1W 3K1 CANADA www.psbspeakers.com 888-772-0000 (North America) 905-831-6555 (International) Fax: 905-837-6357 OM-S, Rev F, 0108...
