System Build 9786412COM Manual

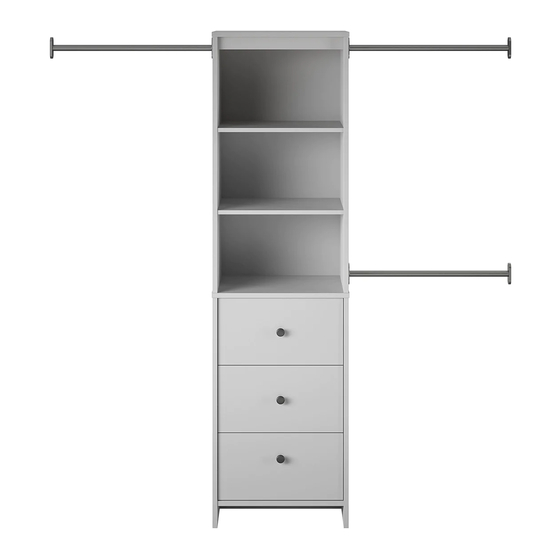

Adult closet system
Hide thumbs

Advertisement

Quick Links

Download this manual
9786412COM
Adult Closet System
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.systembuild.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
For the latest information on SystemBuild products
follow us at Ameriwood Home
B349786412COM0
Tough
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9786412COM and is the answer not in the manual?

Questions and answers

Related Manuals for System Build 9786412COM

Summary of Contents for System Build 9786412COM

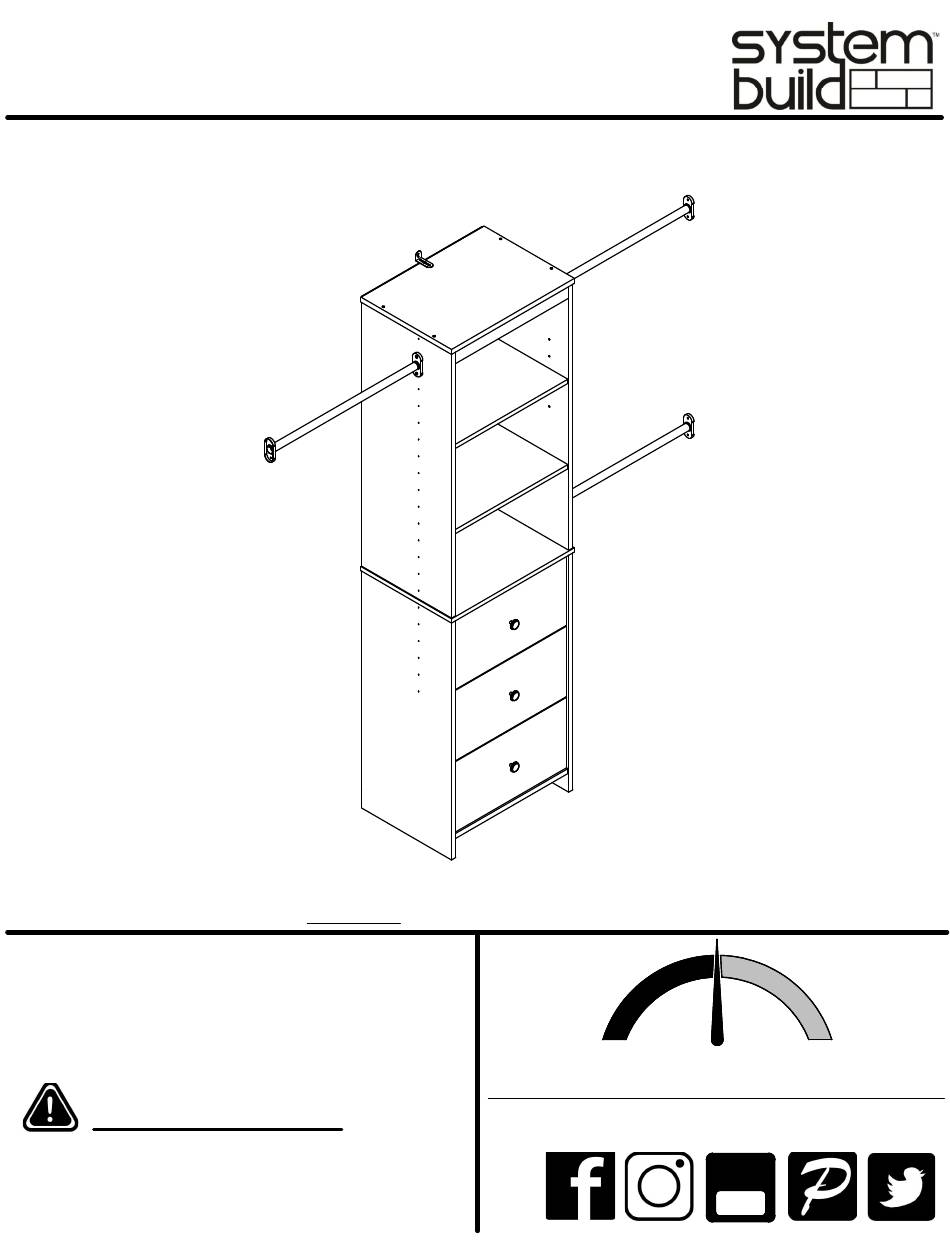

  • Page 1 9786412COM Adult Closet System B349786412COM0 Date of Purchase ___ / ___ / ___ Lot Number: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Do Not Return This Product! Contact our customer service team for help first.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-866-452-4081 Monday-Friday 9am - 5pm CST Tube Visit systembuild.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR...

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,...
  • Page 4 Before You Start Please Note: You may need to lightly tap the wood dowels into the holes during your assembly process. systembuild.com Tube...

  • Page 5: Board Identification

    Board Identification Not actual size Lower Right Panel Lower Left Panel Upper Left Panel Upper Right Panel 39786412040 39786412030 39786412010 39786412020 Rail Support Bottom 39786412080 39786412070 39786412060 39786412050 Center Shelf Drawer Front (x3) Fixed Shelf Adjustable Shelf 39786412110 39786412120 39786412100 39786412090 systembuild.com Tube...
  • Page 6 Board Identification Not actual size SIDE BACK Drawer Side (x6) Drawer Back (x3) Drawer Bottom (x3) 39991167346200C 39991167044640B 39991341045710D Lower Back Panel Upper Back Panel K577000010 K577041200 The back panels are paperboard construction. They are not made from wood, but are required for the assembly of your unit.
  • Page 7 Board Identification Not actual size SIDE BACK SIDE systembuild.com Tube...

  • Page 8: Part List

    Part List Actual Size (x12) (x4) (x12) (x18) (x8) #A22700 #A22710 #A23030 #A80250 #A21670 cam lock cam bolt confirmat shelf spoon wood dowel (x34) (x12) (x24) (x6) (x6) #A12120 #A21970 #A12700 #A11080 #A13020 7/16" pan head drive fastener 7/8" pan head 7/16"...

  • Page 9: Parts List

    Parts List Not actual size (x3) #A52795 knob (x1) #A84050 wall anchor kit (x6) left cabinet member #A54520 drawer bracket right cabinet member left drawer runner right drawer runner (x3) #A56770 slide set (x3) #I20630 telescoping tube systembuild.com Tube...
  • Page 10 STEP 1 (x6) (x3) (x1) Do not fully tightened screw. systembuild.com Tube...
  • Page 11 STEP 2 (x4) (x4) & systembuild.com Tube...
  • Page 12 STEP 3 Quick Assembly (x4) (x4) Proper orientation of CAM LOCK systembuild.com Tube...
  • Page 13 STEP 4 (x4) systembuild.com Tube...
  • Page 14 STEP 5 finished edges up systembuild.com Tube...
  • Page 15 STEP 6 (x8) finished edges up systembuild.com Tube...
  • Page 16 STEP 7 Marked with a "L" (x3) (x6) finished edge "L" systembuild.com Tube...
  • Page 17 STEP 8 (x2) (x2) (x2) Quick Assembly Proper orientation of CAM LOCK systembuild.com Tube...
  • Page 18 STEP 9 Marked with a "R" (x3) (x6) finished edge "R" systembuild.com Tube...
  • Page 19 STEP 10 (x2) (x2) (x2) Quick Assembly Proper orientation of CAM LOCK systembuild.com Tube...
  • Page 20 STEP 11 (x4) Quick (x4) (x6) (x2) Assembly Proper orientation of CAM LOCK unfinished edge systembuild.com Tube...
  • Page 21 STEP 12 finished edges up systembuild.com Tube...
  • Page 22 STEP 13 systembuild.com Tube...
  • Page 23 STEP 14 IMPORTANT! THE BACK PANELS ARE A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. Carefully turn the unit over onto its front side as shown. Assure the unit (x47) is square. Distance from corner to corner must be equal as shown. Note: Lower Back Panel is raw on both sides.
  • Page 24 STEP 15 (x6) (x12) SIDE SIDE bracket orientation bracket orientation systembuild.com Tube...
  • Page 25 STEP 16 Be sure groove in drawer sides are (x12) centered with groove in drawer front. SIDE SIDE systembuild.com Tube...
  • Page 26 STEP 17 Slide the Drawer Bottom into the grooves. You will need to tap the drive fasteners with a hammer to securely fasten. (x12) BACK finished SIDE surface SIDE systembuild.com Tube...
  • Page 27 STEP 18 (x3) (x3) (x3) (x12) (x3) Attach the slides first and knobs second. BACK SIDE SIDE systembuild.com Tube...
  • Page 28 STEP 19 (x3) (x6) (x6) (x6) First, locate your closet rods where you would like to position them in-line with the holes in the unit and mark hole locations on the wall. Next, if you are using the anchors to fasten the closet rods, insert them into the wall securely by screwing them into the wall using a screw-driver.
  • Page 29 STEP 20 Note: The drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws. roller cabinet member drawer runner roller systembuild.com Tube...
  • Page 30 STEP 21 (x4) systembuild.com Tube...
  • Page 31 STEP 22 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. (x1) IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
  • Page 32 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 50 lbs 22.7 kg 50 lbs 22.7 kg 40 lbs 20 lbs 18.2 kg 9.1 kg (each drawer) Warning: Risk of injury to persons - do not place a television on this furniture.
  • Page 33 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit systembuild.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
