Summary of Contents for protech QM1500

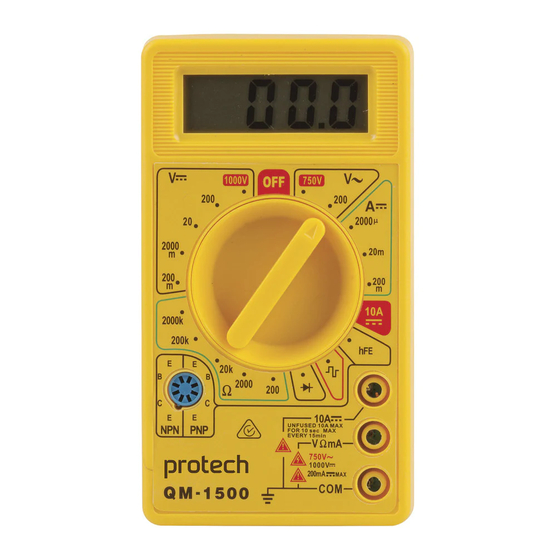

- Page 1 Low Cost HOBBYIST Digital Multimeter QM1500...
- Page 2 PAGE LEFT INTENTIONALLY BLANK...
- Page 3 Low Cost Low Cost Digital Multimeter User Manual Digital Multimeter User Manual Thank you for purchasing this Low Cost Digital Multimeter. This multimeter is the perfect introduction to meters, and data capture of standard measurements including DC & AC voltage, DC Thank you for purchasing this Low Cost Digital Multimeter.
- Page 4 FUNCTIONS Max. Display 2000 Count Basic Accuracy 0.500% DC Voltage Range 200mV – 1000V AC Voltage Range 200V – 750V DC Current Range 2000μA – 10A Resistance 200Ω to 2000kΩ Diode Test Transistor hFE Test LCD Screen Function Switch 10A Input Jack hFE Socket VΩmA Input Jack COM Input Jack...
- Page 5 FUNCTIONS Function Switch Select a measurement range by turning the switch to the preferred option. LCD Screen Readings and measurements taken by the multimeter will display in this area. Input Jacks VΩmA: Positive input terminal for voltage resistance, diode, temperature, frequency and capacitance.
-
Page 6: Ac/Dc Voltage Measurement
AC/DC VOLTAGE MEASUREMENT 1) Insert the black test lead banana plug into the negative COM jack. 2) Insert the red test lead banana plug into the positive VΩ jack. 3) Set the function switch to the VAC or VDC position. If the voltage to be measured is not known beforehand, then set the switch to the highest range and reduce it until a satisfactory reading is obtained. -
Page 7: Diode Test
DIODE TEST 1) Insert the black test lead banana plug into the negative COM jack. 2) Insert the red test lead banana plug into the positive VΩ jack. 3) Set the function switch to the position. 4) Touch the red test probe to the anode of the diode to be measured, and the black test lead to the cathode. - Page 8 AC VOLTAGE RANGE RESOLUTION ACCURACY 200V 100mV (±1.2% of reading + 10 digits) 750V Overload Protection: 1000VDC or 750VAC for all ranges. Response: Average, calibrated in RMS of SINE. Frequency Range: 45Hz-450Hz DC CURRENT RANGE RESOLUTION ACCURACY 2000μA 1μA 20mA 10μA (±2.0% of reading + 10 digits) 200mA...
-
Page 9: Replacing Fuses
MAINTENANCE BATTERY INSTALLATION To avoid false readings, replace the battery every 6 months if the device is used regularly. 1) Turn power off and disconnect the test leads from the meter. 2) Open the rear cover with a screwdriver. 3) Remove the old battery and insert the new battery into the battery holder, observing the correct polarity. -
Page 10: Warranty
WARRANTY The product is protected by a 2-year warranty (from the date of purchase) covering all product manufacturing defects/faults that may occur within this timeframe. This warranty does not cover damage caused by neglect, misuse, contamination, alteration, accident or abnormal conditions of operation or handling, including failures caused by use outside of the products specifications, or normal wear and tear of the mechanical components. - Page 11 PAGE INTENTIONALLY LEFT BLANK...
- Page 12 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.electusdistribution.com.au...
Need help?
Do you have a question about the QM1500 and is the answer not in the manual?
Questions and answers
to test the voltage in a 12volt car battery, do I use the left hand side of the QM-1500 labled V... at 20.
To test the voltage in a 12-volt car battery using the Protech QM1500:
1. Insert the black test lead into the COM (negative) jack.
2. Insert the red test lead into the VΩ (positive) jack.
3. Set the function switch to a DC voltage range above 12V, such as 20V.
4. Connect the black lead to the battery's negative terminal.
5. Connect the red lead to the battery's positive terminal.
6. Read the voltage on the display.
Make sure the test leads and battery terminals are clean and secure during testing.
This answer is automatically generated
