- Page 1 Wireless SPECIALIST Datalogging Digital Multimeter LIFETIME WARRANTY 4000 CAT IV DISPLAY 600V COUNT TRUE IP67...
- Page 2 QM1571 Wireless Data Logging Digital Multimeter User Manual Thank you for purchasing this Wireless Data Logging Digital Multimeter. The wireless communication function of this multimeter allows you to transmit data wirelessly from the multimeter to your PC. This allows accurate recording at a much faster and detailed rate than manually writing down numbers.
- Page 3 FUNCTIONS Max. Display 4000 count Basic Accuracy 0.5% DC Voltage Range 400mV - 1000V AC Voltage Range 4V - 1000V DC Current Range 4mA -10A AC Current Range 4mA - 10A Resistance 400Ω - 40MΩ Capacitance (CAP) 4nF - 100µF Frequency (Hz) Up to 10MHz Temperature...

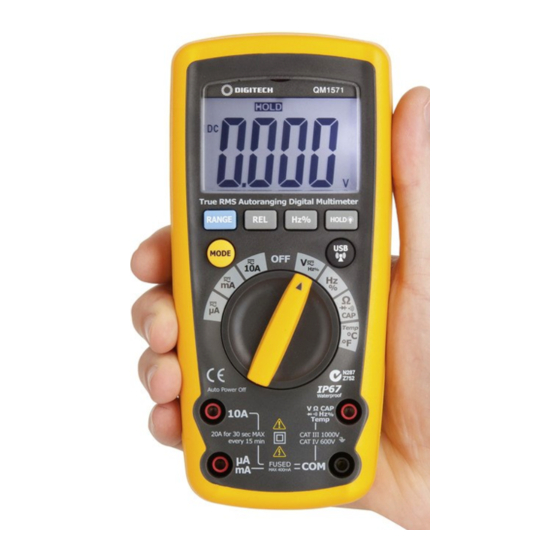

- Page 4 LCD Screen Relative Hz% Button Button Hold & Range Button Flashlight Button USB Button Mode Button Function Switch Positive mA, μA 10A Input Jack Input Jack Positive mA, μA COM Input Jack Input Jack The tilt stand & battery compartment are at the rear of the multimeter.
- Page 5 FUNCTIONS Autoranging/ • The meter’s default setting is autoranging. This Manual automatically selects the best range for the selected test/measurement. • To set the meter to manual, press the “RANGE” button. The AUTO icon on the screen will turn off. •...
- Page 6 Hz% Button • For use with frequency and duty cycle measurements. • Press the button to select either frequency or duty cycle. USB Button • To use the wireless communication, first install the software onto your computer. The software disc is located in the box of this multimeter.
-
Page 7: Ac/Dc Voltage Measurement
SYMBOL DESCRIPTION Continuity Diode Test Low Battery Farads (Capacitance) Ω Ohms Hertz (Frequency) Volts A, mA, µA Current Range Alternating Current / Voltage AUTO Autoranging Direct Current / Voltage HOLD Display Hold AC/DC VOLTAGE MEASUREMENT On some low AC and DC voltage ranges - when test leads are not connected to a device - the display on the screen may show a random, changing reading. -
Page 8: Dc Current Measurement
DC CURRENT MEASUREMENT Do not measure 20A currents for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or test leads. 1) Insert the black test lead banana plug into the negative COM jack. • For current measurements up to 4000μA DC, set the function switch to the μA position and insert the red test lead banana plug into the μA jack. -
Page 9: Ac Current Measurement
DC CURRENT MEASUREMENT Do not measure 20A currents for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or test leads. 1) Insert the black test lead banana plug into the negative COM jack. • For current measurements up to 4000μA DC, set the function switch to the μA position and insert the red test lead banana plug into the μA jack. -
Page 10: Resistance Measurement
RESISTANCE MEASUREMENT To avoid electric shock, disconnect power to the test area and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords. 1) Set the function switch to the Ω CAP position. 2) Insert the black test lead banana plug into the negative COM jack. 3) Insert the red test lead banana plug into the positive Ω... -
Page 11: Capacitance Measurements
A) If one reading shows a value and the other reading shows OL, the diode is good. B) If both readings show OL, the device is open. C) If both readings are very small or zero, the device is shorted. CAPACITANCE MEASUREMENTS To avoid electric shock, disconnect power to the area being tested and discharge all capacitors before taking any capacitance measurements. - Page 12 MEASUREMENT SPECIFICATIONS The following guide is based on an environmental temperature of 18- 28°C and humidity <70%. DC VOLTAGE RANGE RESOLUTION ACCURACY 400mV 0.01mV 0.1mV ±(0.8% reading + 2 digits) 10mV 400V 100mV 1000V ±(1.0% reading + 2 digits) Input impedance: 10MΩ; Max. input voltage: 1000V DC AC VOLTAGE RANGE RESOLUTION...
- Page 13 DC CURRENT RANGE RESOLUTION ACCURACY 400µA 0.1µA 4000µA 1µA ±(1.2% reading + 3 digits) 40mA 10µA 400mA 100µA 10mA ±(2.5% reading + 3 digits) Overload protection: fuse FF500mA/1000V and fuse F10A/1000V. Maximum inputs: 400µA DC (µA range), 400mA DC (mA range), 10A DC (10A range).
- Page 14 RESISTANCE RANGE RESOLUTION ACCURACY 400Ω 0.1Ω ±(0.8% reading + 5 digits) 4kΩ 1Ω 40kΩ 10Ω ±(0.8% reading + 2 digits) 400kΩ 100Ω 4MΩ 1kΩ ±(2.5% reading + 8 digits) 40MΩ 10kΩ Input protection: 1000VDC or 1000VAC RMS CAPACITANCE RANGE RESOLUTION ACCURACY 40nF 10pF...
- Page 15 FREQUENCY RANGE RESOLUTION ACCURACY 0.001Hz 40Hz 0.01Hz 400Hz 0.1Hz ±(1.0% reading + 3 digits) 4kHz 40kHz 10Hz 400kHz 100Hz 5MHz 1kHz ±(1.2% reading + 4 digits) Overload protection: 1000VDC or 1000VAC RMS. Sensitivity >0.5V while ≤1MHz, >3V while >1MHz. TEMPERATURE RANGE RESOLUTION ACCURACY...
-
Page 16: Audible Continuity
DIODE TEST TEST CURRENT RESOLUTION ACCURACY 1mA typical/open ±(10% reading + 5 digits) max 3V Open circuit voltage max 3V; overload protection 1000VDC or 1000VAC RMS. AUDIBLE CONTINUITY THRESHOLD TEST CURRENT Less than 150Ω Maximum 1.5mA MAINTENANCE BATTERY INSTALLATION To avoid the false readings, replace the battery as soon as the low battery power indicator appears. -
Page 17: Specifications
SPECIFICATIONS Enclosure: Double-molded AC Response: TRMS Display: 4,000 count LCD display Over Range Indication: “OL” is displayed Auto Power: 30 min (approx) Polarity: Automatic (no indication for positive); minus (-) sign for negative Low Battery Indication: is displayed if battery voltage drops below operating voltage Battery: 1 x 9V... - Page 18 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
