Summary of Contents for Titan TTS765VAC

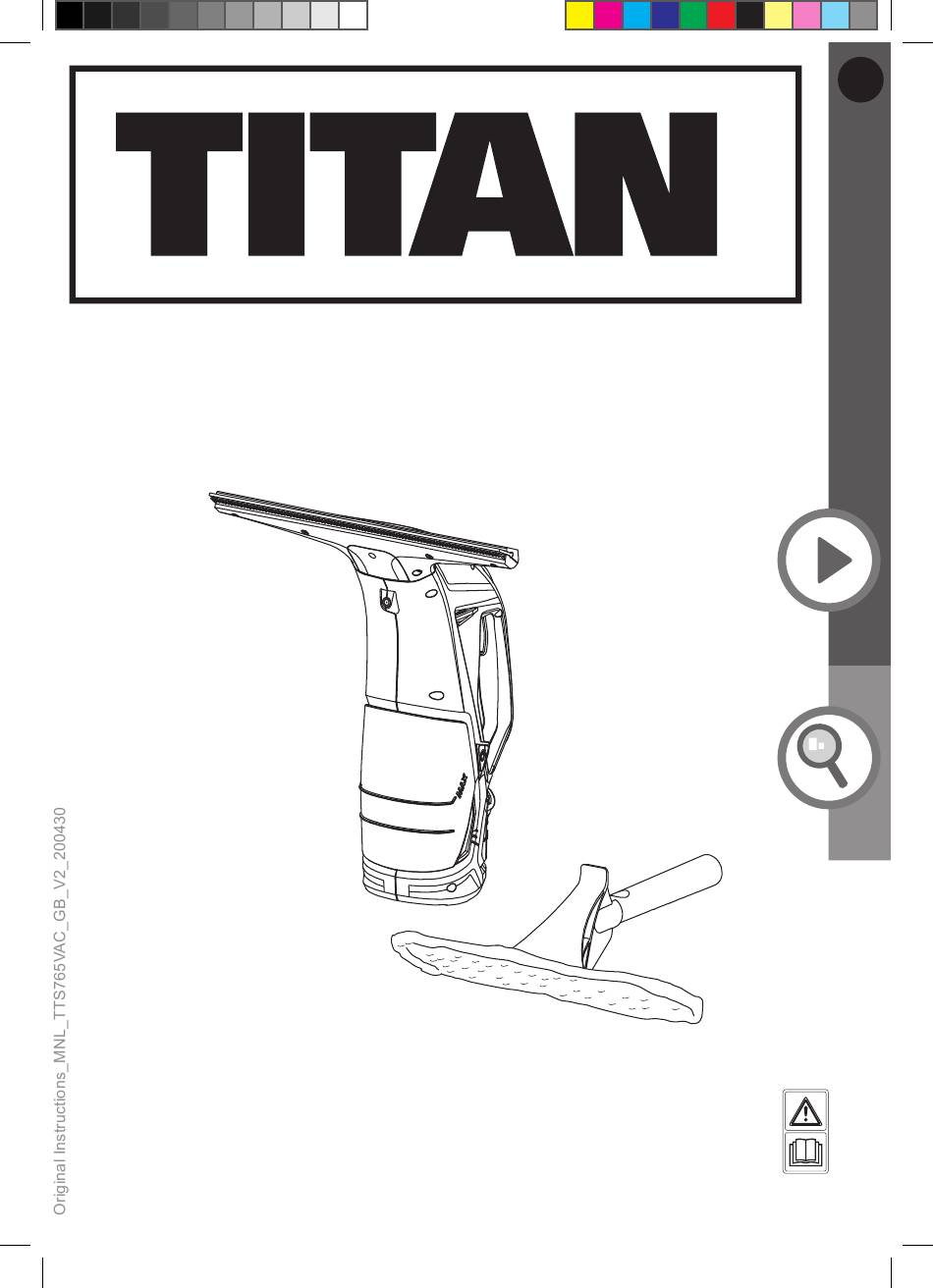

- Page 1 3.7 V Window Cleaner TTS765VAC EAN: 5059340085890 CAUTION: Read the instructions before using the machine. MNL_TITAN_GB_3.7 V window cleaner_TTS765VAC_V2_200430.indd 1 4/30/20 11:43 AM...
- Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 3: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_TITAN_GB_3.7 V window cleaner_TTS765VAC_V2_200430.indd 3 4/30/20 11:43 AM... - Page 4 Safety information TTS765VAC by TITAN Safety warnings 1. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Safety Information
TTS765VAC by TITAN Safety information 14. If there is any possibility that the product or detergents could harm or discolour a surface, it is recommended that compatibility be tested in an inconspicuous area before use. 15. Do not use undiluted acids, acetone or solvents. - Page 6 Safety information TTS765VAC by TITAN Safety warnings 4. Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of an open flame. An exploded battery can propel debris and chemicals.
- Page 7 TTS765VAC by TITAN Safety information 6. Do not attempt to charge battery packs other than those supplied. The charger and battery pack supplied with it are specifically designed to work together. 7. Before each use, check the charger, cable and plug.
- Page 8 Safety information TTS765VAC by TITAN Safety warnings 15. The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. For the first recharge cycle, charge the battery pack fully. Slot the battery into the base and plug the battery charger into an outlet.
- Page 9 TTS765VAC by TITAN Safety information 7. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome. To reduce this risk when using the product, always wear protective gloves and keep your hands warm.
-
Page 10: Your Product
Safety information / Your product Safety information / Your product TTS765VAC by TITAN Safety warnings 3. Danger of injury and property damage caused by flying objects. WARNING! This product produces electromagnetic field during operation! This field may under some circumstances interfere with... - Page 11 TTS765VAC by TITAN Your product 1. Suction head 8. Spray nozzle 2. On/off switch 9. Wiper 3. Spray trigger a) Head 4. Charger port b) Handle 5. Spray bottle 10. Wipe cloth 6. Release lever (X2) 11. Charger 7. Dirty water tank General >...
- Page 12 Your product TTS765VAC by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
- Page 13 TTS765VAC by TITAN Your product / Before you start TTS765VAC Designation of the tool (TT - TITAN, 765 – Model Number, VAC – Vacuum Cleaner) Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable.
- Page 14 Before you start TTS765VAC by TITAN Suction head Attaching > Align the suction head (1) to the suction port (1a) of the product (Fig. 1). Insert the suction head into the suction port all the way to the end. Ensure it engaged properly.
-
Page 15: Before You Start
TTS765VAC by TITAN Before you start Fig. 4 Charger Use the charger (11) to charge the battery inside the product. WARNING! Do not to charge the product with liquid in either the spray bottle or the dirty water tank. Battery has been shipped in a low charge condition. -
Page 16: In More Detail
TTS765VAC by TITAN more detail... Product functions Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_TITAN_GB_3.7 V window cleaner_TTS765VAC_V2_200430.indd 16 4/30/20 11:43 AM... - Page 17 TTS765VAC by TITAN Product functions Intended use The product is designated with a rated voltage of 3.7 V The wiper is intended for domestic use to remove dirt from smooth, non-porous surfaces such as glass, mirrors and tiles. The machine is intended for domestic use to vacuum liquids from smooth, non-porous surfaces such as glass, mirrors and tiles.
- Page 18 Product functions TTS765VAC by TITAN Spray trigger > Press the spray trigger (3) to spray the detergents out from the spray nozzle (8). > It might need press the trigger several times to spray the detergents at initial use. Fig. 7 Dirty water tank Liquid on the surface to be cleaned is collected to the dirty water tank (7).
- Page 19 TTS765VAC by TITAN Product functions Attaching the dirty water tank > Align the dirty water tank inlet (7a) to the drain port (7b). > Push the dirty water tank (7) to attach it on the product (Fig. 9). Ensure the dirty water tank is engaged properly on both sides.
- Page 20 Product functions TTS765VAC by TITAN Operation NOTE: Only use the appliance in combination with regular no foam window cleaning agent. > Fill the spray bottle with detergent mixed with water. NOTE: Always follow dilution and/or concentration instructions given on packaging of suitable cleaning agents.
- Page 21 TTS765VAC by TITAN Product functions WARNING! Do not use it horizontally/more than 90° for a long time which avoids the water overflow from the dirty water tank (7). > If water level reach the max. mark, switch off the product and empty the tank.
- Page 22 Care and maintenance TTS765VAC by TITAN The golden rules for care WARNING! Always switch the product off and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.
- Page 23 TTS765VAC by TITAN Care and maintenance Suction head > Disassemble the suction head (1). > Clean the chamber, wiper blade (1c) and wiper brush (1d) with water (Fig. 13). > Dry the whole suction head before reassembling. Fig. 13 Dirty water tank >...
-
Page 24: Troubleshooting
Care and maintenance / Troubleshooting TTS765VAC by TITAN Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage >... -
Page 25: Recycling And Disposal
TTS765VAC by TITAN Troubleshooting / Recycling and disposal Problem Possible cause Solution 1. Product does 1.1. Battery discharged 1.1. Recharge battery not start 1.2. Battery too hot/cold 1.2. Allow to cool/warm 1.3. Other electrical defect to 1.3. Contact your nearest... - Page 26 Manufacturer, Fabricant, Producent, Hersteller, Producător, Fabricante: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: B&Q Limited, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com SFD Limited Trade House, Mead Avenue Yeovil BA22 8RT, United Kingdom To view instruction manuals online,...
Need help?
Do you have a question about the TTS765VAC and is the answer not in the manual?
Questions and answers

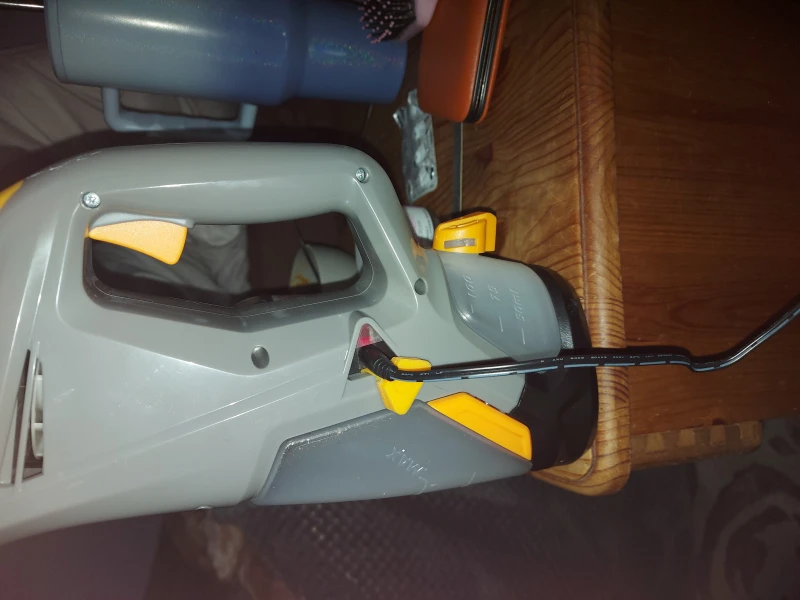

My machine when charging the light is red
The charging light on the Titan TTS765VAC is red because the battery is currently charging.
This answer is automatically generated
I am trying to get a cap for the cleaning tank on a titan TTS765vac phoned number on back of instruction been to be told that Kingfisher customer number should not be on the book all i need is to purchase a cap as the one i have is broken
