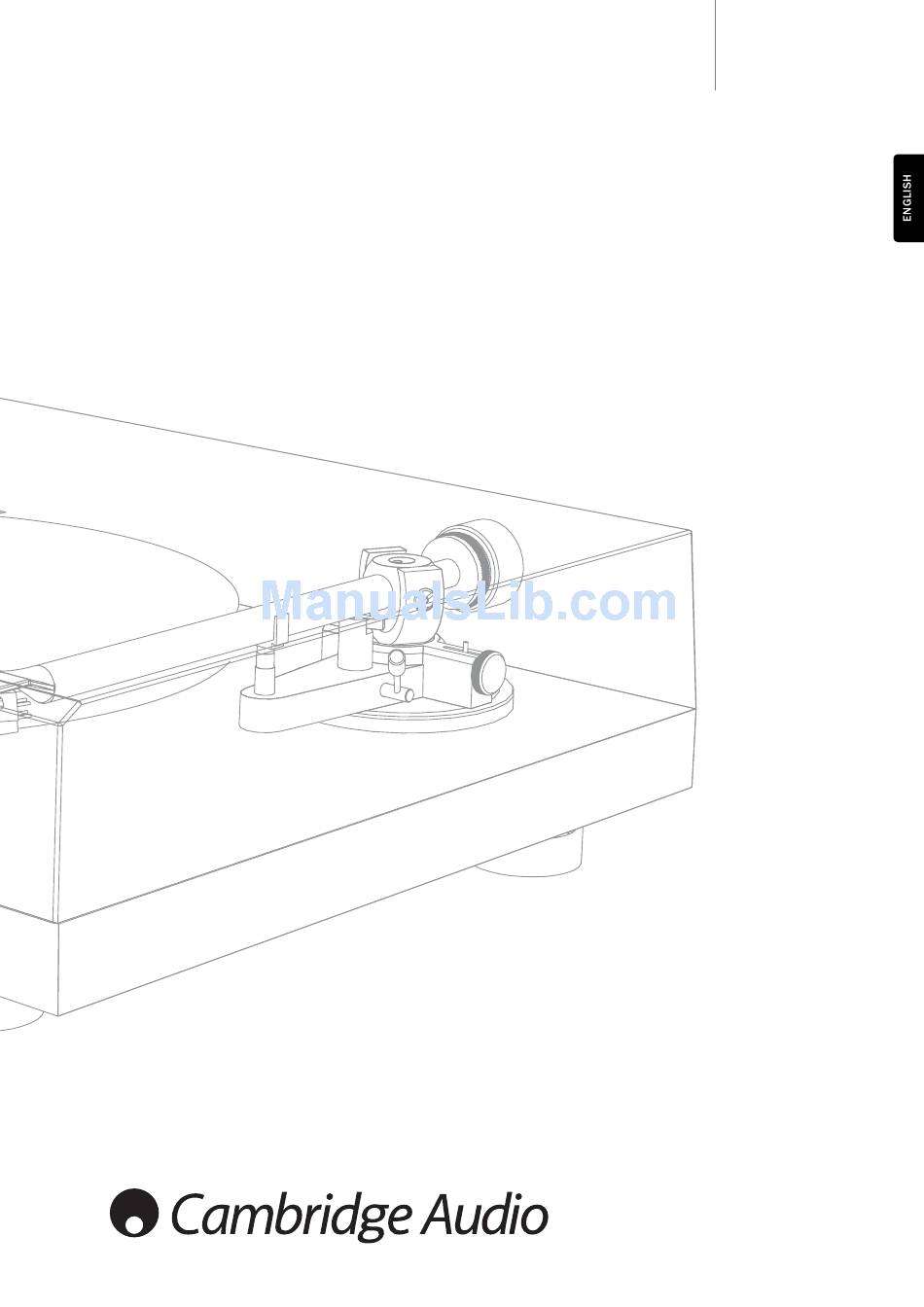

- Page 1 T T50 Turntable User’s manual...
-
Page 2: Table Of Contents
Audio Technica AT95E Moving Magnet cartridge fully aligned and setup at the factory. The TT50 should always be mounted on a good quality level support, preferably one designed for use with turntables. Your turntable can only be as good as the system it is connected to. -
Page 3: Limited Warranty
To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. -
Page 4: Important Safety Instructions
Important safety instructions Please take a moment to read these instructions before installing your TT50, as they will enable you to get the best performance and prolong the life of the unit. We advise you follow all instructions, heed all warnings and keep the instructions for future reference. -
Page 5: Assembly/Setup
Assembly/setup Before using your TT50 for the first time it is necessary to remove the transit screws and fit the drive belt, platter and lid. Please very carefully remove the parts separately from the packaging. Drive belt 1. First remove the two red transport screws which secure the motor during transportation. -
Page 6: Cartridge Downforce Adjustment
Note: The recommended downforce for the factory fitted cartridge is 20mN / 2.0g. The TT50 features a magnetic anti-skate which applies a non contact force to the arm to counter-act the natural force applied by the record as the stylus is forced towards the center of the spiralling groove. -
Page 7: Tt50 Features
Raises and lowers the arm onto the record to be played. Starts and stops the motor. Turntable cover. The turntable is supplied with a 16V AC power supply suitable for your country's mains supply. Check the label before connecting to ensure compliance with the mains rating in your home. -
Page 8: Operating Instructions
Operating instructions The TT50 is compatible with 33 1/3rpm and 45rpm records between 7” and 12”. Place the record over the spindle holding the record only by its outermost edge. Before playing it is a good idea to clean the record using an appropriate... -
Page 9: Cartridge Alignment
The idea of cartridge alignment is to minimise this inherent error. A simple alignment protractor is included in this manual to facilitate this. Note: The TT50 is fully aligned at the factory for the supplied AT95E cartridge and does not require this adjustment to be made unless a new or different cartridge is fitted. -
Page 10: Adjusting The Azimuth
Cartridge replacement/adjustment continued The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly. A small screw at the bearing end of the arm allows incorrect azimuth to be corrected if your needle is not mounted exactly perpendicular to the cartridge body (which can be the case). -
Page 11: Technical Specifications
Bad connections, plugs not fully pushed home. Tracking force and/or anti-skate incorrectly adjusted. For more frequently asked questions (FAQs), technical advice and information on getting the most out of your TT50, please visit the Support section on Cambridge Audio’s website: www.cambridgeaudio.com/support.php... - Page 12 Cambridge Audio Gallery Court Hankey Place London SE1 4BB England www.cambridge-audio.com © 2007 Cambridge Audio Ltd...
