Composite-ARF CARF-Models Spitfire Building Instructions page 5

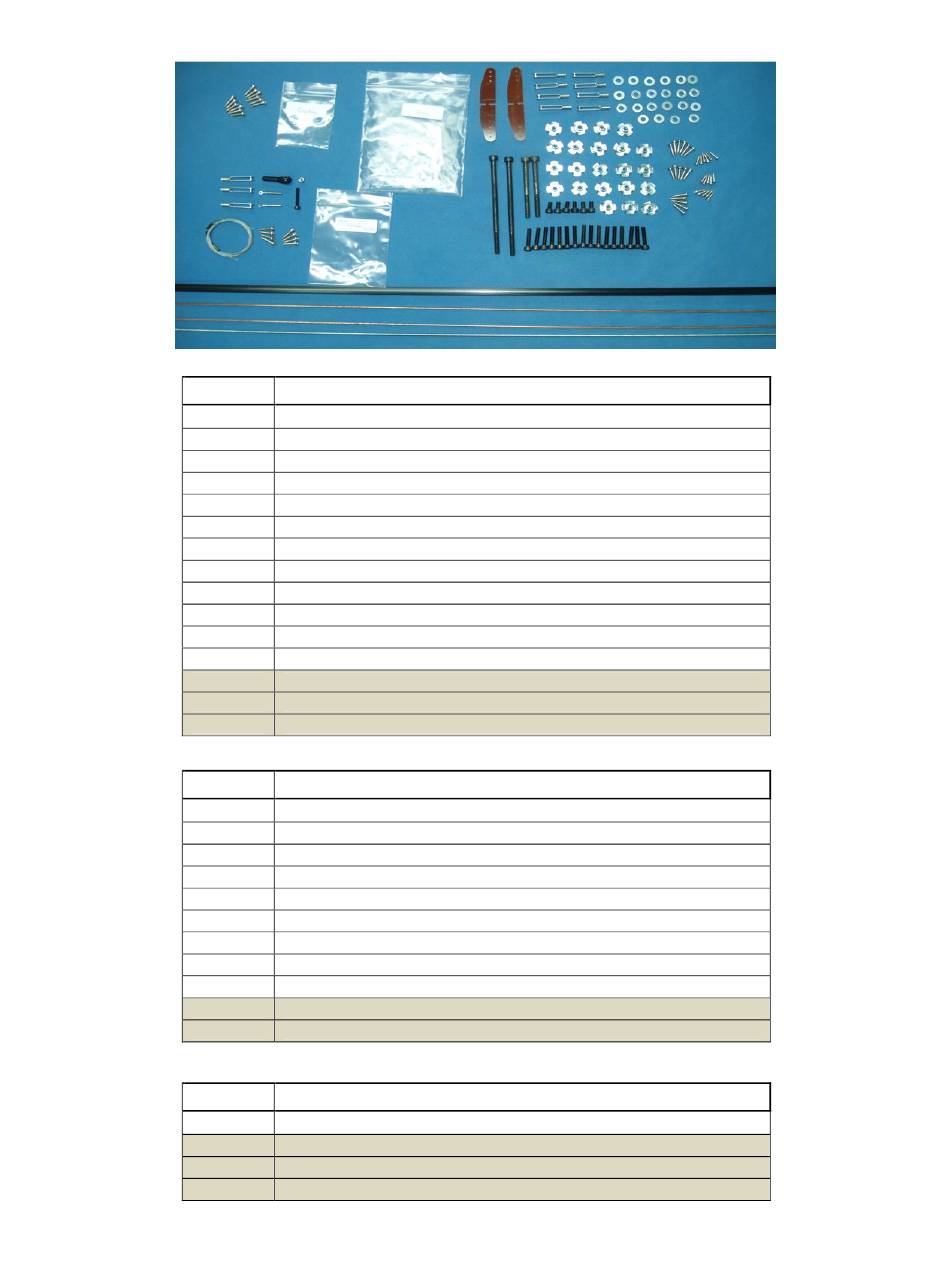

Hardware
Wing pack
Quantity Description
2 Allen screw M5 x 60 Wings mount rear
2 Allen screw M5 x 100 Wing mount front
1 Plywood 3 x15 x 500mm Strip for servo hatches
4 Phenolic small control for Aileron and Flap
8 Steel spring clevises M3 for Aileron and Flap
6 T-Nut M4 for plywood servo mount
16 T-Nut M4 for Landing gear mount
6 Allen screw M4 x 8mm for plywood servo mount
16 Allen screw M4 x20mm for Landing gear mount
22 Washer M4 for all M4 screws
16 Sheet metal screws 2.2 x 9.5 for mount servo hatches
16 Sheet metal screws 2.9 x 13 for servo mount
1 All thread M3 x 1000mm Long for all linkage
4 Plywood 3 mm servo mount set milled for Aileron, Flap
1 Plywood 1.5 x 13 x 600mm Strip for Aileron, Flap servos mount
Stab/Elevator/Rudder pack
Quantity Description
3 Steel spring clevises M3 for Elevator 1pc, Rudder 2 pcs
2 Thread end with hold for Rudder
1 Pull-Pull wire dia 0,65 x 1200 mm. Long for Rudder
4 Camp tube for pull-pull wire
8 Sheet metal screws 2.9 x 13 for servo mount
1 Plastic ball ink M3 for Elevator
1 Allen screw M3 x 20 mm. for Elevator control horn
1 Stop nut M3
2 Hinge pin 1 meter long
1 Carbon Tube OD8, ID6 1000 mm long for Elevator
1 Plywood 3 mm servo tray milled for Rudder and Elevator
Fuselage pack
Quantity Description
12 Sheet metal screws 2.9 x 13 mm. for cowling mount
1 Throttle servo mount milled
2 Plywood 3 mm. firewall milled
1 Plywood 3 x15 x 500mm Strip for servo cowling mount
Composite-ARF Spitfire
Separate
Pack
Separate
Pack
Separate
Pack
5
