Summary of Contents for NuEyes e2+

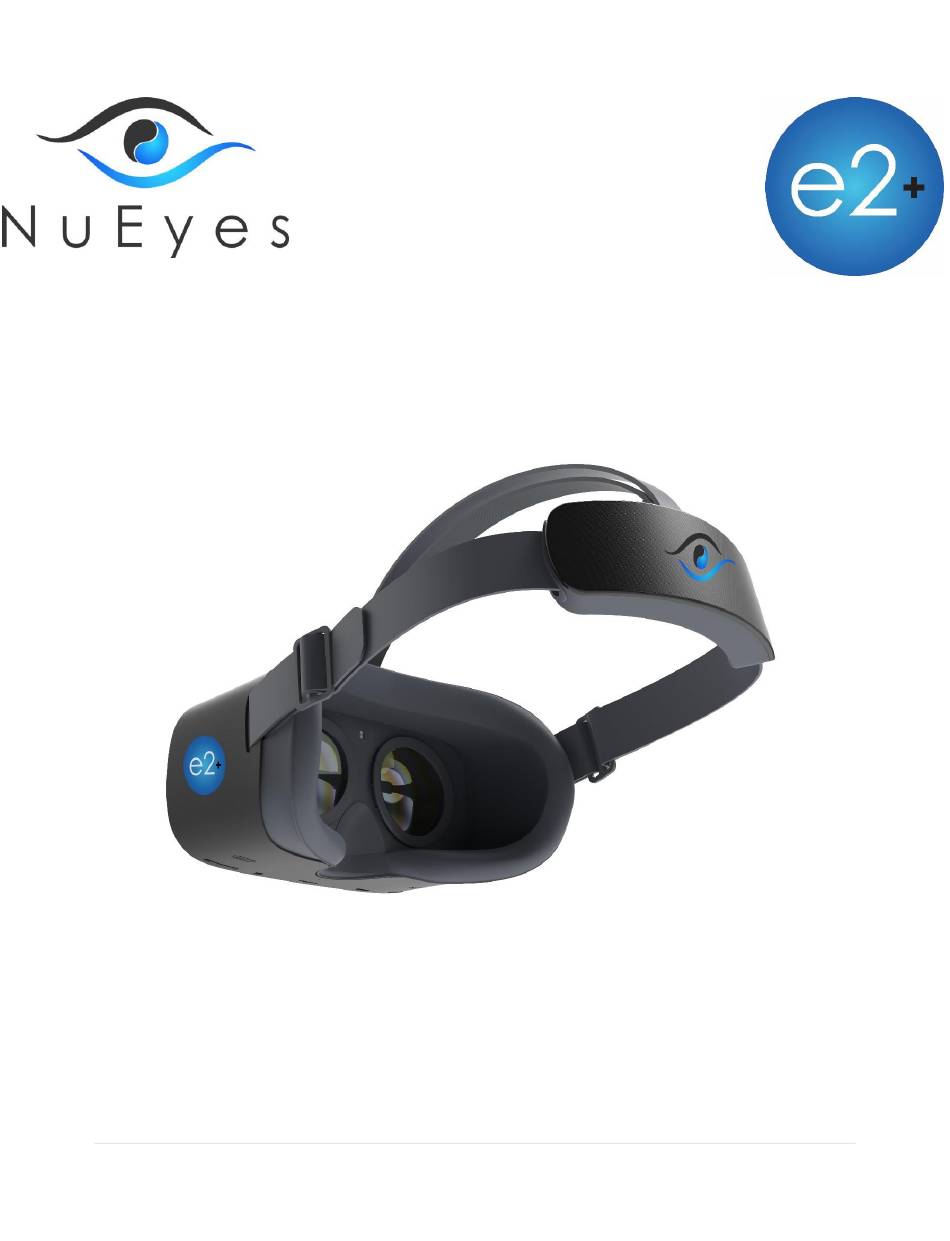

- Page 1 Empowering Your Vision User’s Manual P a g e...
- Page 2 *IMPORTANT SAFETY INSTRUCTIONS* READ THESE INSTRUCTONS CLEAN WITH A DRY SOFT CLOTH *DO NOT WALK OR DRIVE WITH THE E2+ BY NUEYES* DO NOT EXPOSE INTERIOR LENSES TO SUNLIGHT *CHARGE YOUR BATTERY BEFORE USE* P a g e...
- Page 3 What’s Included CAREFULLY UNPACK AND CONFIRM THE FOLLOWING PARTS ARE INCLUDED 1. Your e2+ Device 2. Cleaning Cloth 3. Block Charger 4. Charging Cord 5. Remote Control P a g e...
- Page 4 How to Put On Your e2+ For Maximum Clarity And Comfort 1. Please turn on your e2+ by pressing the power button on the below right-hand side of the product **PLEASE NOTE OUR APPLICATION WILL TAKE 10-12 SECONDS TO LOAD. DO NOT PRESS ANY BUTTONS** P a g e...
- Page 5 2. Align the lenses/screen to your eyes 3. Once aligned gently place the strap over your head 4. Once strap is on your head, adjust the side straps tighter or looser for maximum comfort and clarity ***PLEASE NOTE IF THE IMAGE DOES NOT LOOK CLEAR TO YOU ADJUST THE e2+ UP OR DOWN ON YOUR FACE*** P a g e...
- Page 6 Magnifying with Your e2+ 1. To increase magnification, press the top button on the right-hand side of your e2+ When you reach the maximum magnification, an icon displaying MAX will appear. P a g e...
- Page 7 2. To decrease magnification, press the middle button on the right- hand side of your e2+ Once at lowest magnification an icon displaying the word MIN will appear P a g e...
- Page 8 Changing Contrast with Your e2+ To change contrast: Press the Left or Right underside (Volume) button of your e2+. The contrasts will cycle 5 levels of contrast. through P a g e...
- Page 9 Using OCR-Text To Speech with e2+ 1. To use the OCR feature: Press and hold down the magnification button for 2 seconds. The OCR will start on its own P a g e...
- Page 10 E2+ Menu 1. To access your e2+ Menu: Press and hold down the contrast/volume or left underside button for 2 seconds 10 | P a g e...
- Page 11 2. Once in the menu you have four options. Vision (Brightness control 40- 100, Language) OCR (Gender voice, Speed, Volume, Text Color, Highlight Color) Settings (Where to set up WIFI) Update (OTA - Over the Air) 3.
- Page 12 5. To exit please hold the contrast button for 2 seconds. Turning OFF/ Powering Down Your e2+ 1. Simply press and hold the power button for 2 seconds. The NuEyes logo will appear (Chimes) Screen will turn black indicating the device is off.
- Page 13 2. Take device off or Lay down the device to go into “sleep mode” Charging Your e2+ Simply plug your USB cord into the slot next to the power button. 13 | P a g e...
- Page 14 1. A light appears next to the charging plug indicating it is charging. (Red Light needs charge) if Red Light does not change or device does not charge (Hold power button for 10 secs, this will reboot the device) 2. Blue light, charging - Forest green light, fully charged.
- Page 15 3. If you are not sure it is charging, please (quick press power button) look in screen, large white battery shows charging. Rebooting Your e2+ Press power button for 10 seconds Turn device on by pressing power button NuEyes app will load 15 | P a g e...
- Page 16 Please find e2 product line training video https://youtu.be/- 79ImvpUmeU www.nueyestech.de e2 product tab 16 | P a g e...
- Page 17 Quick Reference Guide: Yellow Dot Bottom right POWER BUTTON Orange Dot Bottom mid MARKER FOR USB PLUG IN left e2+ HOLD 2 SEC Red Dots Bottom QUICK MENU/ QUICK PRESS CONTRAST 17 | P a g e...
- Page 18 Upper Right-Hand Yellow Dot INCREASE MAGNIFICATION/TOGGLE feature for Quick menu Upper Right Hand 2 Red dots (1 button) DECREASE MAGNIFICATION/SELECT feature for Quick menu 18 | P a g e...
- Page 19 Technical Specifications Display Qualcomm Snapdragon 835 Weight 298g (w/o Band) Refresh rate 75hz Storage 128G Battery 3-5 Hours (depending on heavy usage) Tracking 3DOF Camera Camera 16mp 19 | P a g e...
