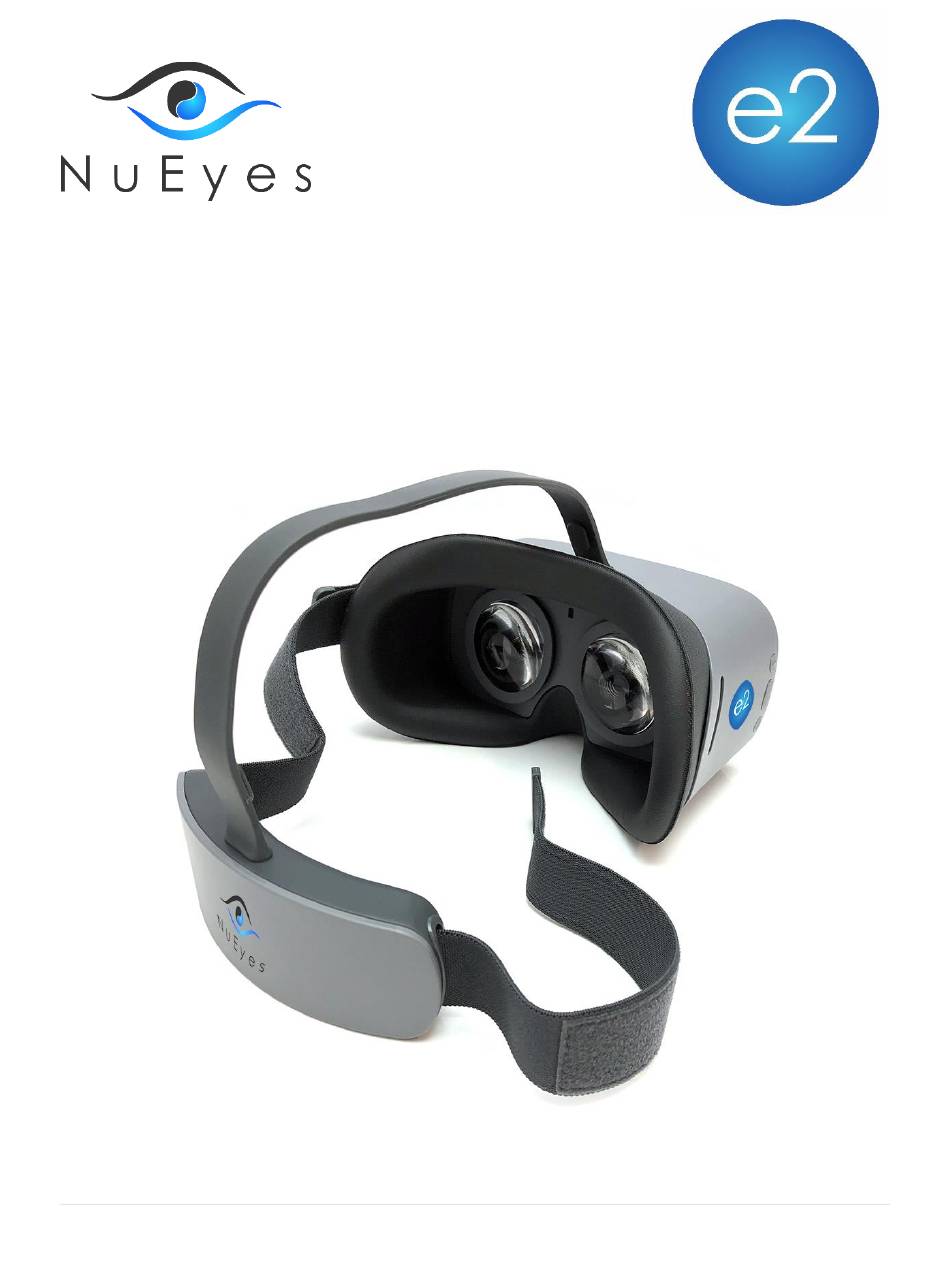

- Page 1 “Empowering Your Vision” User’s Manual P a g e...
- Page 2 *IMPORTANT SAFETY INSTRUCTIONS* READ THESE INSTRUCTONS CLEAN WITH A DRY SOFT CLOTH *DO NOT WALK OR DRIVE WITH THE E2 BY NUEYES* DO NOT EXPOSE INTERIOR LENSES TO SUNLIGHT FOR EXTENDED PERIODS OF TIME *CHARGE YOUR BATTERY BEFORE USE* P a g e...
- Page 3 What’s Included CAREFULLY UNPACK AND CONFIRM THE FOLLOWING PARTS ARE INCLUDED Your e2 Device Cleaning Cloth Block Charger Charging Cord Remote Control (VR Applications/ Updates via e2 App) P a g e...
- Page 4 How to Put On Your e2 For Maximum Clarity And Comfort 1. Please turn on your e2 by pressing the power button on the below right-hand side of the product **PLEASE NOTE OUR APPLICATION WILL TAKE 10-12 SECONDS TO LOAD. DO NOT PRESS ANY...
- Page 5 2. Align the lenses/screen to your eyes 3. Once aligned gently place the strap over your head P a g e...
- Page 6 4. Once strap is on your head, adjust the side straps tighter or looser for maximum comfort and clarity ***PLEASE NOTE IF THE IMAGE DOES NOT LOOK CLEAR TO YOU ADJUST THE e2 UP OR DOWN ON YOUR FACE*** P a g e...
- Page 7 Magnifying with Your e2 1. To increase magnification, press the top button on the right-hand side of your e2 When you reach the maximum 18x of magnification an icon displaying MAX will appear. P a g e...
- Page 8 2. To decrease magnification, press the middle button on the right- hand side of your e2 Once at 2x magnification an icon displaying the word MIN will appear P a g e...
- Page 9 Changing Contrast with Your e2 To change contrast: Press the Left or Right underside (Volume) button of your e2. The contrasts will cycle through • Press 1x Black on White • Press 2x White on Black • Press 3 x Normal Video...
- Page 10 Using OCR-Text To Speech with e2 1. To use the OCR feature: Press and hold down the zoom, or magnification button for 2 seconds. The OCR will start on its own 10 | P a g e...
- Page 11 E2 Menu 1. To access your e2 Menu: Press and hold down the contrast/volume or left underside button for 2 seconds 11 | P a g e...
- Page 12 2. Once in the menu you have four options. ➢ Vision (Brightness, Language) ➢ OCR (Gender voice, Speed, Volume, Text Color, Highlight Color) ➢ Settings (Where to set up WIFI) ➢ Update (OTA - Over the Air) 3. To select each option, press the middle right button (decrease magnification) 4.
- Page 13 Turning OFF/ Powering Down Your e2 1. Simply press and hold the power button for 2 seconds. The NuEyes logo will appear (Chimes) Screen will turn black indicating the device is off. 2. Lay down the device to go into “sleep mode”...
- Page 14 Charging Your e2 Simply plug your USB cord into the hole next to the power button. Battery Life 3 to 8 hours (depending on use) 14 | P a g e...
- Page 15 1. A light appears next to the charging plug indicating it is charging. (Red Light needs charge) 2. Blue light, charging - Forest green light, fully charged. (30min to 1 hour) 3. If you are not sure it is charging, please (quick press power button) look in screen, large white battery shows charging.
- Page 16 Rebooting Your e2 Press power button for 10 seconds Turn device on by pressing power button NuEyes app will load 16 | P a g e...
- Page 17 Quick Reference Guide: ➢ Black Dot Bottom right POWER BUTTON ➢ Orange Dot Bottom mid MARKER FOR USB PLUG IN ➢ Upper Right-Hand Black dot INCREASE MAGNIFICATION/Select ➢ Upper Right Hand 2 Red dots (1 button) DECREASE MAGNIFICATION/SELECT 17 | P a g e...
- Page 18 Technical Specifications Display Qualcomm Snapdragon 835 Weight 268g Refresh rate 90hz Storage Content NuEyes e2 APP Tracking 3DOF Camera 1 RGB Camera 18 | P a g e...
