ICG IC-IC2B1-01 Manual

Hide thumbs

Advertisement

Quick Links

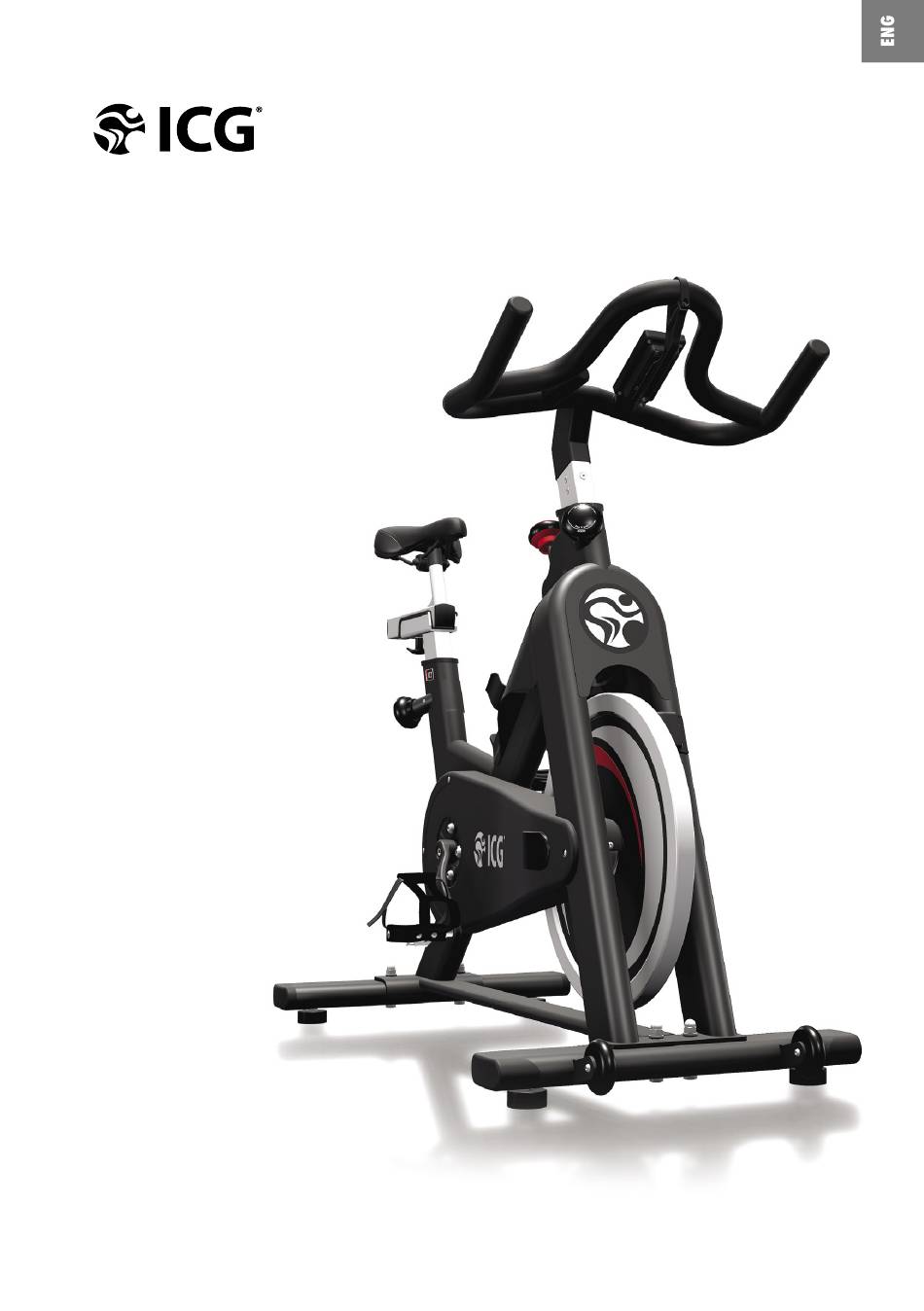

IC2
MODEL NO: IC-IC2B1-01
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
MANUFACTURED BY:
Cy-Tech GmbH
Happurger Str. 86
90482 Nuremberg | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50

Advertisement

loading

Related Manuals for ICG IC-IC2B1-01

Summary of Contents for ICG IC-IC2B1-01

  • Page 1 READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 2 7. Spinning pedals can cause injury. 8. This bike does not free-wheel. 9. Pedal speed should be reduced in a controlled manner. WARNING — Use the stationary training equipment in a supervised environment. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 3 ATTENTION To download the owners manual in Lataa omistajan käsikirja omalla your language, visit the IC2 support kielelläsi IC2-ohjeosiosta sivustolta: section at: www.teamicg.com www.teamicg.com Um das Handbuch in Ihrer Sprache Du kan laste ned bruksanvisningen herunterzuladen, besuchen Sie bitte på ditt eget språk ved å gå til IC2 den IC2 Support Bereich auf unserer støttesiden på: www.teamicg.com Webseite unter www.teamicg.com...

  • Page 4: Table Of Contents

    CORPORATE OFFICES P.27 TECHNICAL SPECIFICATIONS: The ICG IC2 Bike is according to EN ISO 20957-1 and EN ISO 20957-10, a Class S product for use in a controlled environment such as sports or fitness facilities under the supervision of a trainer.

  • Page 5: Important Precautions

    IMPORTANT PRECAUTIONS WARNING! To reduce the risk of serious injury due to improper use of the training equipment, carefully read and adhere to the following important precautions and information before operating the bike. 1. It is the responsibility of the owner to ensure that all users are informed of all warnings and precautions for proper use of the training equipment and it is only authorized for use in a supervised environment with qualified instructors.
  • Page 6 Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...

  • Page 7: Getting Started

    CHAIN GUARD FLYWHEEL PEDAL /TOE CLIP TRANSPORT WHEEL MAINTENANCE COVER LEVELLING FEET YOU WILL FIND THE PRODUCTION CODE ON THE LEFT SIDE OF THE ICG IC2 WITHIN THE LOWER RANGE OF THE FRAME. PLEASE REGISTER THESE IN SERVICING AND MAINTENANCE LISTS.

  • Page 8: How To Assemble The Indoor Cycle

    ASSURE THAT PLASTIC GASKET IS PLACED BETWEEN ASSURE THAT BLACK RUBBER WASHER IS PLACED STABILIZER AND FRAME. GASKET SHOULD NOT BE BETWEEN UPPER FRAME AND BOLT/WASHER. VISIBLE ONCE ASSEMBLED. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 9 HOW TO ASSEMBLE THE INDOOR CYCLE 2X 17MM 15MM 1X 13MM PEDAL WRENCH PEOPLE STOP MARK WARNING! Make sure the seat is fixed properly in a LEVEL HORIZONTAL position and securely tigthend from both sides! 25NM...
  • Page 10 STOP MARK WARNING! Pedal marked R installed on right crank (clockwise). Pedal marked L installed on left crank (counter- clockwise) Pedals must be fastened with significant strength to avoid loosening with use of the ICG IC2. 55NM STOP MARK Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...

  • Page 11: Initial Installation Checks

    (for example BRUNOX), and white lithium grease. 1. Make sure that the ICG IC2 is leveled. If the ICG IC2 rocks on the floor, turn the leveling feet underneath the front and/or rear stabilizer until the rocking motion is elimina ted.
  • Page 12 10. Wipe down bike frame with rag moistened with solvent free spray lubricant 11. Some parts of the ICG IC2 may become loose during shipment. Check crank arms, check all exposed screws, bolts, and nuts, and make sure that they are properly tightened.

  • Page 13: How To Adjust The Indoor Cycle

    The ICG IC2 can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one approach to adjusting the ICG IC2 to ensure optimal user comfort and ideal body positioning; you may choose to adjust the ICG IC2 cycle differently.
  • Page 14 (see the dot- ted line in image below). To adjust the horizontal position of the saddle, first dismount the ICG IC2. Next, loosen the rear adjustment knob, slide the saddle forward or backward as required, and then retighten the knob.
  • Page 15 If your ICG IC2 is equipped with a regular 2 way handlebar. If the handlebar is too close to the saddle, your breathing may feel restricted; if the handlebar is too far from the saddle, you may experience back discomfort.

  • Page 16: How To Operate The Indoor Cycle

    WARNING: Risk of injury. The ICG IC2 does not have a free moving flywheel (wheel); the pedals will continue to move together with the flywheel until the flywheel stops. Reducing speed in a controlled manner is required. To stop the flywheel immediately, push down the red break knob.

  • Page 17: Preventive Maintenance

    SOLVENT- AND ACID FREE LUBRICANT. DAILY MAINTENANCE: 1. Make sure that the ICG IC2 is leveled. If the ICG IC2 rocks on your floor, turn the levelling feet underneath the front or rear stabilizer until the rocking motion is eliminated (see HOW TO MOVE THE ICG IC2 on page 13).
  • Page 18 (B). Then, slide the saddle carriage as far forward as possible and clean the top of the saddle slide. Finally, adjust the saddle to the desired position. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 19 PREVENTIVE MAINTENANCE 3. To maintain the easy adjustability of the handlebar post, the handlebar post should be cleaned and lubricated. First, turn the front adjustment knob counter clockwise and slide the handlebar post out of the frame. Apply a small amount of lubricant spray to a lint-free cloth, and clean the handlebar post (A).
  • Page 20 2 lubrication holes (B), and then wipe the excess off. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 21 PREVENTIVE MAINTENANCE 5. BELT DRIVE Important: A loose belt as well as an overtightened belt may cause injury of the rider or damage to the drive system. Checking belt tension: To check for a loose belt, sit on the saddle, place your feet on the pedals, move the pedals until the crank arms are horizontal.
  • Page 22 EXAMPLES OF MAINTENANCE PLAN CHARTS FOR IN HOUSE SERVICE TECHNICIANS: WEEKLY MAINTENANCE CHECKLIST BIKE NO. BIKE NO. PRODUCTION CODE PRODUCTION CODE OBSERVATIONS OBSERVATIONS ACTION TAKEN ACTION TAKEN RESULT RESULT NAME/DATE NAME/DATE Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 23 WARRANTY Cy-Tech GmbH warrants that all new equipment will be free of manufacturing defects in workmanship and materials, becoming effective on the date of original installation. Parts repaired or replaced under the terms of this warranty will be warrantedfor the remainder of the original warranty period only.
  • Page 24 PEDALS, INSERT SLEEVES FOR HANDLE BAR AND SADDLE POST, LEVELING FEET. 1 YEARS WARRANTY: SADDLE CONSTRUCTION THE FOLLOWING WEAR ITEMS ARE EXCLUDED FROM WARRANTY: Pedal straps, pedal binding system, water bottle holder. Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...

  • Page 25: Spare Parts

    SPARE PARTS Due to revisions, spare part order no. and specifications may be subject to change. For further information please contact your local distributor or visit www.indoorcycling.com.
  • Page 26 RUBBER GASKET 140-03-00024-01 FRONT STABILIZER 140-02-00021-01 STABILZER MOUNTING BOLT INCLUDING WASHER AND 140-01-00025-01 PEDAL STRAP SET 150-03-00048-01 PEDALS SET 150-01-00005-03 REAR STABILIZER 140-02-00020-01 SADDLE 120-01-00015-02 HANDLEBAR AND STEM 110-01-00016-01 Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
  • Page 27 CORPORATE HEADQUARTERS Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A. 847.288.3300 • FAX: 847.288.3703 • Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com AMERICAS Spain North America Life Fitness IBERIA Life Fitness, Inc. Columbia Centre III C/Frederic Mompou 5,1o1a 9525 West Bryn Mawr Avenue, Rosemont, IL 60018 U.S.A.
  • Page 28 THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY. EMAIL: INFO@INDOORCYCLING.COM WEBSITE: WWW.INDOORCYCLING.COM © 2021 Cy-Tech GmbH Manufactured by: Cy-Tech GmbH Happurger Str. 86 90482 Nuremberg Germany Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com...
