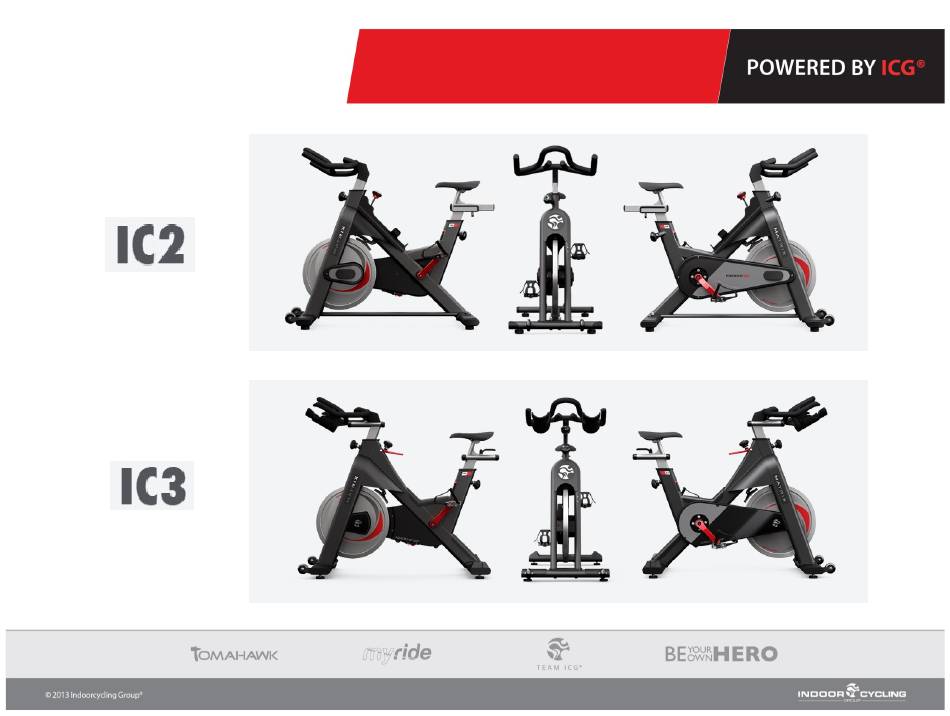

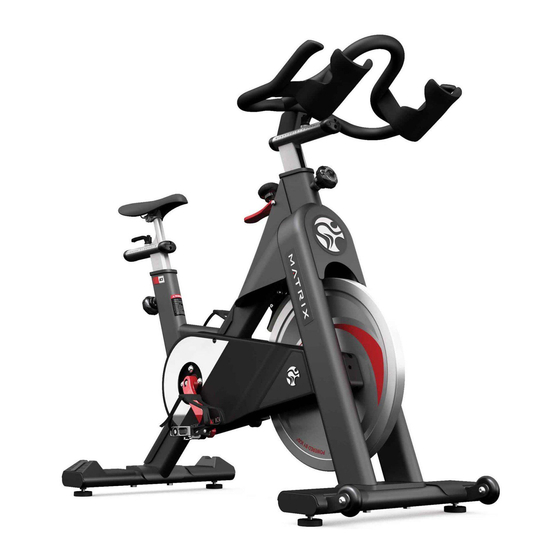

- Page 1 IC3 & IC2 Preventative Maintenance BNelson 10.2015 BNelson 10.2015...
- Page 2 Preventative Maintenance The maintenance and care procedures must be performed in the regularity to ensure maximum operating safety and lifespan. Irregularly observed maintenance and care procedures will lead to increased wear to the product. BNelson 10.2015 BNelson 10.2015...
- Page 3 Preventative Maintenance What types of maintenance are there? Daily Maintenance Weekly Maintenance Bi-Weekly Maintenance Monthly Maintenance User-Defined Maintenance These intervals are defined based on a daily use of 3 – 4 hours daily or 25 hours a week. Depending on use, the service intervals may have to be adjusted.
- Page 4 Preventative Maintenance Daily Maintenance Wipe down the bike after each use with disinfectant where the rider comes into contact with or bodily residues can be found. Seat Handlebars Shrouds/Frame BNelson 10.2015...
- Page 5 Preventative Maintenance Daily Maintenance Adjust the feet of the bike to prevent it from rocking during use. BNelson 10.2015...
- Page 6 Preventative Maintenance Daily Maintenance We suggest rubbing the complete bike down with a mild detergent such as a soap and water solution once a day. Never spray anything on the flywheel when it is in motion! Only spray detergent on a cloth and clean the bike.
- Page 7 Preventative Maintenance Weekly Maintenance Before you start the weekly cleaning of the bike, open the levers for the height adjustment of the seat and handlebar. Lift the handlebar and seat into their maximum position. BNelson 10.2015...
-
Page 8: Preventative Maintenance
Preventative Maintenance Maintenance Spray We recommend using an acid and solvent free maintenance spray such as WD-40 spray for best results when performing the weekly cleaning and lubrication of your IC2 & IC3 Indoor Cycle. BNelson 10.2015... - Page 9 Preventative Maintenance Weekly Maintenance Spray maintenance spray onto a soft cloth and clean: Frame and stabilizers Cleaning with maintenance spray will remove any residue and protect the powder coating and plastic. BNelson 10.2015...
- Page 10 Preventative Maintenance Weekly Maintenance Spray maintenance spray onto a soft cloth and clean: Stem and seat height adjustment It is very important to remove any residue from the stem and seat adjustment. The maintenance spray also lubricates the adjustments for smooth and easy extension and compression.
- Page 11 Preventative Maintenance Weekly Maintenance Spray maintenance spray onto a soft cloth and clean: Flywheel Cleaning with maintenance spray will remove residue and prevent oxidation. NEVER SPRAY MAINTENANCE SPRAY OR ANYTHING ELSE DIRECTLY ON THE FLYWHEEL! BNelson 10.2015...
- Page 12 Preventative Maintenance Weekly Maintenance Spray maintenance spray onto a soft cloth and clean: Hard to reach places BNelson 10.2015...
- Page 13 Preventative Maintenance Bi- Weekly Maintenance Emergency break test To ensure operating safety, the emergency brake must be tested to make sure it is operating properly. BNelson 10.2015...
- Page 14 Preventative Maintenance Lubricant To guarantee smooth movement of the sliders and lever mechanism, they must be lubricated with a small amount of Teflon based lubricant. We recommend using Super Lube or Tri-Flow with PTFE as it is supplied with a straw and therefore easy to apply.
- Page 15 Preventative Maintenance Bi- Weekly Maintenance Slider lubrication Push the slider into the forward position. Wipe off any residue with a clean cloth. Lubricate the following with lubricant: a) Inside the notch b) Bottom flat surface c) Top flat surface Push the slider into the opposite position and repeat equally lubricating both sides of the slider BNelson 10.2015...
- Page 16 Preventative Maintenance Bi- Weekly Maintenance Brake Pad Lubricate the entire brake pad using WD- 40. This will be sure that the bike gives many levels of resistance. How to video: https://youtu.be/ozVNxWmPCfQ BNelson 10.2015...
- Page 17 Preventative Maintenance Monthly Maintenance Bolts should be checked if they have loosened over time. Seat 25 Nm Crankshaft 60 Nm Pedals 55 Nm Levelers Hand tight The Levelers should be tested if they are easy to adjust. They should then be turned all the way back in.
- Page 18 Preventative Maintenance Monthly Maintenance SPD system Lubricate pedals with a small drop of maintenance spray. BNelson 10.2015...
- Page 19 Preventative Maintenance Monthly Maintenance Handlebar and seat post adjustment knobs Unscrew and lubricate the handlebar and seat adjustment knobs with a small amount of lubricant. BNelson 10.2015...
- Page 20 Preventative Maintenance As Needed Maintenance Horizontal Locking Levers Re-align the seat post and handlebar levers to match graphic. This will be sure that the levers are out of the users way when riding. Attention: Never use force to over-tighten the levers as they can break BNelson 10.2015...
