Summary of Contents for Pronomic PM42U MKII

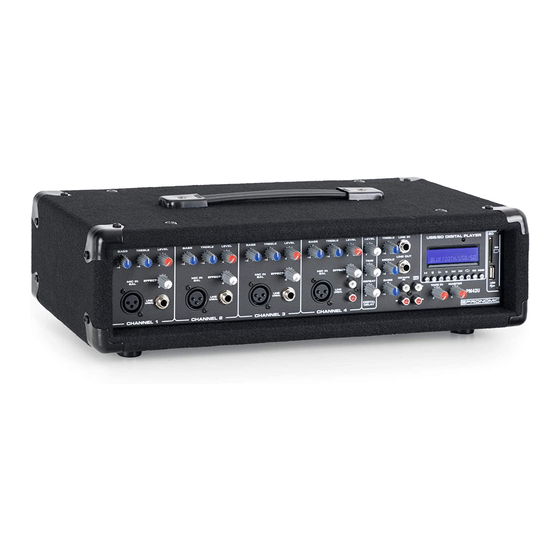

- Page 1 Pronomic PM42U MKII MP3 Power Mixer Item No.: 00067254 User manual Version: 07.2020...
-
Page 2: Table Of Contents
Description of the front view: ................5 Description of the rear view: ................. 8 Specifications ......................9 Maintenance ......................10 Cleaning ........................ 10 WEEE Declaration (Waste of Electrical and Electronic Equipment) ....10 2020-07-27 Pronomic PM42U / Item No.: 00067254... - Page 3 Other product, brand or company designations specified in this document are possibly the trademarks of their respective owners. Compliance with all applicable copyright laws is the responsibility of the user of this document. 2020-07-27 Pronomic PM42U / Item No.: 00067254...
-
Page 4: Important Safety Instructions
This symbol indicates a non-isolated, hazardous voltage within the enclosure voltage sufficient to present a risk of electric shock. o This symbol indicates important operating and maintenance instructions in the manual. Please read the manual. Pronomic PM42U / Item No.: 00067254 2020-07-27... -
Page 5: Detailed Safety Instructions
2020-07-27 Pronomic PM42U / ArtNr.: 00067254... -
Page 6: Instruction
Consult qualified service personnel for all maintenance work. Turn off the device and contact your merchant immediately if the device is damaged or malfunctioning. Pronomic PM42U / Item No.: 00067254 2020-07-27... -
Page 7: Description Of The Front View
This controller adjusts the level sent to the built-in digital delay effect control (effect portion). 7. Cinch-Line Input: Channel 4 accepts RCA connectors for stereo line level devices. You can use either the microphone input or the channel 4 RCA inputs. 2020-07-27 Pronomic PM42U / ArtNr.: 00067254... - Page 8 This is a stereo output (RCA) for connecting an external recording device. 14. CD/TAPE IN Volume Controller: This controller is used to adjust the volume of the devices which are connected to input 12. Pronomic PM42U / Item No.: 00067254 2020-07-27...
- Page 9 See the operating instructions for your device. 2. Press the “MODE” button and activate BT-function. 3. Find on your BT-device “PM42U” and make the connection. Attention: The BT distance is approx. 10 meter without any barrier. 2020-07-27 Pronomic PM42U / ArtNr.: 00067254...
-
Page 10: Description Of The Rear View
Two speakers can be connected to these jacks. Connect the two passive speakers with these outputs. Use 16Ω speakers when 4 speakers are used at the same time. If only one speaker is used, use a 4-8Ω Speaker. Pronomic PM42U / Item No.: 00067254 2020-07-27... -
Page 11: Specifications
Mixer amplifier: 20Hz-20KHz + 1dB / -3dB @ 1W Output to 8 Ohm Speaker Speaker: 60Hz-18kHz Harmonic Overall Distortion (THD) <10% at 20Hz-20KHz for an output power of 55W to a 4 ohms speaker Peak power: 2x100W RMS power: 2x50W Power Consumption 150W Power Requirement AC115V/230V, 50/60Hz 2020-07-27 Pronomic PM42U / ArtNr.: 00067254... -
Page 12: Maintenance
Please help to protect the environment in which we all live. SIMPLIFIED EU DECLARATION OF CONFORMITY Herewith Musikhaus Kirstein GmbH declares that the radio unit of Model [Pronomic PM42U MKII MP3 Powermischer] is in compliance with the EU directive 2014/53/EU. You can download the full EU declaration of conformity for this item under download link: http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_0...
