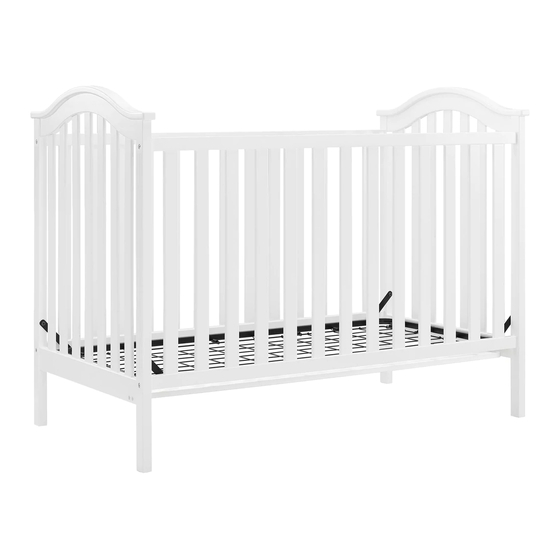

DOREL ASIA Model No: DL7884B2-W (White) DL7884B2-G (Gray) DL7884B2-E (Brown) DL7884B2-B (Black) UPC CODE: 2-IN-1 0-65857-17711-4 CONVERTIBLE CRIB 0-65857-17775-6 0-65857-17776-3 0-65857-12070-7 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON)
Page 2
CUSTOMER SERVICE You can also contact us by writing to the address listed below. Please include the product model number, color and a detailed description of your enquiry. DHP Consumer Services 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada H1G 3L1 cs@dhpfurniture.com NOTES AND INSTALLATION •...
Page 3
WARNING Crib CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 • INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). • Failure to follow these warnings and assembly instructions could result in serious injury or death. DO NOT use this crib if you cannot follow the exact accompanying instructions.
Page 4
Canada WARNING * Do not use this crib if you cannot exactly follow the instructions that come with it. * Do not use this crib for a child who can climb out of it or who is taller than 89 cm. * Do not place any cord, strap or similar item in or near this crib that could become wrapped around a child’s neck.
Page 5
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B HARDWARE LIST Ø1/4" X 13mm X 57mm Ø1/4" X 13mm X 15mm BOLT BOLT 12 PCS 16 PCS Ø1/4" X 13mm X 10mm BARREL NUT ALLEN KEY 12 PCS 1 PC...
Page 6
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B PARTS LIST LEFT SIDE PANEL RIGHT SIDE PANEL BACK PANEL 1 PC 1 PC 1 PC FRONT PANEL BOTTOM RAIL MATTRESS SUPPORT 1 PC 1 PC 1 PC...
Page 7
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B STEP 1 Insert barrel nuts (3) into the back panel (C) as shown. Attach side panels (A & B) to the back panel (C) with bolts (1) using Allen key (4).
Page 8
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B STEP 2 Insert barrel nuts (3) into the bottom rail (E) as shown below. Attach bottom rail (E) to the left side panel (A) and right side panel (B) with bolts (1).
Page 9
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B STEP 3 Attach mattress support (F) to the posts with mattress support bolts (2). Use Allen key (4) to tighten the mattress support bolts (2). CORRECT CORRECT "THIS SIDE UP" label...
Page 10
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B STEP 4 Insert barrel nuts (3) into front panel (D) as shown. Attach front panel (D) to the side panels (A & B) with bolts (1). Use Allen key (4) to tighten the bolts (1).
Page 11
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B WARNINGS: * CAUTION- ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). * The day bed is not intended for children under 15 months of age or over 50 lbs (22.7 kgs).
Page 12
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
Page 13
DOREL ASIA No de Modelo: DL7884B2-W (Blanco) DL7884B2-G (Gris) DL7884B2-E (Marrón) DL7884B2-B (Black) CODIGO UPC: 0-65857-17711-4 CUNA CONVERTIBLE 0-65857-17775-6 2-IN-1 0-65857-17776-3 0-65857-12070-7 NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE. POR FAVOR LÉALO Y CONSÉRVELO PARA REFERENCIA FUTURA.
Page 14
SERVICIO AL CLIENTE También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del producto, el color y una descripción detallada de su pregunta. DHP Consumer Services 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada, H1G 3L1 NOTAS E INSTALACIÓN...
Page 15
ADVERTENCIA Cuna PRECAUCIÓN : LOS COLCHONES PARA ESTA CUNA DEBEN TENER AL MENOS • 27-1/4 PULG.(69 POR 51-5/8 PULG. (131 CM) CON UN ESPESOR QUE NO EXCEDA 6 PULG. (15 CM). La inobservancia de las advertencias e instrucciones podría causar lesiones graves o la muerte. NO use esta cuna •...
Page 16
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B LISTA DE TORNILLOS Y ACCESORIOS Ø1/4" X 13mm X 57mm Ø1/4" X 13mm X 15mm PERNO PERNO 12 PZS 16 PZS Ø1/4" X 13mm X 10mm TUERCAS BARRILETE LLAVE ALLEN...
Page 18
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ETAPA 1 Inserte las tuercas barrilete (3) en el panel posterior (C) tal como se muestra. Fije los paneles laterales (A y B) al panel posterior (C) con los pernos (1), utilice la llave Allen (4).
Page 19
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ETAPA 2 Inserte las tuercas barrilete (3) en el larguero inferior (E) tal como se muestra a continuación. Fije el larguero inferior (E) al panel lateral izquierdo (A) y al panel lateral derecho (B) con los pernos (1).
Page 20
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ETAPA 3 Fije el soporte del colchón (F) a los postes con pernos de soporte del colchón (2). Utilice la llave Allen (4) para apretar los pernos de soporte del colchón (2).
Page 21
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ETAPA 4 Inserte las tuercas (3) en el panel frontal (D) tal como se muestra. Fije el panel frontal (D) a los paneles laterales (A y B) con los pernos (1). Utilice la llave Allen (4) para apretar los tornillos (1).
Page 22
CUNA CONVERTIBLE 2-IN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ADVERTENCIAS: TODO COLCHÓN UTILIZADO CON ESTA CUNA DEBE MEDIR POR LO MENOS 27-1/4 PULGADAS POR 51-5/8 (69CM POR 131CM) CON UN ESPESOR QUE NO EXCEDA LAS 6 PULGADAS (15CM). La cama para niños pequeños o cama de día no está diseñada para niños menores de 15 meses o que pesen más de 50 lbs (22.7 kg).
Page 23
2-IN-1 CONVERTIBLE CRIB DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B PRECAUCIÓN: Esta unidad está diseñada para ser utilizada únicamente con los productos y/o pesos máximos indicados. Su uso con otros productos y/o productos más pesados que los pesos máximos indicados puede provocar inestabilidad o causar lesiones.
Page 24
DOREL ASIA No de Modèle: DL7884B2-W (Blanc) DL7884B2-G (Gris) DL7884B2-E (Bruno) DL7884B2-B (Black) CODE CUP: BERCEAU 0-65857-17711-4 0-65857-17775-6 CONVERTIBLE 2-EN-1 0-65857-17776-3 0-65857-12070-7 NOTE: CE MANUEL D'INSTRUCTIONS CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. S.V.P. LIRE ET CONSERVER POUR RÉFÉRENCES ULTÉRIEURES.
Page 25
SERVICE À LA CLIENTÈLE Vous pouvez également nous contacter en écrivant à l'adresse ci-dessous. S'il vous plaît inclure le numéro de modèle du produit, la couleur et une description détaillée de votre demande. DHP Consumer Services 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Québec Canada, H1G 3L1 NOTES ET INSTALLATION...
Page 26
AVERTISSEMENT Lit de bébé ATTENTION: TOUT MATELAS UTILISÉ DANS CE LIT D'ENFANT DOIT MESURER AU MOINS • 69 CM PAR 131 CM (27-1/4 PO X 51-5/8 PO) AVEC UNE ÉPAISSEUR NE DÉPASSANT PAS LES 15 CM (6 PO.). • Le non-respect de ces avertissements et des instructions d'assemblage peut provoquer des blessures graves ou entraîner la mort.
Page 27
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B LISTE DE QUINCAILLERIE Ø1/4" X 13mm X 57mm Ø1/4" X 13mm X 15mm BOULON BOULON 12 PCES 16 PCES Ø1/4" X 13mm X 10mm ÉCROU CYLINDRIQUE CLÉ ALLEN 12 PCES...
Page 28
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B LISTE DE PIÈCES PANNEAU CÔTÉ GAUCHE PANNEAU CÔTÉ DROIT PANNEAU ARRIÈRE 1 PCE 1 PCE 1 PCE PANNEAU AVANT BARRE INFÉRIEURE SUPPORT DU MATELAS 1 PCE 1 PCE 1 PCE...
Page 29
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ÉTAPE 1 Insérez les écrous cylindriques (3) dans le panneau arrière (C) tel qu'illustré. Fixez les panneaux latéraux (A et B) au panneau arrière (C) avec des boulons (1) à l'aide de la clé...
Page 30
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ÉTAPE 2 Insérez les écrous (3) dans le barre inférieur (E) tel qu'illustré ci-dessous. Fixez le barre inférieur (E) sur le panneau latéral gauche (A) et le panneau latéral droit (B) avec des boulons (1).
Page 31
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ÉTAPE 3 Attachez le support du matelas (F) aux postes avec des boulons pour le support du matelas (2). Servez-vous de la clé Allen (4) pour serrer les supports du matelas (2).
Page 32
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ÉTAPE 4 Insérez les écrous (3) dans le panneau avant (D) tel q'illustré. Fixez le panneau avant (D) aux panneaux latéraux (A et B) avec des boulons (1). Utilisez la clé...
Page 33
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B AVERTISSEMENTS: Tout matelas utilisé avec ce berceau doit avoir une superficie d’au moins 27-1/4 pouces par 51-5/8 pouces (69 cm par 131 cm) et une épaisseur n'excédant pas 6 pouces (15 cm).
Page 34
BERCEAU CONVERTIBLE 2-EN-1 DL7884B2-W / DL7884B2-G / DL7884B2-E / DL7884B2-B ATTENTION: Cette unité est destinée à être utilisé uniquement avec les produits et/ou les poids maximum indiqués. L'utilisation avec d'autres produits et/ou des produits plus lourds que les poids maximum indiqués peut entraîner une instabilité ou causer des blessures.
