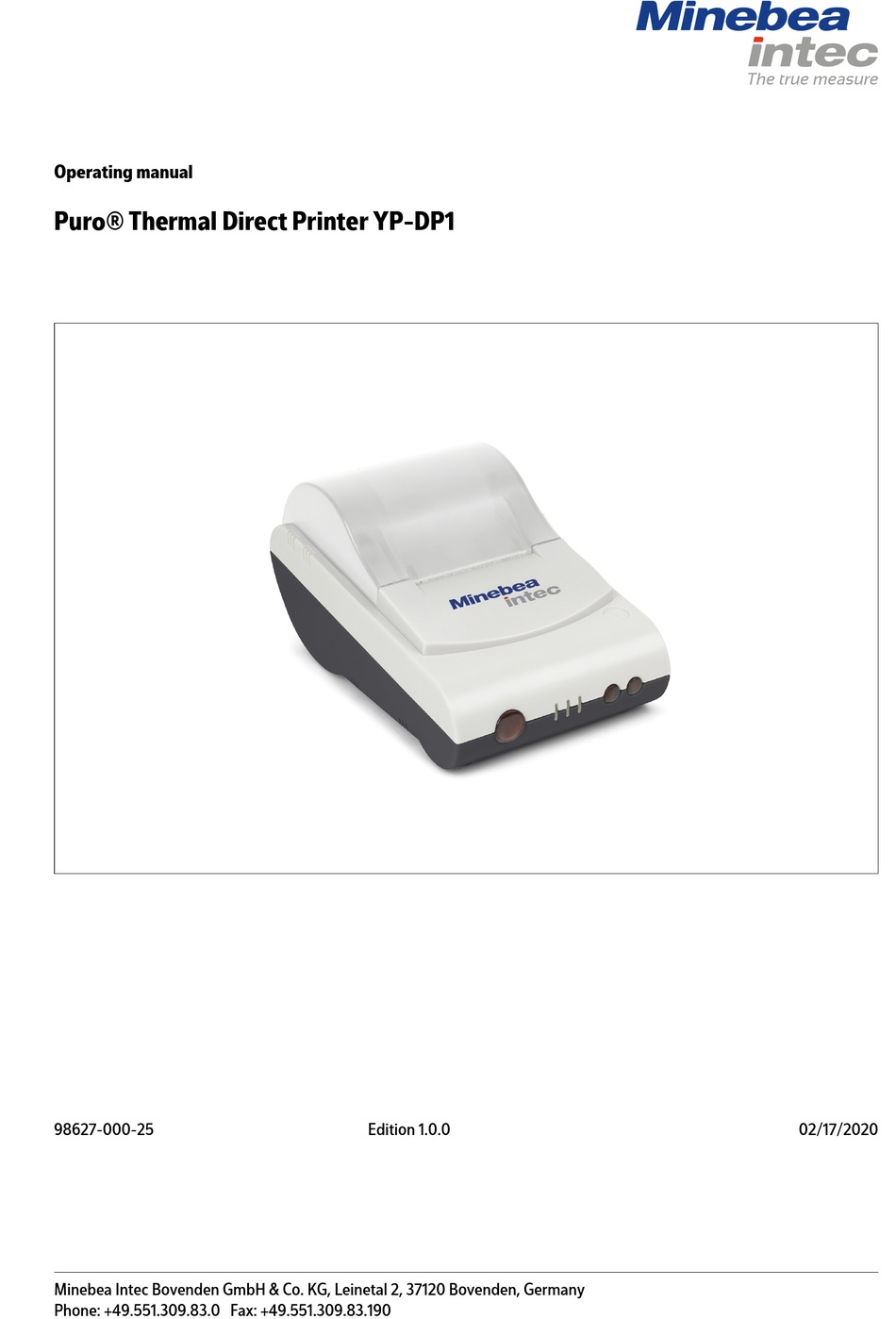

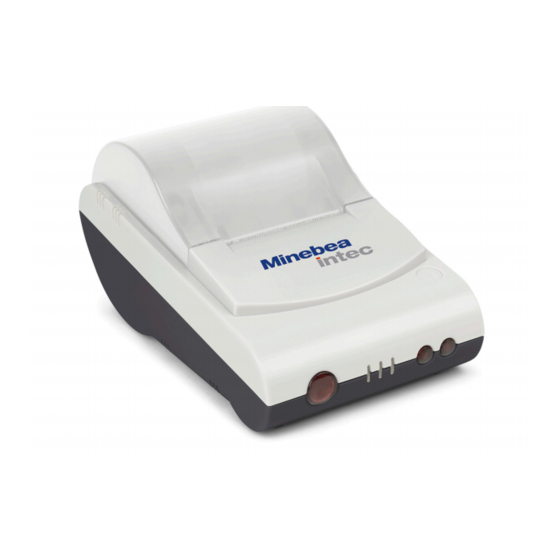

- Page 1 Operating manual Puro® Thermal Direct Printer YP-DP1 98627-000-25 Edition 1.0.0 02/17/2020 Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany Phone: +49.551.309.83.0 Fax: +49.551.309.83.190...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Operation specification ............................. 5 Self test..................................5 Dimensions ............................7 Paper Size ..................................7 Installation............................8 Connection............................9 Power supply................................9 Data interface................................9 Specifications ............................ 10 Equipment supplied..............................10 Technical data ................................10 Replacing paper roll..........................11 Disposal ..............................12 Minebea Intec EN-1... -
Page 4: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. EN-2 Minebea Intec... - Page 5 Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Minebea Intec EN-3...
-
Page 6: Safety Instructions
The shipment must be checked for completeness. A visual inspection must be performed to determine if the shipment has been damaged. If there are grounds for a complaint, this must be brought to the attention of the delivery company immediately. A Minebea Intec sales or service point must be informed. -
Page 7: Setup Instructions
When the printer is offline, press the LF button, and the printer will feed paper. Self test Turn on the printer, press the SEL button to make printer offline (when use new dot matrix printing and thermal printing model, no need to Minebea Intec EN-5... - Page 8 3 Setup instructions refer this step), press the LF button, and don’t release, then press the SEL button, and then release the both two buttons at the same time, and then the printer will print out the self-check scrip. EN-6 Minebea Intec...
-
Page 9: Dimensions
4 Dimensions Puro® Thermal Direct Printer YP-DP1 4 Dimensions Paper Size Paper Type Thickness Width Diameter Thermal Paper 0.06-0.08 mm 57±0.5 mm max. 50 mm Minebea Intec EN-7... -
Page 10: Installation
Puro® Thermal Direct Printer YP-DP1 5 Installation Installation Drill two mounting holes in the desired position at a distance of 93.5 mm. 2. Fix two screws on the equipment. 3. Hang the printer on the equipment. EN-8 Minebea Intec... -
Page 11: Connection
Warning of hazardous area and/or personal injury Incorrect supply voltage. It is essential that the power supply provided is used under all circumstances. Power connector (1) Data interface Interface connector (2) Use the supplied connecting cable YP-CAS1. Minebea Intec EN-9... -
Page 12: Specifications
Chinese character library GB2312, 16x16 dots, or 24x24 dots Paper supplied 57 mm wide, 50 mm Ø Interface RS232 Input power Operating temperature (°C) 5...50 Storage temperature (°C) -20...60 Operating humidity (%) 10...80 Storage humidity (%) 10...90 EN-10 Minebea Intec... -
Page 13: Replacing Paper Roll
3. Power the printer on, press SEL button, make SEL indicator light off, then press LF button, make the print head to run, and the paper will come out, according to Fig. 3. 4. Press SEL button again or turn off the power. 5. Close the paper cover, according to Fig. 4. Minebea Intec EN-11... -
Page 14: Disposal
Before disposing of or scrapping the product, any batteries should be removed and taken to a suitable collection point. Please see our T&Cs for further information. We reserve the right not to accept products that are contaminated with hazardous substances (ABC contamination) for repair. EN-12 Minebea Intec... - Page 15 Published by Minebea Intec Bovenden GmbH & Co. KG | Leinetal 2 | 37120 Bovenden, Germany Phone: +49.551.309.83.0 | Email: info@minebea-intec.com www.minebea-intec.com...
