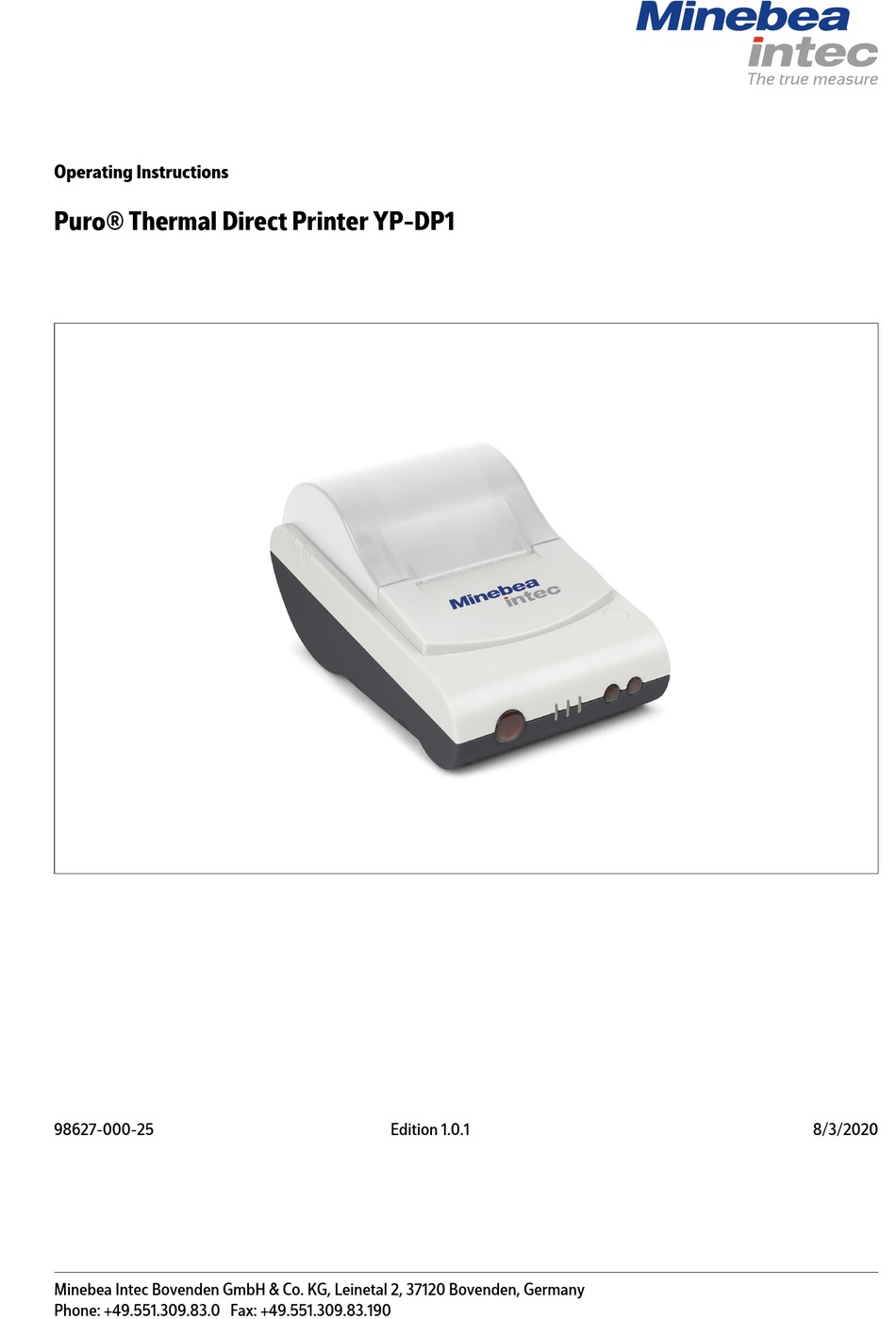

- Page 1 Operating Instructions Puro® Thermal Direct Printer YP-DP1 98627-000-25 Edition 1.0.1 8/3/2020 Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany Phone: +49.551.309.83.0 Fax: +49.551.309.83.190...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Suspend printer ................................8 Operating ............................9 Connecting and switching on the device........................ 9 Self-test..................................9 Menu..................................... 9 Changing the paper roll............................. 9 Waste disposal policy .......................... 11 Specification ............................12 Equipment supplied..............................12 Technical data ................................12 Appendix ............................13 FCC notice ...................................13 Minebea Intec EN-1... -
Page 4: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. EN-2 Minebea Intec... - Page 5 Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Minebea Intec EN-3...
-
Page 6: Safety Instructions
Check the contents of the consignment for integrity. Check the contents visually to determine whether any damage has occurred during transport. If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. A Minebea Intec sales or service organization must also be notified. -
Page 7: Device Description
3 Device description Puro® Thermal Direct Printer YP-DP1 Device description Overview Paper compartment cover Frame SEL key LF key Paper compartment Printhead Display light Reserve compartment Interface connection RS-232 Power connection ON/OFF switch Minebea Intec EN-5... -
Page 8: Dimensions
Puro® Thermal Direct Printer YP-DP1 3 Device description Dimensions 3.2.1 Paper format Paper type Thickness Width Diameter Thermal paper 0.06–0.08 mm 57±0.5 mm Max. 50 mm EN-6 Minebea Intec... -
Page 9: Device Installation
Electrical supply (1) Power connection WARNING Warning of property damage and/or personal injury due to incorrect supply voltage. The supplied power supply unit must be used without fail. Data interface (2) Interface connection Use supplied connecting cable YP-CAS1. Minebea Intec EN-7... -
Page 10: Suspend Printer
Puro® Thermal Direct Printer YP-DP1 4 Device installation Suspend printer Drill two mounting holes spaced 93.5 mm apart in the desired position. 2. Screw in two screws. 3. Suspend the printer. EN-8 Minebea Intec... -
Page 11: Operating
This can now be changed using the LF key. Use the SEL key to save the current printed selection and switch to the next menu item. Changing the paper roll CAUTION Warning of personal injury. The printhead may be hot! Leave the printhead to cool before changing the paper roll. Minebea Intec EN-9... - Page 12 3. Switch on the printer using the switch in the paper compartment (see Fig. 3). 4. Close the cover of the paper compartment (see Fig. 4). The green light illuminates permanently and the printer is ready for use. EN-10 Minebea Intec...
-
Page 13: Waste Disposal Policy
Before disposing of or scrapping the product, any batteries should be removed and taken to a suitable collection point. Please see our T&Cs for further information. We reserve the right not to accept products that have been contaminated with hazardous substances (ABC contamination) for repair. Minebea Intec EN-11... -
Page 14: Specification
6X8 points, 8x16 points, or 12x24 points Chinese character library GB2312, 16x16 points, or 24x24 points Supplied paper 57 mm wide, 50 mm diameter Interface RS-232 Operating temperature (°C) 5...50 Storage temperature (°C) -20...60 Operating humidity (%) 10...80 Storage humidity (%) 10...90 EN-12 Minebea Intec... -
Page 15: Appendix
Realignment or repositioning of the reception antenna Increasing the distance between the device and the receiver Connecting the device and the receiver to separate electric circuits Call in the dealer or an experienced radio/television technician Minebea Intec EN-13... - Page 16 Published by Minebea Intec Bovenden GmbH & Co. KG | Leinetal 2 | 37120 Bovenden, Germany Phone: +49.551.309.83.0 | Email: info@minebea-intec.com www.minebea-intec.com...
