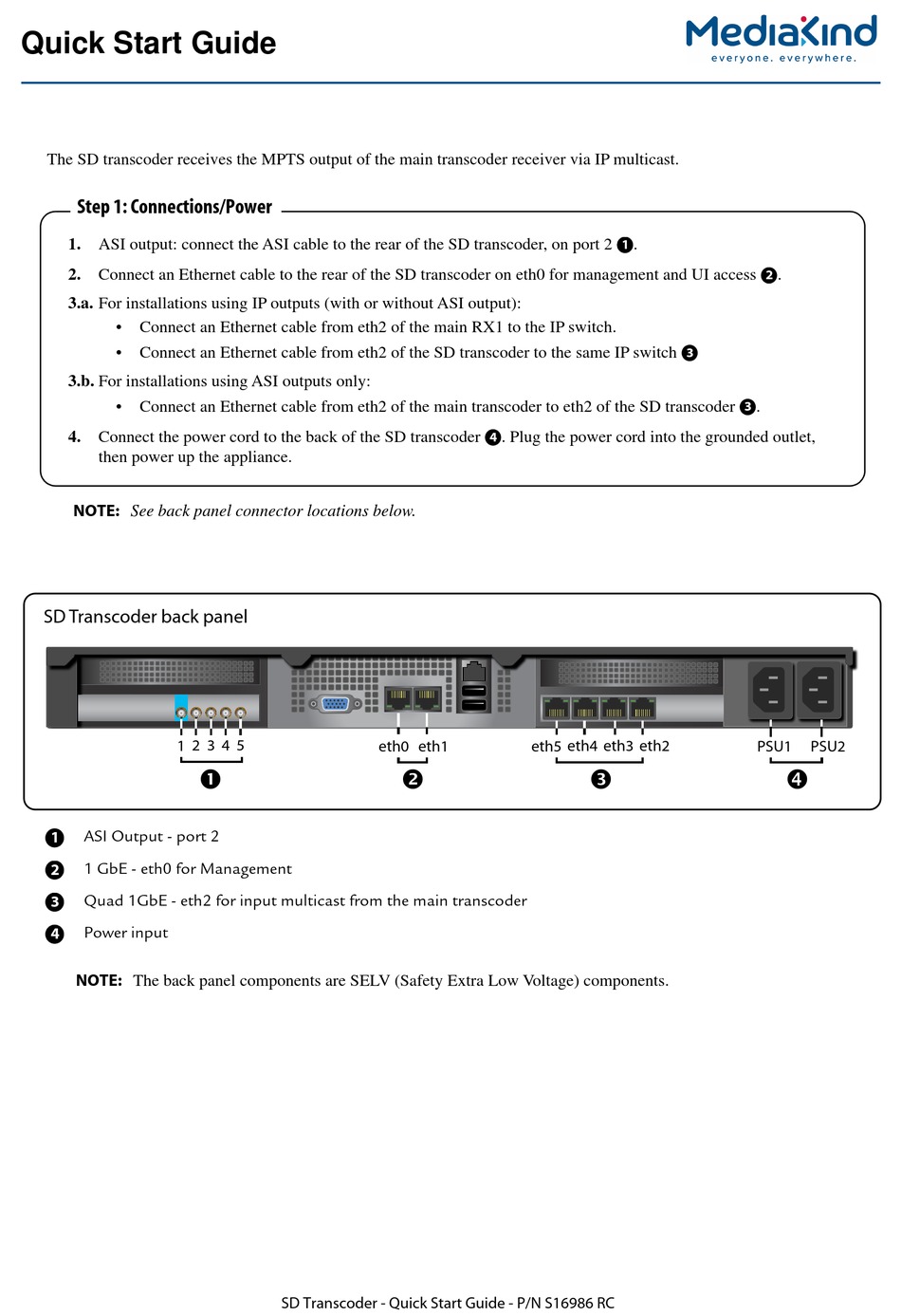

Quick Start Guide
The SD transcoder receives the MPTS output of the main transcoder receiver via IP multicast.

Step 1: Connections/Power

1. ASI output: connect the ASI cable to the rear of the SD transcoder, on port 2
2. Connect an Ethernet cable to the rear of the SD transcoder on eth0 for management and UI access
3.a. For installations using IP outputs (with or without ASI output):
• Connect an Ethernet cable from eth2 of the main RX1 to the IP switch.
• Connect an Ethernet cable from eth2 of the SD transcoder to the same IP switch
3.b. For installations using ASI outputs only:
• Connect an Ethernet cable from eth2 of the main transcoder to eth2 of the SD transcoder
4. Connect the power cord to the back of the SD transcoder
then power up the appliance.
NOTE: See back panel connector locations below.
SD Transcoder back panel

1 Gbe (default: Eth 0 for management, Eth1 for input/output
1 2 3 4 5
ASI Output - port 2
1
1 GbE - eth0 for Management
2
Quad 1GbE - eth2 for input multicast from the main transcoder
3
Power input
4
NOTE: The back panel components are SELV (Safety Extra Low Voltage) components.
Eth0 Eth1

SD Transcoder - Quick Start Guide - P/N S16986 RC
. Plug the power cord into the grounded outlet,
4
PSU1 PSU2
eth0 eth1 eth5 eth4 eth3 eth2

.
1
3
.
3
PSU1

.
2
PSU2

