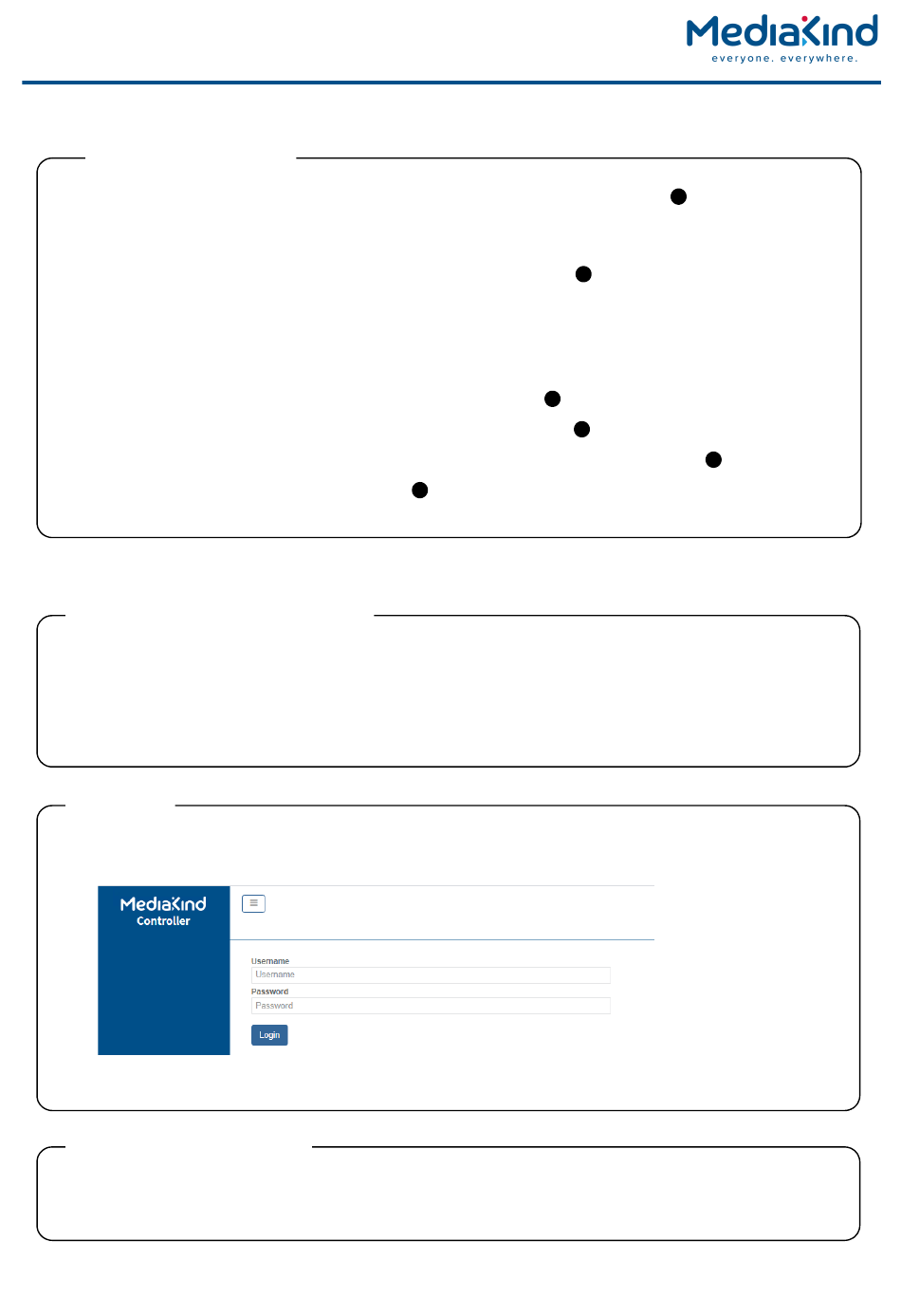

Quick Start Guide
Step 1: Connections/Power
1.
Insert the 2 CAMs into the required slots in the common interface module of the unit
CAUTION: The CAMs are labeled with the matching serial number of the unit,
DO NOT mix CAMs between units.
2.
Quad Satellite input: connect the F-Type cable(s) to the rear of the unit
•
Input 1: Feed for G15 (Vertical)
•
Input 2: Feed for G17 (Vertical)
•
Input 3: Feed for G15 (Horizontal)
•
Input 4: Feed for G17 (Horizontal)
3.
ASI output: connect the ASI cable to the rear of the unit, on port 2
4.
Management: connect the Ethernet cable to the rear of the unit on eth0
5.
Quad 1 GbE output: connect the Ethernet cable(s) to the rear of the unit, (by default, eth2)
6.
Connect the power cord to the back of the unit
up the unit.
NOTE: See back panel connector locations on page 4.
Step 2: Configure the network interfaces
The Ethernet interfaces can be configured using the LCD panel:
Navigate to Network using the UP, DOWN, LEFT and RIGHT buttons.
1.
2.
Select Eth0 and use the UP, DOWN, LEFT and RIGHT buttons to adjust the value.
3.
Press ENTER to apply the new value.
Step 3: Login
1.
Launch a web browser:
HTTP://{IP-Address}
2.
Enter the username FoxReceivers and password Change2YourSite.
Step 4: Get the receiver entitled
1.
Record the receiver serial number starting with 4E as printed on the back of the unit.
2.
Call Fox on 1-888-882-5295
where {IP-Address} is that set in Step 2.
RX1 - Quick Start Guide - P/N S16955 RC
