Rugged Radios MT-KRX-MM Installation Manual

MT-KRX-MM
INSTALLATION GUIDE

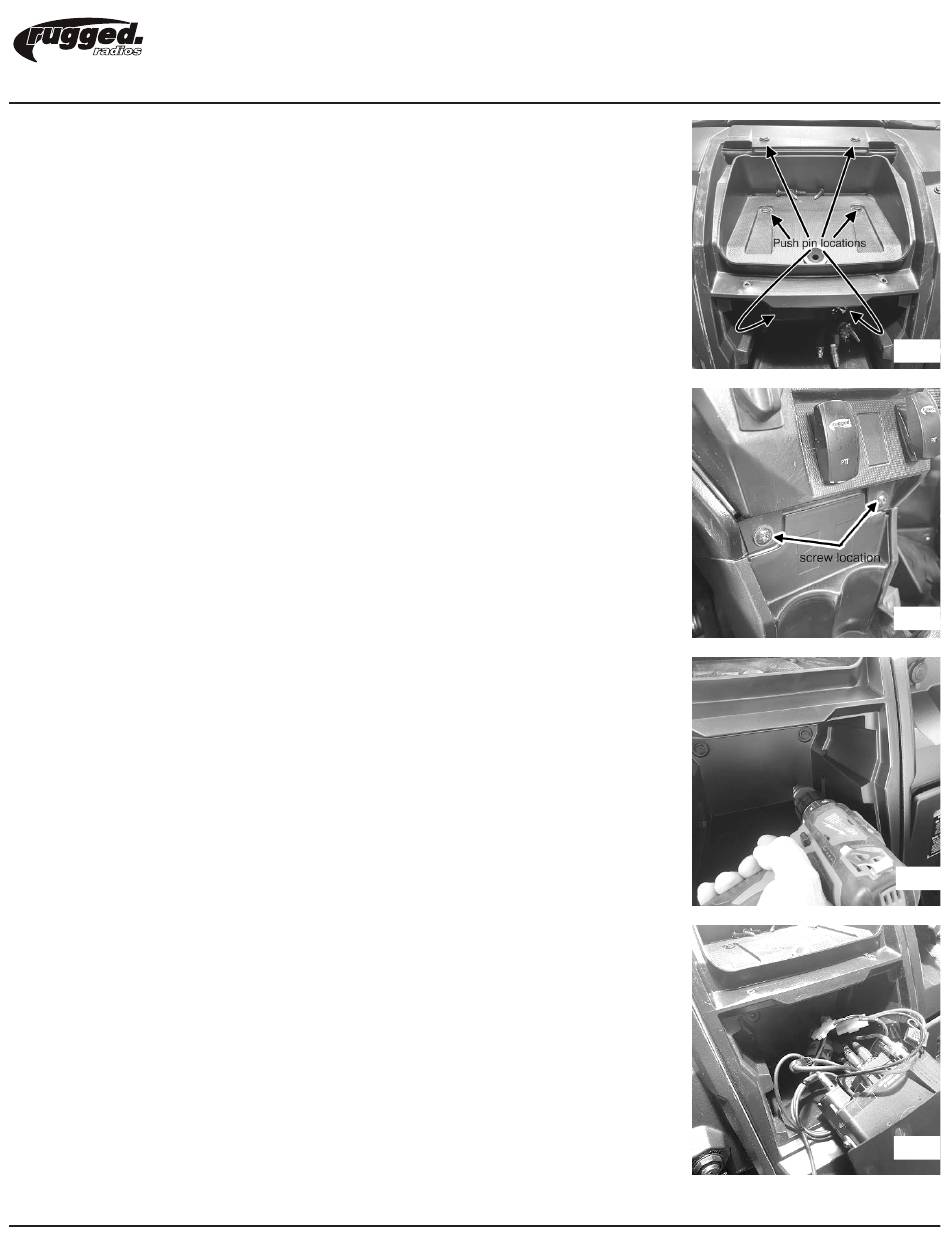

1. Remove the upper part of the center dash by removing the six
push pins (DIAGRAM 1).
2. Remove the two screws at the bottom of the dash (DIAGRAM
2). Once pins and screws are removed, the dash unit pulls
out exposing the back side where you will run your radio and
intercom cables.
3. Drill a 1" hole in the lower right corner of the center dash cubby
to allow the cables to run through. (DIAGRAM 3)
4. Run all radio and intercom cables in KRX using the Installation
Tech Guide that came with the intercom and two-way radio.
www.ruggedradios.com/PDF/Installation-Tech-Guide.pdf
It's important to follow the guidelines in the Tech Guide above in order
to route your cables and power your equipment correctly for the best
performance of your communications.
5. Pull the radio and intercom cables through the 1" hole.
(DIAGRAM 4) Be sure to leave enough extra cable to allow you to
plug them into the radio and intercom (service loop) before you
put the mount in place. Reinstall the upper center dash with the 6
push pins and two screws.
MT-KRX-MM INSTALLATION GUIDE | VERSION 1.0.0 | JUNE 2021
