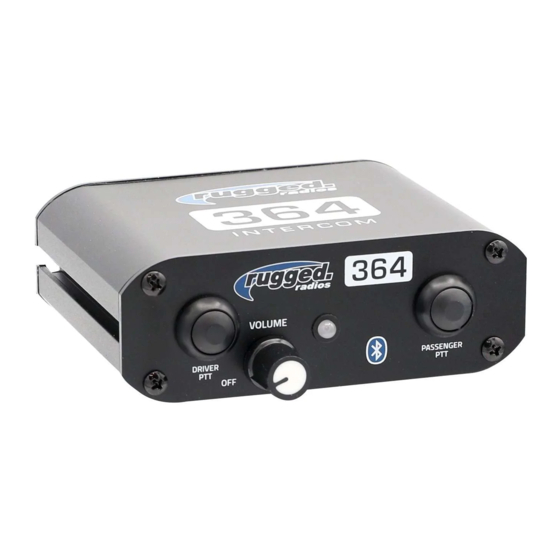

1. DRIVER PTT Used by driver for transmitting over 2-Way Radio.
2. VOLUME Controls volume and power for in-car audio. 2-way radio and music audio are controlled
by the individual sources.
3. LED Green indicates power is on. Red indicates transmitting.
4. BLUETOOTH Pairing mode is active when power is on.
5. PASSENGER PTT Used by passenger for transmitting over 2-Way Radio.
Intercom Operation
POWER ON/OFF the intercom by rotating the volume knob clockwise/counterclockwise.
MUSIC/AUDIO input via bluetooth connection.
Bluetooth Pairing for Music
Start with the intercom powered o and the bluetooth function of your phone or device powered o .
1. Turn on the intercom.
2. Turn on the phone or device's bluetooth.
3. Wait for "RRP364" to be displayed on the device.
4. Select "RRP364" and wait for the device to pair to the intercom.
5. If pairing is not successful, restart the process.
2-Way Radio Use
Received audio is controlled by your radio's volume control, not the intercom volume control. The
Push-To-Talk (PTT) Button is used for transmitting over a 2-way radio connected to your intercom. To
transmit, press and hold the PTT button, speak, and release when finished.
Pro Tip:
- When transmitting, the LED on both the intercom and radio will illuminate red.
Rugged Radios
RRP364-BT
USER MANUAL
1
2
|
www.ruggedradios.com
3
4
5
|
888-541-7223
Advertisement
Table of Contents
Related Manuals for Rugged Radios RRP364-BT
Summary of Contents for Rugged Radios RRP364-BT
- Page 1 RRP364-BT USER MANUAL 1. DRIVER PTT Used by driver for transmitting over 2-Way Radio. 2. VOLUME Controls volume and power for in-car audio. 2-way radio and music audio are controlled by the individual sources. 3. LED Green indicates power is on. Red indicates transmitting.
- Page 2 RRP364-BT INSTALLATION GUIDE UHF-1 VHF-D17 2 VHF DIGITAL ANTENNA DRIVER COIL CORD PTT If using optional Audio Filter, connect radio and intercom power leads directly AUDIO FILTER to Audio Filter and NOT to the battery. This is a universal wiring diagram. Your exact configuration might vary depending on the system purchased.
