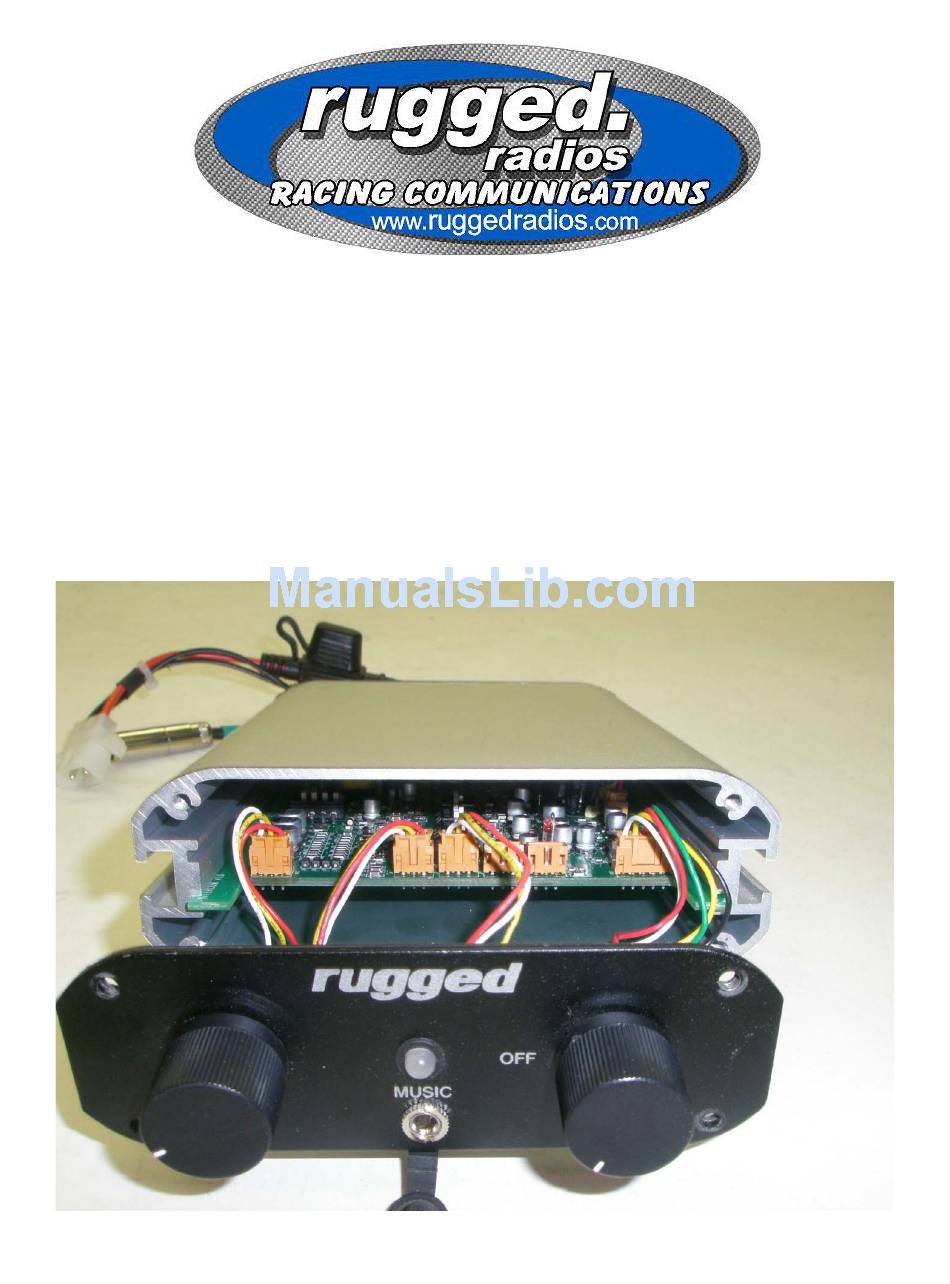

- Page 1 Rugged Race Products RRP600 Intercom Remote Head Installation Instructions 1) Remove 4 screws from front faceplate of RRP600 Intercom. Pull back faceplate to expose leads connected to circuit board.
- Page 2 2) Unplug the 4 separate leads from the circuit board and store in a safe place. Connect new remote head as shown:...
- Page 3 3) Reinstall 4 faceplate screws, connect red and green remote head extension leads to their respective ports on new intercom faceplate: 4) Mount remote mount head and enjoy! Any questions or problems please call Rugged Race Products, 1-888-541-RACE...
