Summary of Contents for Eco Stage LM1915

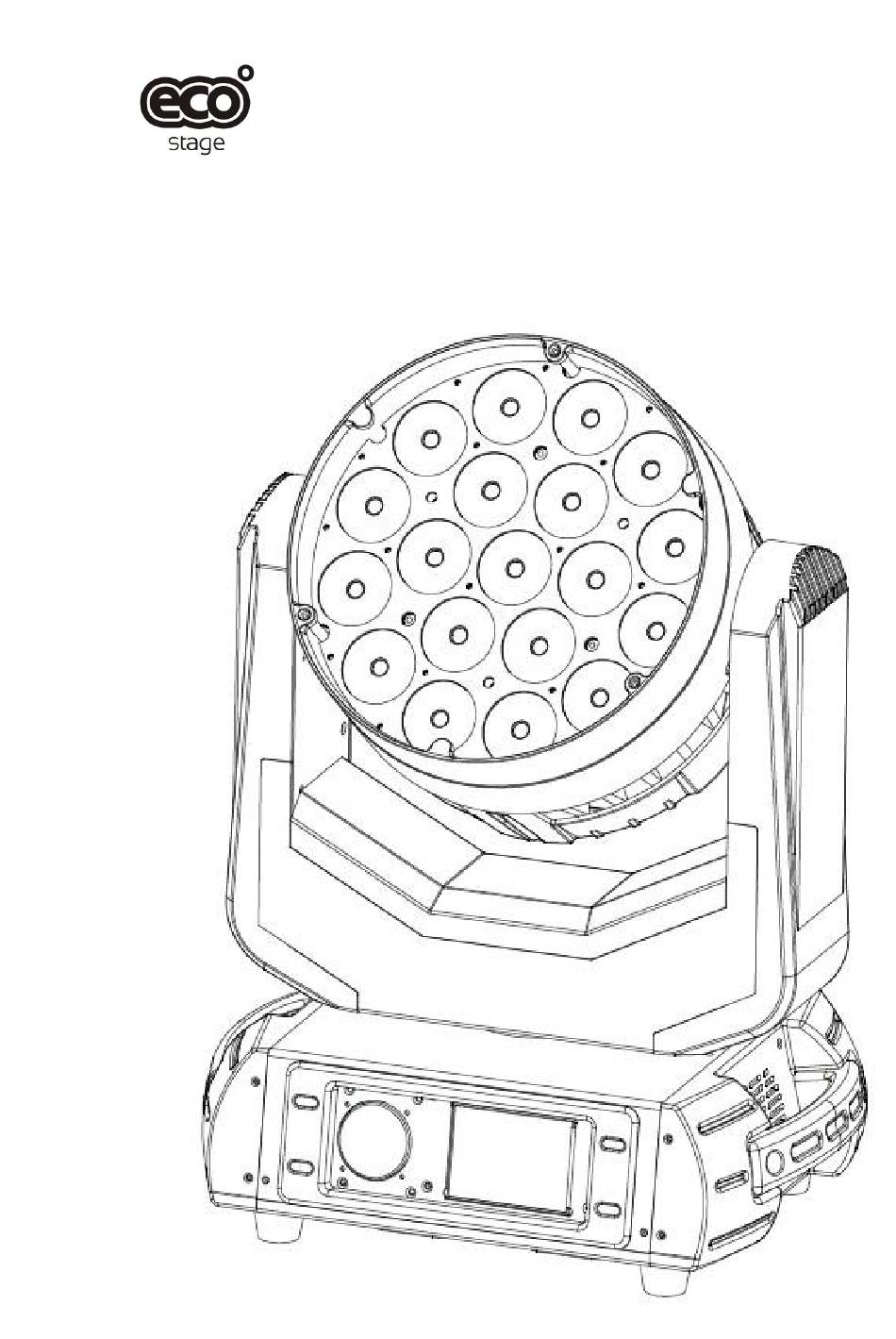

- Page 1 Wash 19x15 Content...
-
Page 2: Table Of Contents
Content........................02 1.Product Introduce ....................04 2.Fixture Size......................04 3.Parts Introduce....................05 4.Safety Information....................05 ...06 4.1 Anti-high temperature....................06 4.2 To prevent falling wounding………………………………………………………… 4.3 UA protection………………………………………………………………………….. 4.4 Prevention of electric shock……………………………………………………………. 4.5 To prevent burning or fire……………………………………………………………… 5.Packing and Shipping ..................06 5.1 Attachment ........................5.2 About Device Package.................... - Page 3 About the latest software, hardware, documents and other information, please log in our company website. 1. Production Introduce Thank you for choose this LM1915 products, this model is the newest led moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth R & D,...
-
Page 4: Fixture Size
This LM1915 Led light, use 19pcs high brightness 15w RGBW 4 IN 1 LED source, By careful arrangement and design, make the R,G, B,W mixing evenly and colour is pure. Through the built-in microprocessor control, Use the high precision of constant current control mode, the R.G.B.W. -
Page 5: Safety Information
Head Cover Focus lens Lens component Component casting aluminum radiator Board Head Horizontal Back Cover Cover Shell Control Handle Wheel Base Shell Display Touch Screen Shell Touch Battery Button Screen 4. SAFETY INFORMATION Safety Warning: This product is only suitable for professional use, and does not apply to security for other purposes. - Page 6 4. The equipment can not have an obstacle at least in the range of 0.5 meters. 5. Do not replace the non-original parts. 5. Packing and Shipping 5.1 ATTACHMENT The LM1915 packed with fly-case of four in one, or carton box. Attach follow accessory. Content Quantity...
-
Page 7: Unpacking
Make sure the related experts check these installation once a year. 6.1 Rigging Installation LM1915 can put on the stage or install on the bracket in any direction, the rapid locking system can lock it on the bracket fast and easily according to the following picture 2 direction. - Page 8 6.3 EQUIPMENT CONNECT Attention! One product only can accept one input and one output. LM1915 has DMX input and output 3pin and 5pin connection socket. Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3connected to the positive polarity signal.
-
Page 9: Cable Connection
Attention! vertically up to put the fixture, the shortest safe distance between the fixtures must be≥900 mm,the installation layout diagram as shown in the picture. To prevent the reflection and interference of receiving the control signals, we must install a terminal plug at the end of each branch of 3pin or 5pin output socket. Terminal plug Ω... -
Page 10: Control Panel Operate
power supply must be comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection. ATTENTION! The equipment directly connected to the power supply, Don't connect to the silicon box color system, otherwise it will damage the equipment.Factory has equipped the standard 3 pin plug socket. - Page 11 White Balance Blue (0-100%)0-255 White Balance White (0-100%)0-255 Fast Dim Mode Slow Smal ChunMode Stan Exte RunMode Auto Musc Open SigClear Open Signal Reset Exec Rainbow Annu Return InfoSee Total Tim 00048：00 WorkHour 00000：03 Times 0000：61 ClearTim -- -- -- ClearTim -- -- - Touch Screen_Control...
-
Page 12: Technical Specification
X Reverse Open Y Reverse Open Fast XY Speed NORM Slow XY Setup 540° X Angle 360° Open XY Fback 0-255 Tilt 0-255 Focus 0-255 Return 9. Technical specification product specification: 1： Power consumption：400W 2: LED Quantity：19pcs 4 in 1 leds（RGBW） 3：... -
Page 13: Dmx Control Channel Mode
21：The maximum allowable temperature while working :40ºC. 22: IP Rate：IP20. 23：Size：337×256×352mm. 24：15.2Kg. 25: Pass CE standard and GB7000.217-2008, GB7000.1-2007 standard 26：Color：Black 10. DMX Control Channel Mode Three control models 1: Simple mode 2：Standard mode 3：Extended mode Simple Standard Extended mode DMX Value Description mode... - Page 14 95-99 Colour19: PeacockBlue 100-104 Colour20: Magenta 105-109 Colour21: DarkPink 110-114 Colour22: MiddleRose 115-119 Colour23: LightSalmon 120-124 Colour24: EnglishRose 125-129 Colour25: LightRose 130-134 Colour26: LightOrange 135-139 Colour27: Straw 140-144 Colour28: LightAmber 145-149 Colour29: DarkYellowGreen 150-159 Colour30: SkyBlue 160-169 Colour31: Lavender 170-174 Colour32: LightLavender 175-179 Colour33: PinkCarnation...
- Page 15 170-184 Pulse Strobe 185-189 Strobe ON 190-204 Random pulse Strobe Fast-Slow 205-209 Strobe ON 210-224 Orthodox Gradients Fast-Slow 225-229 Strobe ON 230-244 Pulse Fast-Slow 245-255 Strobe ON Channel12 Channel12 Channel12 0-255 Master dim Channel13 Channel13 Channel13 0-255 Master dim Fine Channel14 Channel14 Channel14...
-
Page 16: Led Position
12. Routine Maintenance Cleaning and maintenance LM1915 need do daily cleaning and maintenance, the equipment life time is greatly depends on the operating environment, please consult the technical department for professional advice, submit the repair and maintenance to the professional technician. - Page 17 warranty. Warning! Pls turn off the power supply before you open any cover. Fixture Cleaning Optical components need to be clean gently, coating surface is very fragile, it is easy to scratch, keep the acrylic plate clean, or will affect the brightness of the fixture, don't use destructive solvent, otherwise it will damage the plastic or coating.
