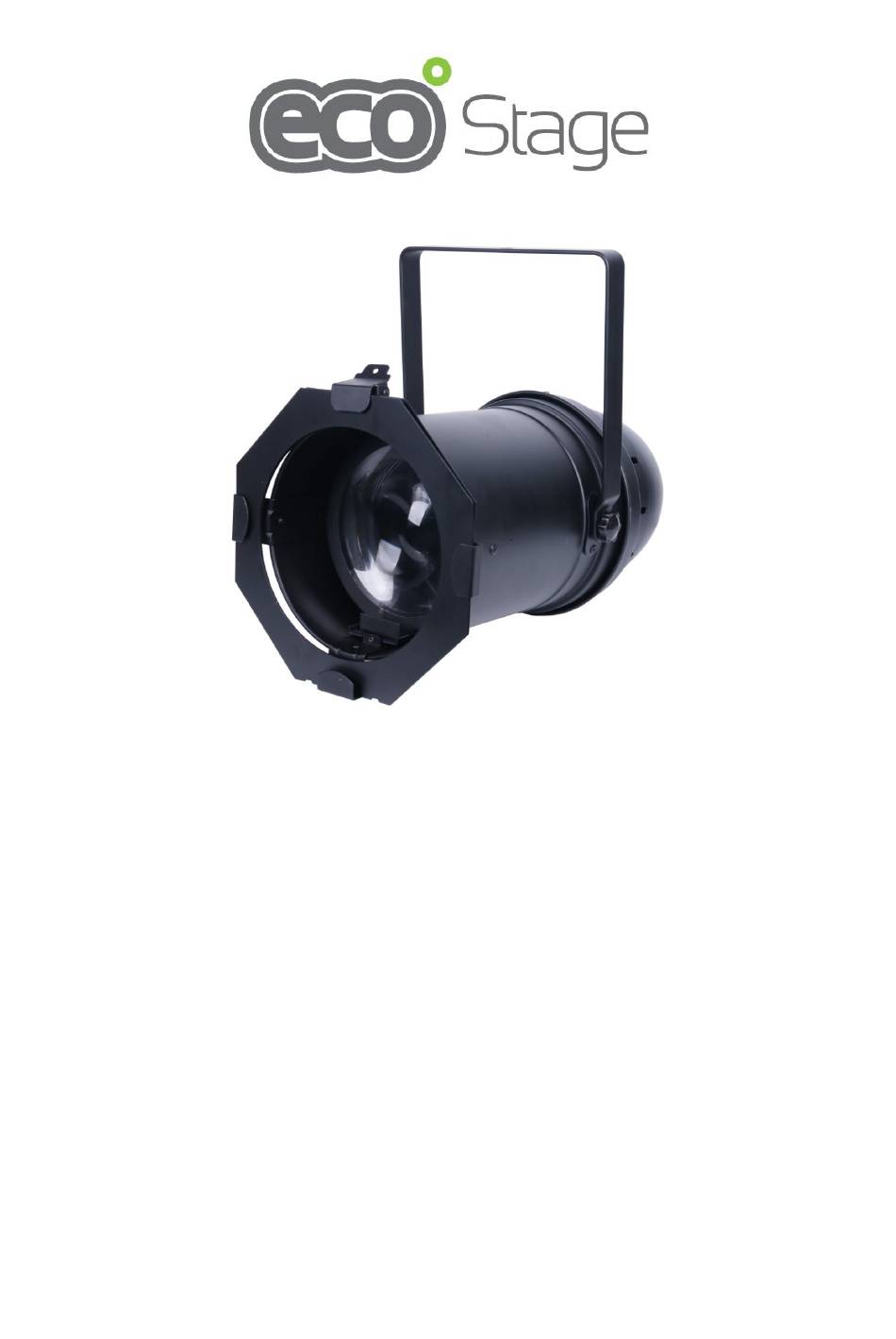

PAR LED COB WW
User Manual
Please read this manual carefully before use!
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR LED COB WW and is the answer not in the manual?

Questions and answers

Related Manuals for Eco Stage PAR LED COB WW

Summary of Contents for Eco Stage PAR LED COB WW

  • Page 1 PAR LED COB WW User Manual Please read this manual carefully before use! - 1 -...
  • Page 2 Thank you for purchasing our 100W COB WHITE LED PAR64. Please read user guide for safety and operations before using. Keep this manual for future reference. 1. Safety Instructions  Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this intruction booklet.
  • Page 3  LED Sources: 100W White COB LED  CRI: 90Ra  Color Temperature: 3000K/4000K/5700K for option.  Product Dimension: 491x275x224mm  Weight(N.W)： 3.4Kgs 3. Checking Parts Please check if the following parts are included: 1pc x 100 par 64 1pc x Power cable 1pc x User manual 4.
  • Page 4 ② LED indicator: POWER Power On DMX input present ③ Button: MENU To select the programming functions DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions ④ Main input/output: PowerCon ⑤...
  • Page 5 To select any functions, press MENU button until the required one is shown on the display. Select the fuction by ENTER button. Use DOWN and UP button to change the mode. Once the required mode has been selected, press ENTER button to setup or it will return to the main functions without any change after idling 8 seconds automatically.
  • Page 6 Sl 1 (slave) blac Lost enter hold auto d000-d255 Manu enter +/- ( manual dimmier 0-255) Press Tenp (temperature) enter 00C-90C ENTER MENU Led (set backlight） enter (Nenu) confirm (save disp (display reverse) enter and exit) Fhrs (working hours) enter total working hour Ver (software version) enter...
  • Page 7 Channel Function Value Details Dimmer 000-255 Master Dimmer 0-100% Dimmer_Fine 000-255 Fine dimmer 000-015 Strobe on Strobe （1HZ-25HZ Slow-Fast） 016-095 Strobe Strobe （1HZ Slow-Fast） 096-175 176-255 Random Strobe 8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.
