Summary of Contents for TESTO 0554 2222

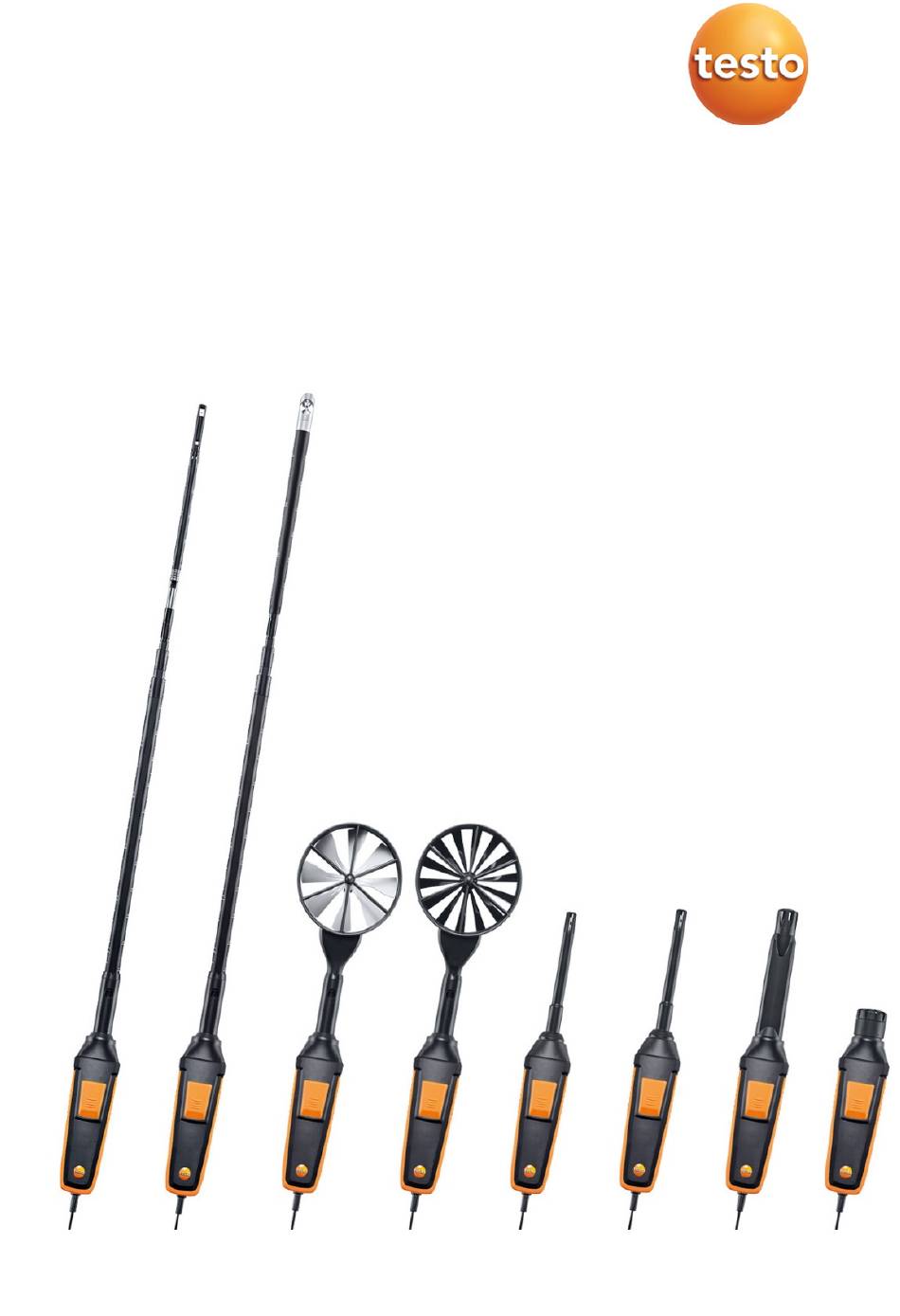

- Page 1 Latest generation testo air velocity & IAQ probes with cable handle Instruction manual...
-
Page 3: Table Of Contents
2 Safety and disposal ................5 3 System description ................6 4 Description of the instrument ............... 8 4.1 Cable handle for connecting testo 440 probe heads (0554 2222) ..8 4.2 Hot wire probe, including temperature and humidity sensor (0635 1572) ..................9 4.3 Vane probe (Ø... -
Page 5: About This Document
Only carry out maintenance and repair work on this instrument which is described in the documentation. Follow the prescribed steps exactly when doing the work. Use only original spare parts from Testo. Temperature information given on probes/sensors relates only to the measuring range of the sensor technology. -
Page 6: System Description
The graphic below shows what options the system offers. You will find detailed information about how each of the probes works along with the testo 440 measuring instrument in the corresponding chapter of the instruction manual for the measuring instrument. - Page 7 (order no. 0636 9770) 5 CO probe head 6 Handle adapter for connecting (order no. 0615 1270) testo 440 flow probes (order no. 0554 2160) 7 100 mm vane probe head (order 8 High-precision 100 mm vane no. 0635 9430)
-
Page 8: Description Of The Instrument
4.1 Cable handle for connecting testo 440 probe heads (0554 2222) Application The handle is used to connect probe heads to the testo 440 measuring instrument. Pay attention to the information on the measuring process in the detailed instruction manual for the measuring instrument. You will find this at: www.testo.com. -
Page 9: Hot Wire Probe, Including Temperature And Humidity Sensor
4 Description of the instrument 4.2 Hot wire probe, including temperature and humidity sensor (0635 1572) In conjunction with the testo 440, the hot wire probe is suitable for flow and humidity measurements in ventilation ducts. Structure 1 Probe head... -
Page 10: Vane Probe (Ø 16 Mm), Including Temperature Sensor (0635 9572)
The hot wire probe is ready to use. 4.3 Vane probe (Ø 16 mm), including temperature sensor (0635 9572) Application In conjunction with the testo 440, the vane probe (Ø 16 mm) is suitable for flow measurements in ventilation ducts. Structure 1 Probe head... - Page 11 4 Description of the instrument The testovent bracket included in the package is intended for the testovent 417 measurement funnel. Connect the vane probe (Ø 16 mm) to the handle Turn quick-release connector, viewed from the handle end, through 90° anticlockwise until it locks in place.
-
Page 12: High-Precision Vane Probe (Ø 100 Mm), Including Temperature

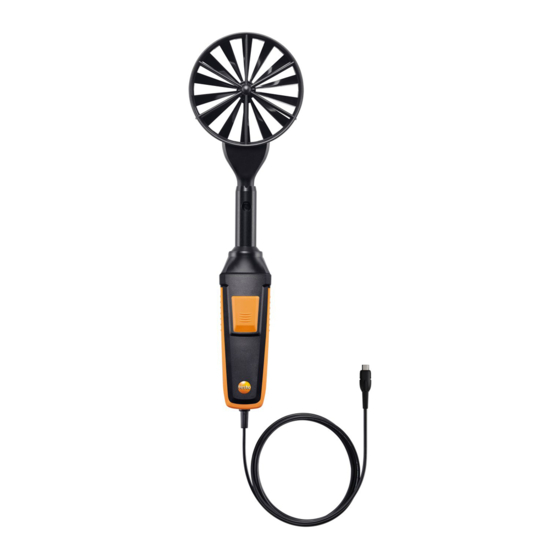

4.4 High-precision vane probe (Ø 100 mm), including temperature sensor (0635 9372) Application In conjunction with the testo 440, the high-precision vane probe (Ø 100 mm) is used for flow measurement, e.g. at ventilation outlets. Structure 1 Probe head 2 Handle adapter... -
Page 13: Vane Probe (Ø 100 Mm), Including Temperature Sensor (0635 9432)
4.5 Vane probe (Ø 100 mm), including temperature sensor (0635 9432) Application In conjunction with the testo 440, the vane probe (Ø 100 mm) is used for flow measurement, e.g. at ventilation outlets. Structure 1 Probe head 2 Handle adapter... - Page 14 4 Description of the instrument Connect vane probe (Ø 100 mm) to the handle Turn quick-release connector, viewed from the handle end, through 90° anticlockwise until it locks in place. Insert handle adapter into the handle (pay attention to coding). Turn quick-release connector back through 90°...
-
Page 15: High-Precision Temperature/Humidity Probe (0635 9772)
4 Description of the instrument 4.6 High-precision temperature/humidity probe (0635 9772) Application In conjunction with the testo 440, the high-precision temperature/humidity probe is used to measure humidity and temperature. Structure 1 Probe head 2 Quick-release connector for probe heads and adapter... -
Page 16: Temperature/Humidity Sensor (0635 9732)
4 Description of the instrument 4.7 Temperature/humidity sensor (0635 9732) Application In conjunction with the testo 440, the temperature/humidity probe is used to measure humidity and temperature. Structure 1 Probe head 2 Quick-release connector for probe heads and adapter 3 Button... -
Page 17: Co Probe, Including Temperature And Humidity Sensor (0632 1552)
4 Description of the instrument 4.8 CO probe, including temperature and humidity sensor (0632 1552) Application In conjunction with the testo 440, the CO probe is used to determine CO to measure humidity and temperature. Structure 1 Probe head 2 Quick-release connector for... -
Page 18: Co Probe (0632 1272)
90° until it locks in place. The CO probe is ready to use. 4.9 CO probe (0632 1272) Application In conjunction with the testo 440, the CO probe is used to determine the CO concentration in the environment. Structure Element Element 1 Probe head... -
Page 19: Commissioning
5 Commissioning Connect CO probe to the handle Turn quick-release connector, viewed from the handle end, through 90° anticlockwise until it locks in place. Insert probe head into the handle (pay attention to coding). Turn quick-release connector back through 90° until it locks in place. ... -
Page 20: Calibration
> 80% RH at ≤ 30°C for > 12 h > 60% RH at > 30°C for > 12 h please get in touch with Testo Service or contact us via the Testo website. Cable handle for connecting testo 440 probe heads (0554 2222) - Page 21 7 Technical data Feature Value Measuring range 0 to +50 m/s -20 to +70°C 5 to 95% RH 700 to 1100 hPa Accuracy ±(0.03 m/s + 4% of m.v.) (0 to 20 m/s) (at 22°C, ±1 digit) ±(0.5 m/s + 5% of m.v.) (20.01 to 30 m/s) ±0.8°C (-20 to 0°C) ±0.5°C (0 to +70°C) ±3 hPa...
- Page 22 7 Technical data Vane probe (Ø 16 mm), including temperature sensor (0635 9572) Feature Value Measuring range 0.6 to 50 m/s -10 to +70°C Accuracy ±(0.2 m/s + 1% of m.v.) (0.6 to 40 m/s) (at 22°C, ±1 digit) ±(0.2 m/s + 2% of m.v.) (40.1 to 50 m/s) ±1.8°C Resolution 0.1 m/s...
- Page 23 7 Technical data Vane probe (Ø 100 mm), including temperature sensor (0635 9432) Feature Value Measuring range 0.3 to 35 m/s -20 to +70°C Accuracy ±(0.1 m/s + 1.5% of m.v.) (0.3 to 20 m/s) (at 22°C, ±1 digit) ±(0.2 m/s + 1.5% of m.v.) (20.01 to 35 m/s) ±0.5°C ±0.5°C (-20 to 0°C) Resolution...
- Page 24 7 Technical data Feature Value Directives, standards and EU directive: 2014/30/EU tests Temperature/humidity probe (0636 9732) Feature Value Measuring range -20 to +70°C 0 to 100% RH Temperature accuracy ±0.5°C (at 22°C ±1 digit) Humidity accuracy ±2% RH (5 to 90% RH) (at 25°C ±1 digit) Additional uncertainty: - Long-term stability: ±1% RH / year...
- Page 25 7 Technical data Feature Value Accuracy ±3.0% RH (10 to 35% RH) (at 25°C, ±1 digit) ±2.0% RH (35 to 65% RH) ±3.0% RH (65 to 90% RH) ±5% RH (remaining range) Additional uncertainty: - Hysteresis: ±1% RH - Long-term stability: ±1% RH / year Resolution 0.1°C 0.1% RH...
-
Page 26: Accessories And Spare Parts
(including bag) Telescope extension (length 0.40 to 0.85 m) for testo 0554 0990 440 flow probes 90° angle for connecting the testo 440 vane probe (Ø 0554 0991 100 mm) Handle adapter for connecting testo 440 flow probes 0554 2160... - Page 28 Testo SE & Co. KGaA Testo-Straße 1 79853 Lenzkirch Germany Tel.: 07653 681-0 Fax: 07653 681-7699 Email: info@testo.de Internet: www.testo.de 0971 0446 en 01...
