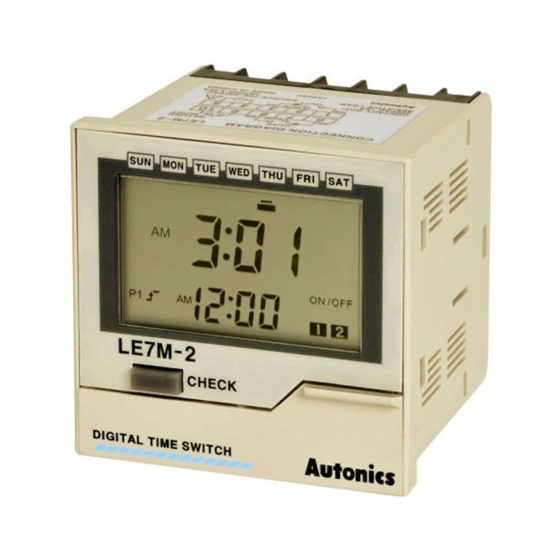

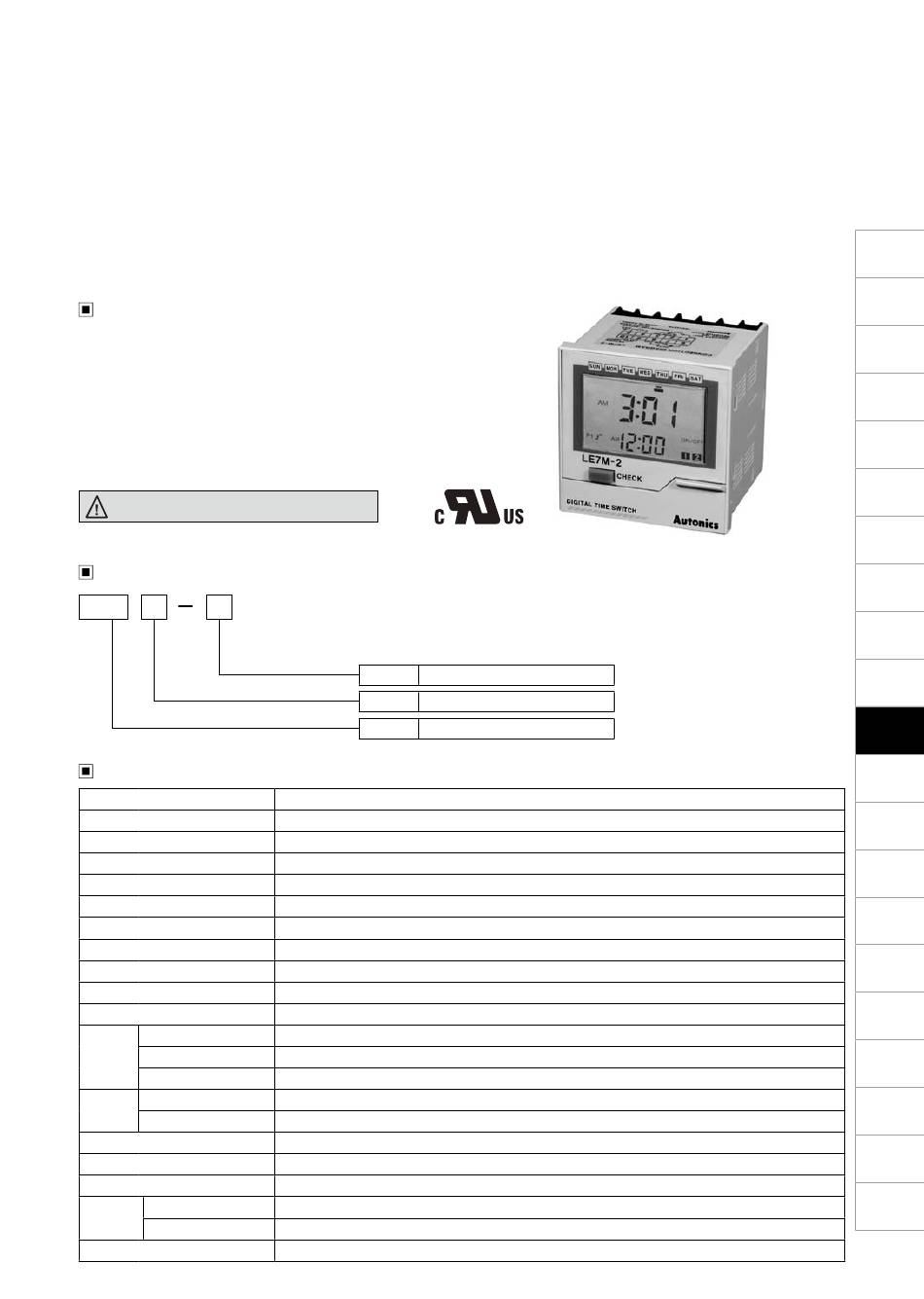

LE7M-2
W72×H72mm, Weekly/Yearly timer
Features
● Easy to check and change the program setting
● Customizable weekly or yearly unit time setting
and control by user
● Includes daylight saving time function
● Built-in 2 independent control output (relay)
● Flush and surface mounting are in one unit
● Enable to mount on DIN rail with base plate
Please read "Caution for your safety" in operation
manual before using.
Ordering information
LE7 M 2
Output
Size
Item
Specifications
Model
Power supply
Allowable voltage range
Power consumption
RETURN input
Timing program
Operation mode
Mounting
Time deviation
Temperature error
Memory protection
Contact type
Control
Contact capacity
Output
Output number
Mechanical
Relay
life cycle
Electrical
Insulation resistance
Dielectric strength
Noise strength
Ambient temperature
Environ
-ment
Ambient humidity
Unit weight
※Environment resistance is rated at no freezing or condensation.
2 2 Relay outputs
M DIN W72×H7mm
LE7 Weekly/Yearly timer
LE7M-2
100-240VAC 50/60Hz
90 to 110% of rated voltage
Max. 4.2VA
Short-circuit or open by switch or relay
48 steps for weekly, 24 steps for yearly
ON/OFF mode, cycle mode, pulse mode
Front panel, surface, DIN rail
±15sec./month(ambient temperature: 25℃) (±4sec. /week)
±0.01% ±0.05sec.(ratio by set time)
Over 5 years(at 25℃)
SPDT(Single Pole Double Throw)
250VAC 10A resistive load
Independent 2 output(1c × 2)
Min. 5,000,000 operations(switching capacity: 30 times/min)
Min. 50,000 operations<switching capacity: 20 times/min, 250VAC 10A(resistive load)>
Min. 100MΩ(at 500VDC megger)
2000VAC 50/60Hz for 1minute
±2kV the square wave noise(pulse width: 1㎲) by the noise simulator
-10 to 55℃, storage: -25 to 65℃
35 to 80%RH
Approx. 272g
Weekly/Yearly Timer
