TABLE OF CONTENTS
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.
UT200H-60-6
UT200H-90-CW
UT200H-90-CWD

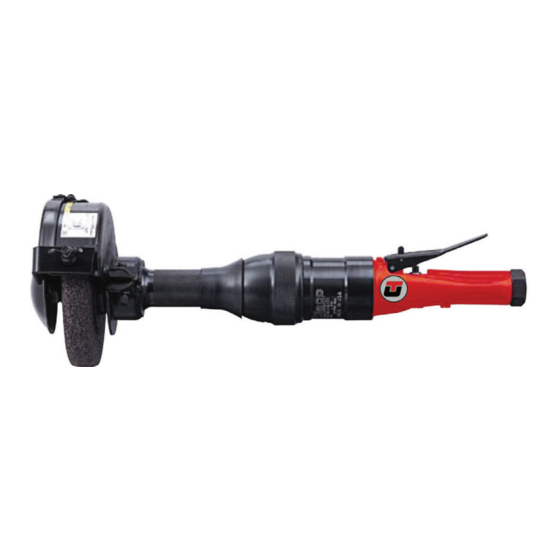

Horizontal Grinders
UT200H-90-CWE
UT200H-90-CWED
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
UT200H Series
GRINDERS
Advertisement
Table of Contents
Related Manuals for Universal Tool UT200H Series
Summary of Contents for Universal Tool UT200H Series
-
Page 1: Table Of Contents

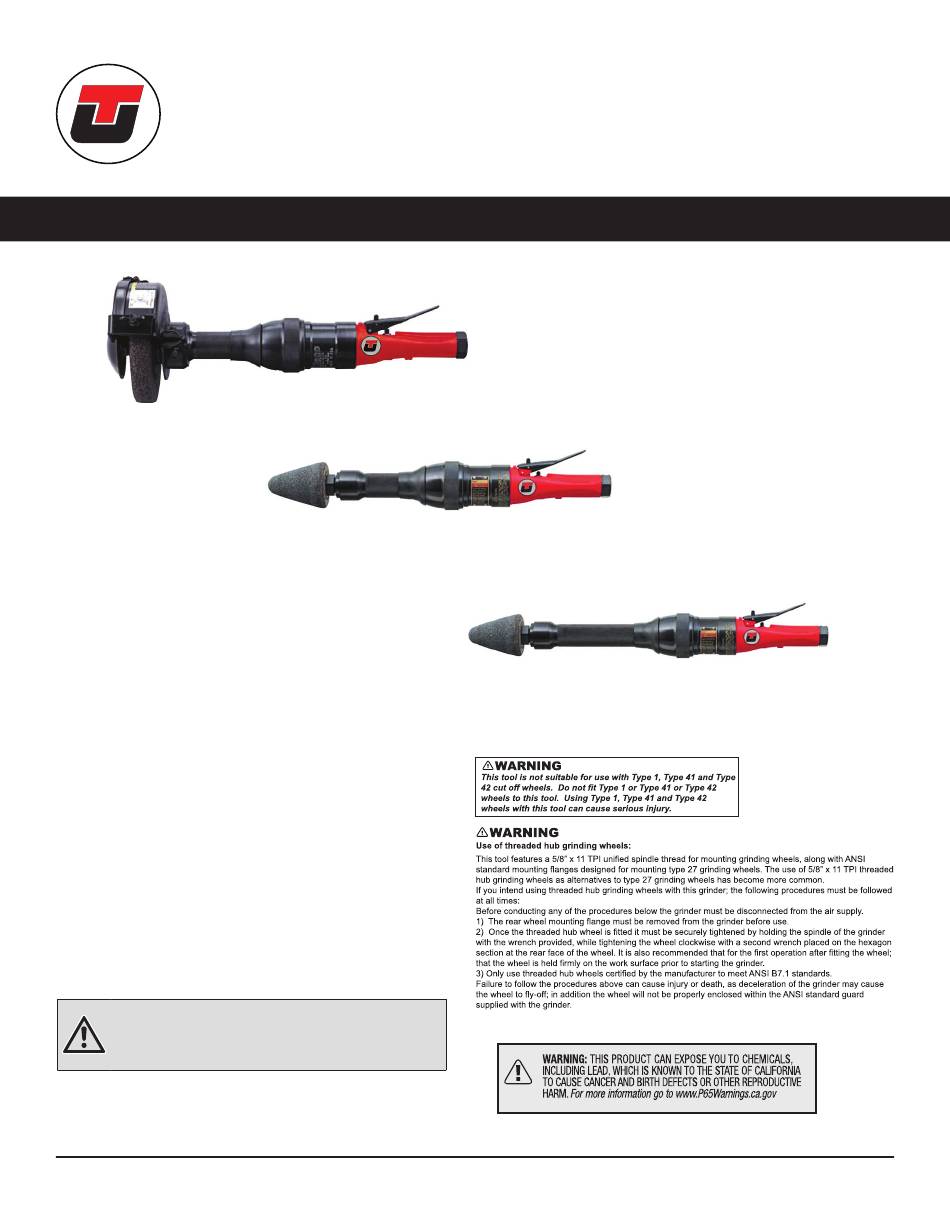

UT200H Series Universal Tool Horizontal Grinders GRINDERS ™ General Safety Information & Replacement Parts UT200H-60-6 UT200H-90-CW UT200H-90-CWD UT200H-90-CWE UT200H-90-CWED TABLE OF CONTENTS General Safety Information ......2 Air Compressor and Air Tool Safety . -
Page 2: General Safety Information
ACCESSORY HAZARDS 7.2.2.9 WORKPLACE HAZARDS 7.2.3 ADDITIONAL SAFETY INSTRUCTIONS FOR PNEUMATIC POWER TOOLS - AIR SUPPLY & CONNECTION HAZARDS 7.2.2.10 DUST AND FUME HAZARDS Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458... -
Page 3: Air Compressor And Air Tool Safety
Safety Information (continued) AIR COMPRESSOR AND AIR TOOL SAFETY WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains 1. Risk of Bursting. Do not adjust the regulator to result in output chemicals known to cause cancer, birth defects or other pressure greater than the marked maximum pressure of this air reproductive harm. -
Page 4: Installation
Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458... -
Page 5: Operation
Operation Operating the horizontal grinder Install /remove cone wheel This Horizontal Grinder is designed to operate on 90 PSIG. WARNING: Disconnect the tool from the air supply before Lower pressure (below 90 PSIG) will reduce performance servicing or changing accessories. of the tool. -
Page 6: Troubleshooting
Universal Tool freight prepaid. Please enclose your name, address and adequate proof of date of purchase and a short description of the defect. Universal Tool will, at its option, repair or replace defective tools free of charge. Repairs or replacements are warranted as described above for the remainder of the original warranty period. -
Page 7: Service Parts
UT200H-90-CW Service Parts / Exploded View Drawing UT200H-90-CWD * Governor Repair Kit Ref # Part Number Description Ref # Part Number Description 9200H6001 BOLT 9200H6033 WASHER 9200H6009-1 O-RING 9200H6034 FRONT PLATE 9200H6003 SPRING 9200H6035 BEARING 9200H6004 VALVE STEM 9200H6036 9OB-04 O-RING 9200H6037 COUPLING... - Page 8 915358-19 STOP SPANNER (19MM) * 987027SET-90 INCLUDES PARTS 987020, 9200H9019, 987023, 987024, 987026, 987025, 987027A ** C-200HKIT INCLUDES PARTS 9200H9063, 9200H9064, 9200E29-1, 9200E30, 915358-19 Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 9 Service Parts / Exploded View Drawing UT200H-60-6 * Governor Repair Kit Part Number Description Part Number Description Qty. 9200H6001 BOLT 987034 CYLINDER 9200H6009-1 O-RING 981326 9200H6003 SPRING 9200H6033 WASHER 9200H6004 VALVE STEM 9200H6034 FRONT PLATE 9OB-04 O-RING 9200H6035 BEARING 9200H6006 9200H6036 WASHER 9200H6007...
