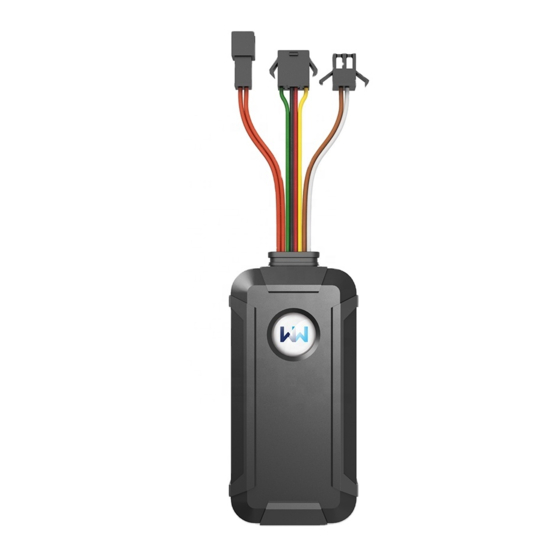

    1. Product Overview  2G/3G/4G Global Frequency Bands Supported;  Support cell ID base LBS(Location base service); Support all Global Navigation Satellite Systems (GNSS) that have been deployed,  default GPS+Beidou hybrid mode;  Support MODE, 2 real-time tracking, device enter low power mode automatically when [ACC OFF];...
  • Page 3 GPRS/EDGE: 850MHz  Module CLM920_TD3AU: Version for Australia/South America 4G LTE FDD: B5 3G UMTS/HSPA+: B5 GPRS/EDGE: 850MHz  Working Voltage: Input Voltage: 8 - 45V. Applicable for motorcycles, cars, trucks, boats etc .;  Working Current: MODE 2/21 Working current: <20mA @ 12V MODE 2 flame-out sleep current: <10mA @ 12V MODE, 21 Flame-out sleep current: <1mA @ 12V ...

  • Page 4: Instructions For Use

    3. Instructions for use 3.1. Start-up and setup process After the device is connected to the vehicle power supply, the recommended installation flowchart is as follows: Open the A case waterproof cover Insert the SIM card in the direction shown, apply power supply to the device, and turn the key to ON position.

  • Page 5: Connection Diagram

    3.2 Connection Diagram Figure1. Connection Diagram Serial Description Colour number Can be connected to vehicles with working Equipment positive/V + voltage of 8 ~ 36V, max 45V Ignition test/ACC White Vehicle ignition detection line, active high Relay or speaker driver line, MAX 1A @ Relay driver/RELAY Yellow 3-45V...

  • Page 6: Application Note About Sos And Recording Function

    5/6 line can be used as an external MIC Microphone positive/MIC + Brown [standard function] or NTC temperature detection [optional function] Microphone Gray Equipment ground negative/MIC-/GND 7/8 line can be used as SOS line access Serial Receive/RXD Orange [standard function] Or 6/7/8 line for UART communication, compatible with 3.3V/5.0V UART [optional Serial transmission/TXD...

  • Page 7: Mode 2 And Mode 21 Operating Modes

    ACCON1: ACC ON voltage, default 132 ACCOFF1: ACC OFF voltage, default 128 FCG = SET1, ACCON1, ACCOFF1, A # Automatic ACC detection 1. Enable the function of judging ACC status configuration for 12V based on voltage (default) battery-powered vehicles such as cars 0, forbidden and motorcycles.

  • Page 8: Vehicle Guard Alarm And Low Battery Alarm

    1. When ACC OFF: Enter this mode automatically, GPS, 4G will be turned off at this time Module and MCU goes to sleep. 2. When ACC ON: automatically exit this mode Device intelligent reporting and turn on GPS, 4G instructions: Module, MCU wakes up.

  • Page 9: Device Photosensitive Alarm Description

    3.8 Device Photosensitive Alarm Description 1). Place the device in a dark place for more than 60S. When the mobile device sees light for more than 1S, it will trigger a photosensitive alarm. L1 light sensitive: Default is on; L0 light sensitive ALARMMODE,L1/L0 is off 3.9 Vehicle collision alarm parameter setting instructions...
  • Page 10 When GPSGSE, 1 #, the following settings about angle increment and speed increment are valid A: Sharp turn angle: Degree B: Average turn speed: KM CARSET, A, B, C, D # instructions C: Rapid acceleration increment: KM D: Rapid deceleration reduction: KM, default: 75,20,8,18 When GPSGSE, 0 #, the following settings about Gsensor are valid Used to set the sensitivity of device acceleration...

  • Page 11: About Time Zone Settings And Related Instructions

    3.11 About time zone settings and related instructions Set time zone: A: E or W B: 0 ~ 12 time zone C: half GMT,<A>,<B>,<C> time zone Example: GMT, E, 8 # Associated time zone: The reported data time is USELOCALTZ,1 synchronized to the set time zone Non-associated time zone: The default reported USELOCALTZ,0...

  • Page 12: Common Setting Instructions

    3.15 Common Setting Instructions Set server command. SERVER,1,<domain/ip>,<port> <domain/ip>: server domain or IP <port>: server port Set language. 1: Chinese LANG,<language> 0: English Default: English Set the center number: PARAM # can check the CENTER,A,<TelNumber> center number information, which is use for some remote control.

  • Page 13: Cautions

    5. Cautions 1) Do not short circuit. 2) Do not put in fire or heat. 3) It is strictly prohibited for users to assemble or disassemble the battery by themselves. 4) Do not use outside the allowed temperature range. 5) It is strictly forbidden to knock, disassemble or disassemble this product for repair or modification.
